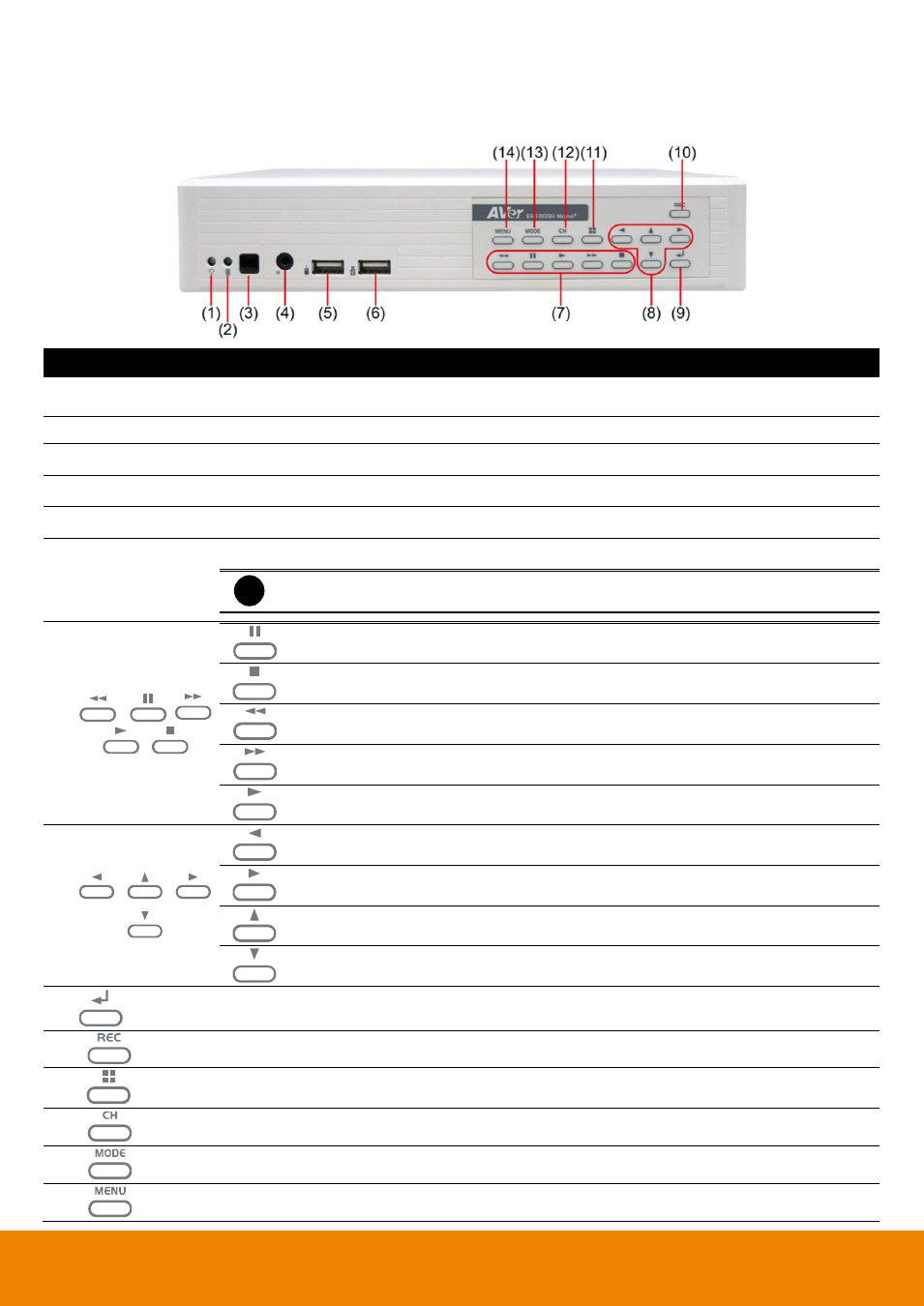

1.2.3 EH1116H-4 Nano
+
-T
Name Function
(1) System Power
indicator
System power status indicators. Indicate running state of system. Lights when the system is
running.
(2) Record indicator When DVR system is recording, the light will keep flashing.
(3) IR Sensor Receive signal from the remote control to operate the DVR unit
(4) IR Sensor port For extended IR sensor cable(optional)
(5) USB port(mouse) For USB mouse connection.
(6) USB port
F or connecting USB device, ex: USB pen drive, external hard disk, mouse…and so on.
i
The USB storage device must be in FAT32 format.
(7)
Temporarily freeze the video playback.
Stop video playback. When user press stop button, the DVR will switch back to
preview mode.
Wind back the playback video.
Fast play the video playback at the speed of 2x, 4x, 8x,16x, 32x, or 64x.
To play the recorded video.
(8)
Move the mouse cursor to left.
Move the mouse cursor to right.
Move the mouse cursor up.
Move the mouse cursor down.
(9) Press it to enter or make a selection.
(10) Start to recording.
(11)
Switch to different screen display mode (single, 4-split screen, 9-split screen, and 7+1 split
screen).
(12) Switch a channel by channel.
(13) Switch to playback mode. Press again can switch back to preview mode.
(14) To call out setup menu.
