18
1.4.2.2 EH1116H-4
+
i - All connected devices have its own power supply is necessary.
- Up to 5 megapixels for one channel, and a total of 8 megapixels for all 4 IP camera channels in
H.264/MPEG4/MJPEG format
- EH1116H-4
+
supports IP camera in first 4 channels.

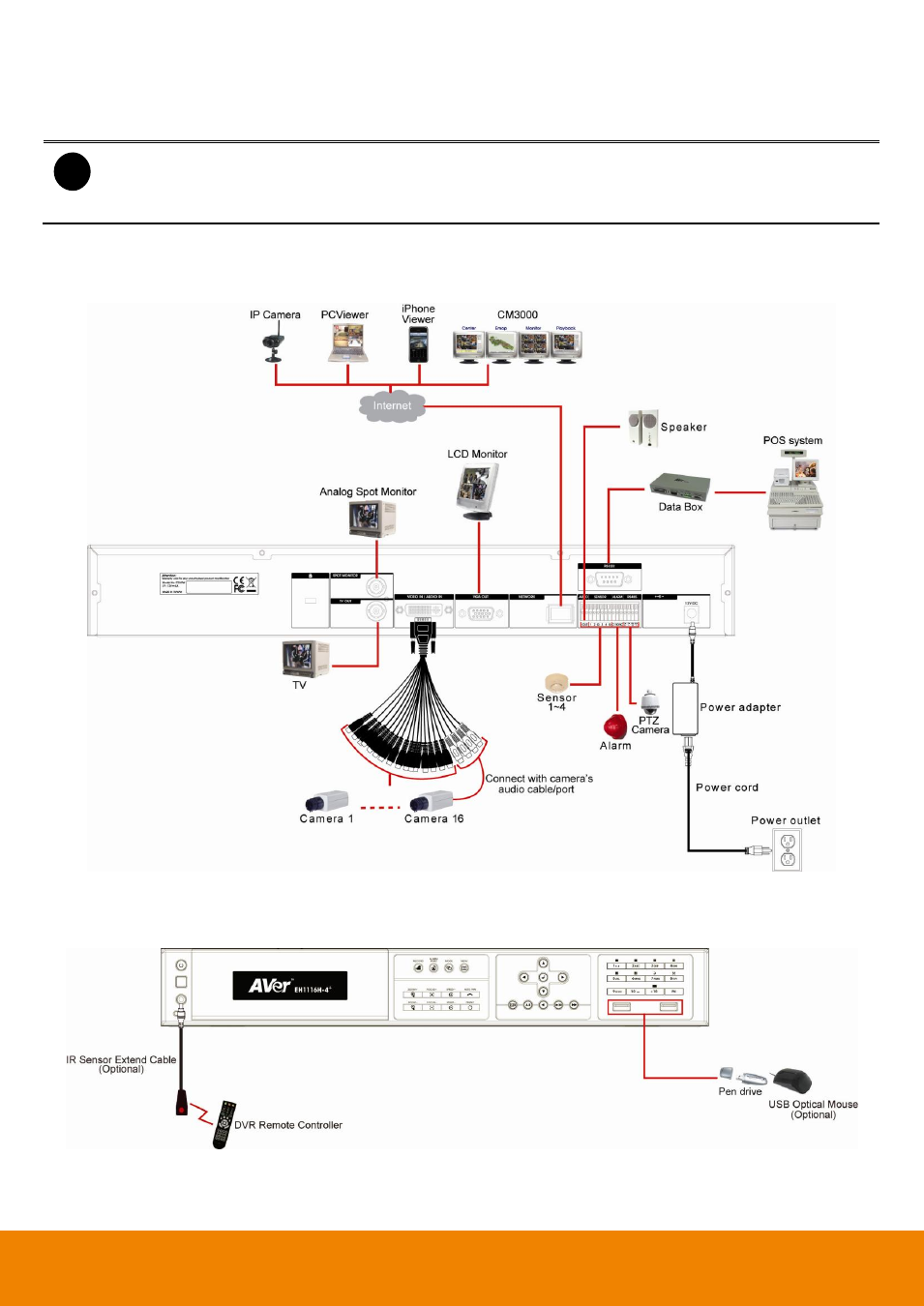

The back panel of the DVR unit, user can connect up to 16 cameras in combination of analog and IP camera.
The DVR unit also can connect 4 sensor devices, 1 alarm devices, and output video to a LCD monitor.
Follow the illustration below to make the connection:
For backup recorded video, plugging the pen drive or external hard disk through USB port that are located at
front panel of DVR unit, and then, use the bundled software enables user to transfer, playback and segment the
video. Follow the illustration below to make the connection:
