8

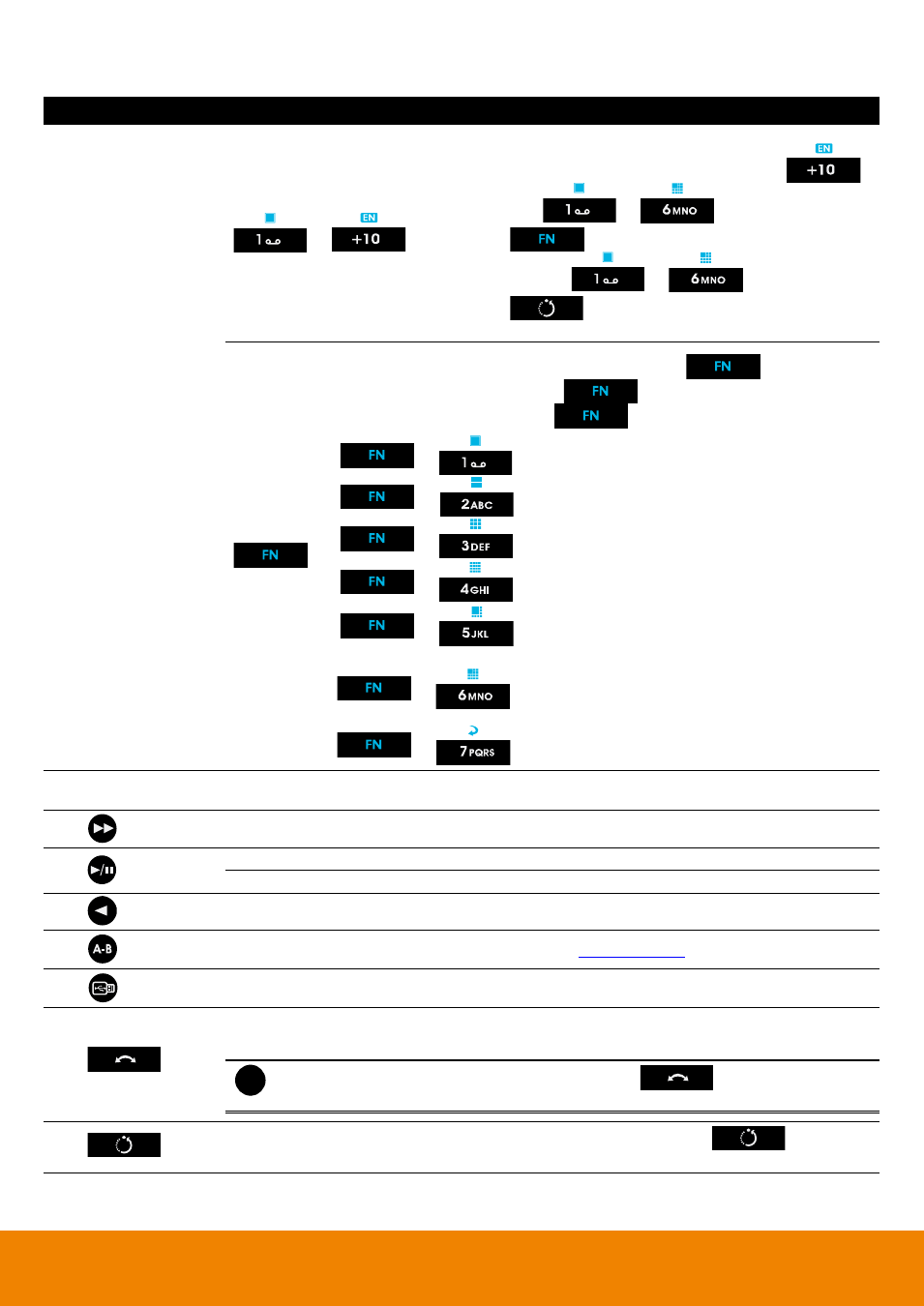

Name
Function
(11) Number buttons
~
-
Channel camera selection number in playback and
preview mode. For the channel over 10, press
,
then press
~
-
Press
button can switch to different screen
display modes (
~
).
-
Press
and number button, to set the preset
position in the PTZ mode.
A functional key for multiple system control. Press
to enable
multiple function modes and the
button will
light up blue. To exit
multiple function modes, press
again.
+
: Switch to single screen display mode
+
: Switch to QUAD display mode
+
: Switch to 9 spilt screen display mode
+
: Switch to 16 split screen display mode
+
: Switch to one single and 7 + 1 spilt screen display
mode
+
: Switch to one single and 12+ 1 spilt screen display
mode
+
: Enable/disable channel auto switch cycle
(12) USB 2.0 port
2 x USB 2.0 ports for connecting USB device, ex: USB pen drive, external hard disk,
mouse…and so on.
(13)
To playback video at faster speed
(14)
To pause playback
To start playback
(15)
To rewind the recorded video
(16)
Set a video segment to playback repeat(see also
(17)
To backup recorded video file to USB storage device(pen drive or external hard disk) and
DVD-ROM.
(18)
Operate the PTZ cameras automatically based on the selected camera group preset position
number.
i
Without setup preset position, the preset button (
) will not be functional
when press it..
(19)
Adjust the PTZ lens to the position that user wants. And then, press
with
number button to setup the PTZ camera preset position.
