CHAPTER 3
(11) IP Camera Resolution Mode
i
IP camera resolution mode is related to Camera Setting.
- Fixed Mode([email protected] H.264)
The DVR system supports 4CH IP camera at resolution 1.3MP for each channel.
- Flexible Mode(Total 8MP to allocate)
DVR system supports resolution 8MP total for 4 IP camera channels (in any code type
– H.264, MPEG4,
MJPEG). A channel maximum supported resolution value is 5MP. When user select the Flexible Mode, the
resolution value of IP camera is displayed at Camera Setting interface (see also
Chapter 3.2.2
).
(12) Login
Enable the conditions in Login section you want the system to automatically carry out.
- Auto Login after system boot up
Execute the DVR when the operating system is started.
- Auto Record after system boot up
Automatically start video recording when the DVR is executed.
- Auto start Network after system boot up
Automatically start network connection when the DVR is executed.
- Default user
Automatically log in to the selected default user when the DVR is executed.

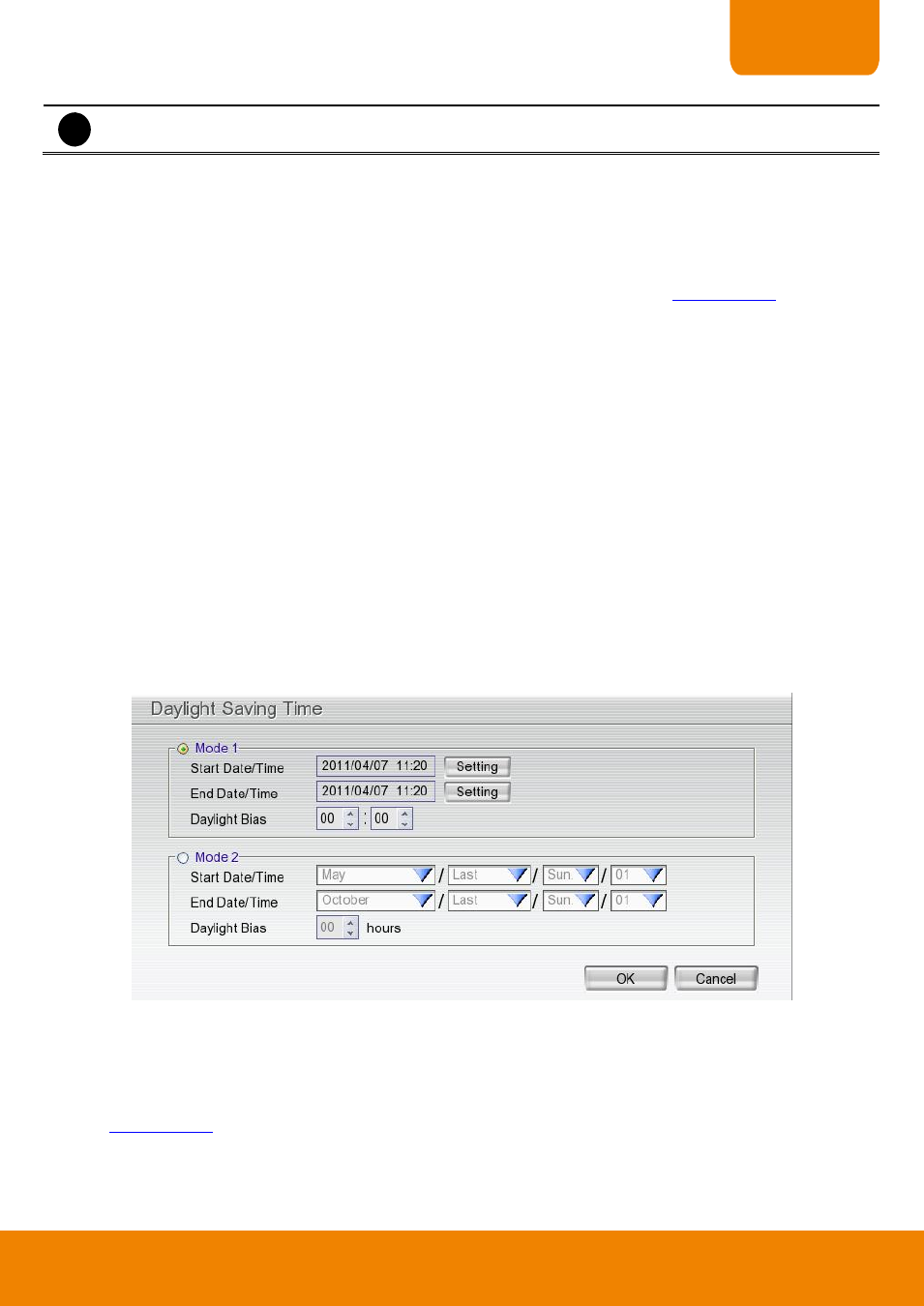

(13) Date and Time Setting
Mark Daylight Saving Time to enable daylight saving function.
- Daylight Saving Time: Click Setting to setup Start and End Date/Time. User can depends on daylight
saving time mode in your country to select Mode 1 or Mode 2. Mode 1 is setting up specific start date/time
and end date/time. Mode 2 is setting up fixed day of month in every year for start and end date/time.
- Daylight Bias: Assign a time that it is for daylight saving time offset in your time zone. For example: if the
time zone is in U.S. Eastern, the time offset is 1 hour.
(14) Firmware
Product Version: Upgrading the firmware of DVR system and IP camera patch file. Please refer to
IPCam Module: Update patch file of IP camera.
1. Save the firmware on root directory of USB pen drive. And then, plug USB pen drive to DVR server.
2. Click Update button, a IPCam Module Firmware Upgrade window is displayed.
