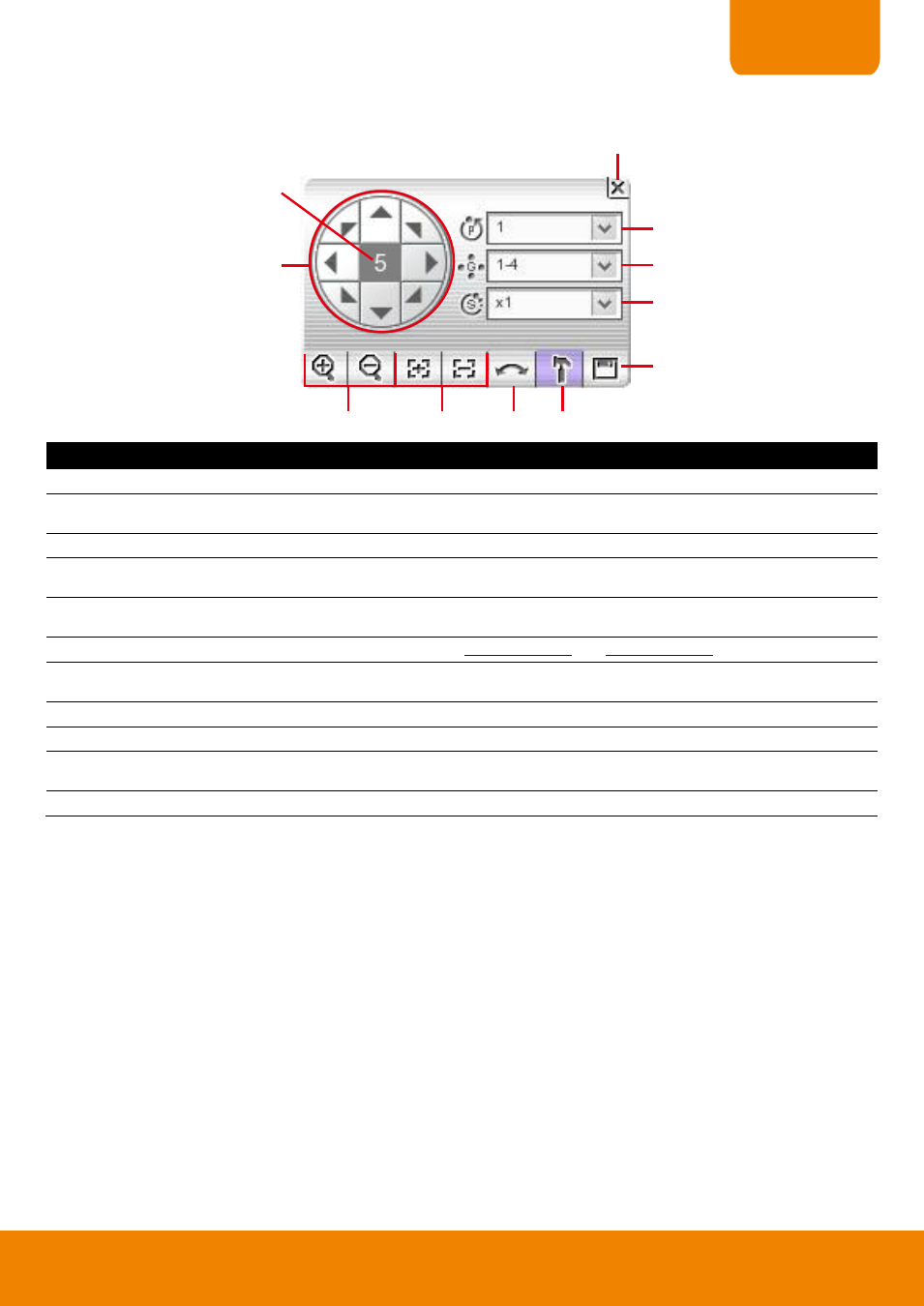

2.2.3 Familiarizing the Buttons in PTZ Camera Controller
(1)
(2)
(3)
(4)
(5)
(6) (7) (8) (9)
(10)
(11)
Name Function
(1) Close Exit PTZ camera controller.
(2) Camera preset
position number
Move the PTZ camera to the preset point.
(3) Group AutoPan Select to automatically operate PTZ camera in group.
(4) Direction button
moving speed
Adjust the moving speed of the PTZ camera lens. This speed will apply to the (10) Direction
buttons
’ moving speed only.
(5) Save Camera
preset position
Save the PTZ camera preset position number. Select the camera and click the preset position
number and save it.
(6) Setup Configure PTZ cameras.(see also Chapter 2.2.3.1 and Chapter 2.2.3.2 )
(7) AutoPan Operate the PTZ cameras automatically based on the selected camera group preset position
number. User needs to select the (3) Group AutoPan, then, click (7)Auto Pan button.
(8) Focus +/- Adjust the focus manually to produce clear image.
(9) Zoom +/- Zoom in and out the image.
(10) Direction buttons
Adjust and position the focal point of the PTZ camera. The direction buttons is depended on
the PTZ camera has supported.
(11) Camera ID pane Display the PTZ camera number that is being operated.
