126

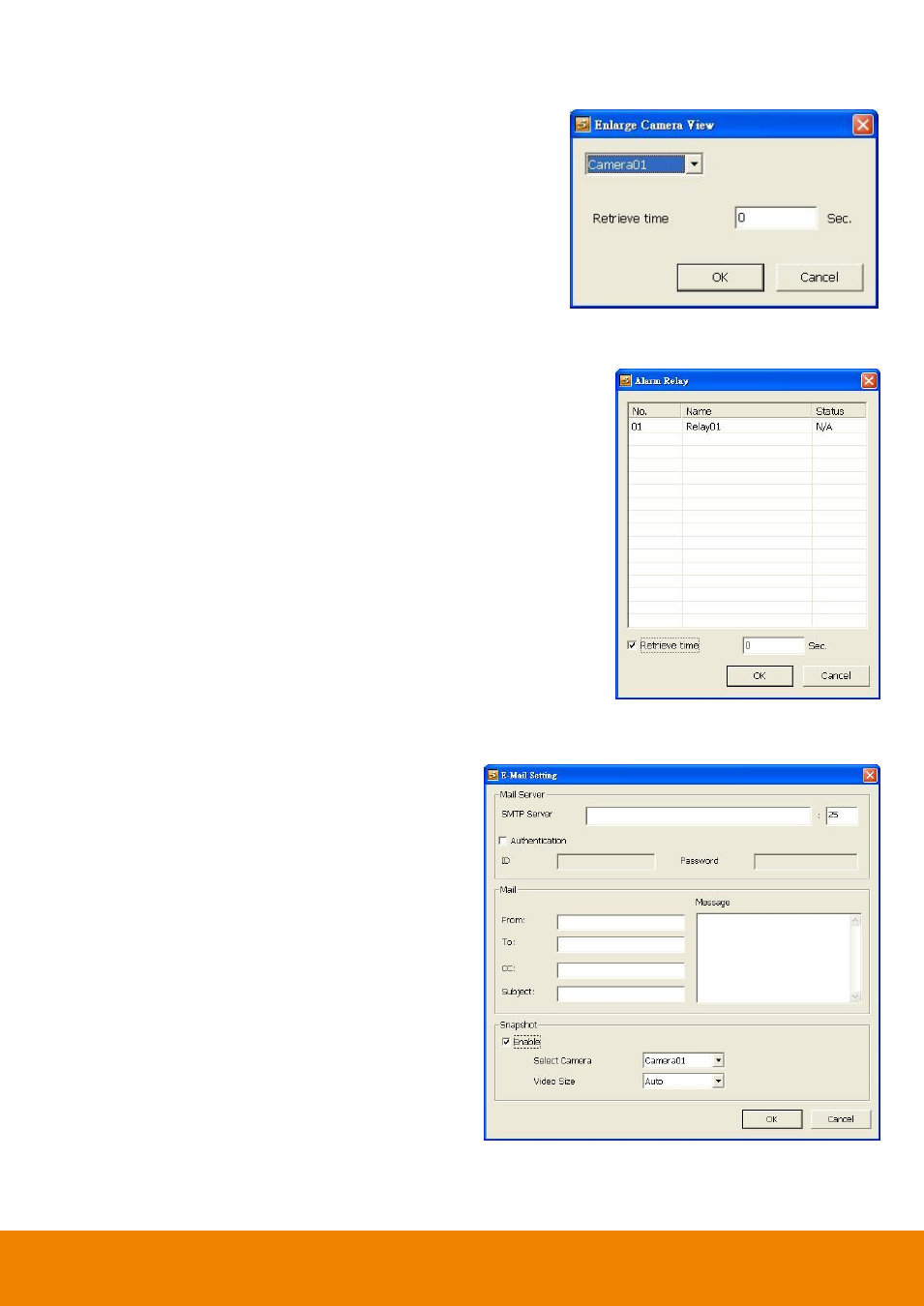

- Enlarge Camera View
Switch to only display video in Preview mode from where the
alarm is activated.
a. Select the camera from drop down list to specify which
camera video to be enlarged on screen when the alarm is
triggered.
b. Retrieve time: set the waiting duration before system
switching back to original Preview mode. If the retrieve time
is un-mark, the alarm video will keep enlarging until user
switch back to Preview mode manually. The retrieve time range is 0~ 600 seconds.
- Relay Output
Set to enable/disable the relay operation when the alarm is activated
and to extend additional time in second before it stops the relay
operation.
1. Beside the Relay Output check box, click Detail.
2. In the Alarm Relay dialog box, select from the available relay list
and in the ON column, set to enable/disable the relay operation
when the alarm is activated.
3. In the Retrieve time check box, you may enable/disable to
extend the relay operation time and set the duration in second.
4. Click OK to exit and accept the setting and Cancel to exit without
saving the setting.
- Send E-mail
Send an electronic text message. Beside the Send Email check box, click Detail.
In the E-mail Setting dialog box, click OK to exit
and save the setting and Cancel to exit without
saving the setting.
 Mail Server
Enter the SMTP Server and port. If your e-mail
system requires user identification, enable
Authentication check box and enter ID and
Password.
 Mail
Fill the mailing information.

From: Enter the sender e-mail address.
 To and CC: Enter the recipient email
address and separate it with comma or a
semicolon (;).
 Subject: Enter the message title.
 Message: Type the message.
