12

1.4

Setting Up the DVR Unit

1.4.1 Installing the Hard Disk

1.4.1.1

EH1116H-4 Nano/EH1116H-4 Nano

+

/EH116H-4 Nano

+

-T

i

The external USB hard disk only supports on file backup. Please do not use the external USB hard disk for
recording purpose.

User can install 1 SATA hard disks inside the DVR unit.

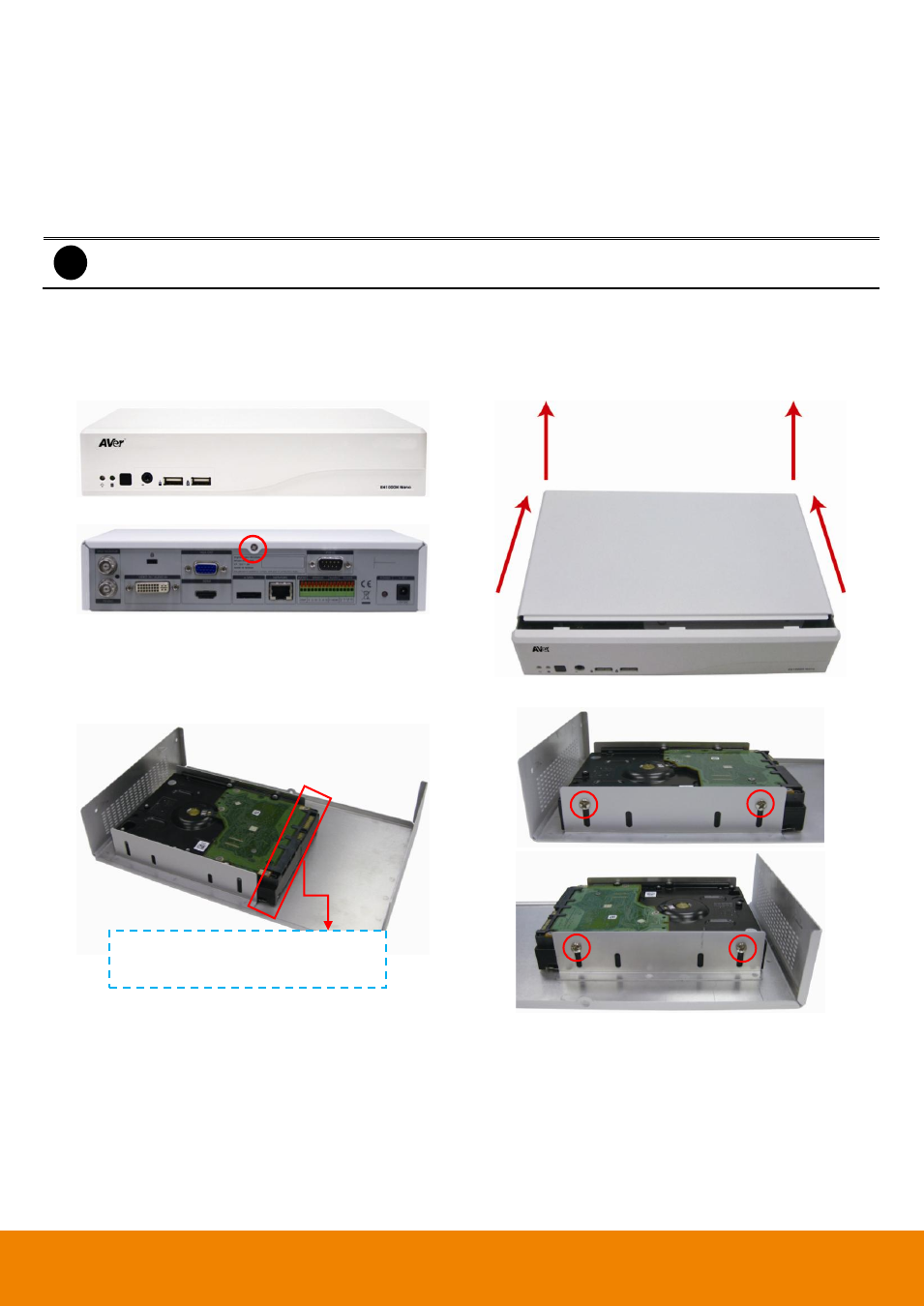

Follow the illustrated instructions below to install the hard disk:

1. Loosen all screws(2 sides and rear side)

2. Push the cover backward and lift. The cover is a little bit

tight, please be carefully the hands.

3. Turn the cover over and place the SATA hard disk (face

down) inside the HDD holder.

4. Screw the hard disk(both side)

Place the hard disk face down and
connector interface of hard disk in this
direction.
