Chapter 3 The SCSI Interface
External
SCSI Connector
Internal
SCSI Connector,
1^'
'll .
»Dtp Switches . ■ » '
CaniMi.bai)
:::
1 ^
j-i- Icrmination Kcsistuis
Jumper Block JP3 Jumper Block JP.’
» V i
i.lLlil 1 . •
Card Edge
Connector
mm
rnmmmmmim

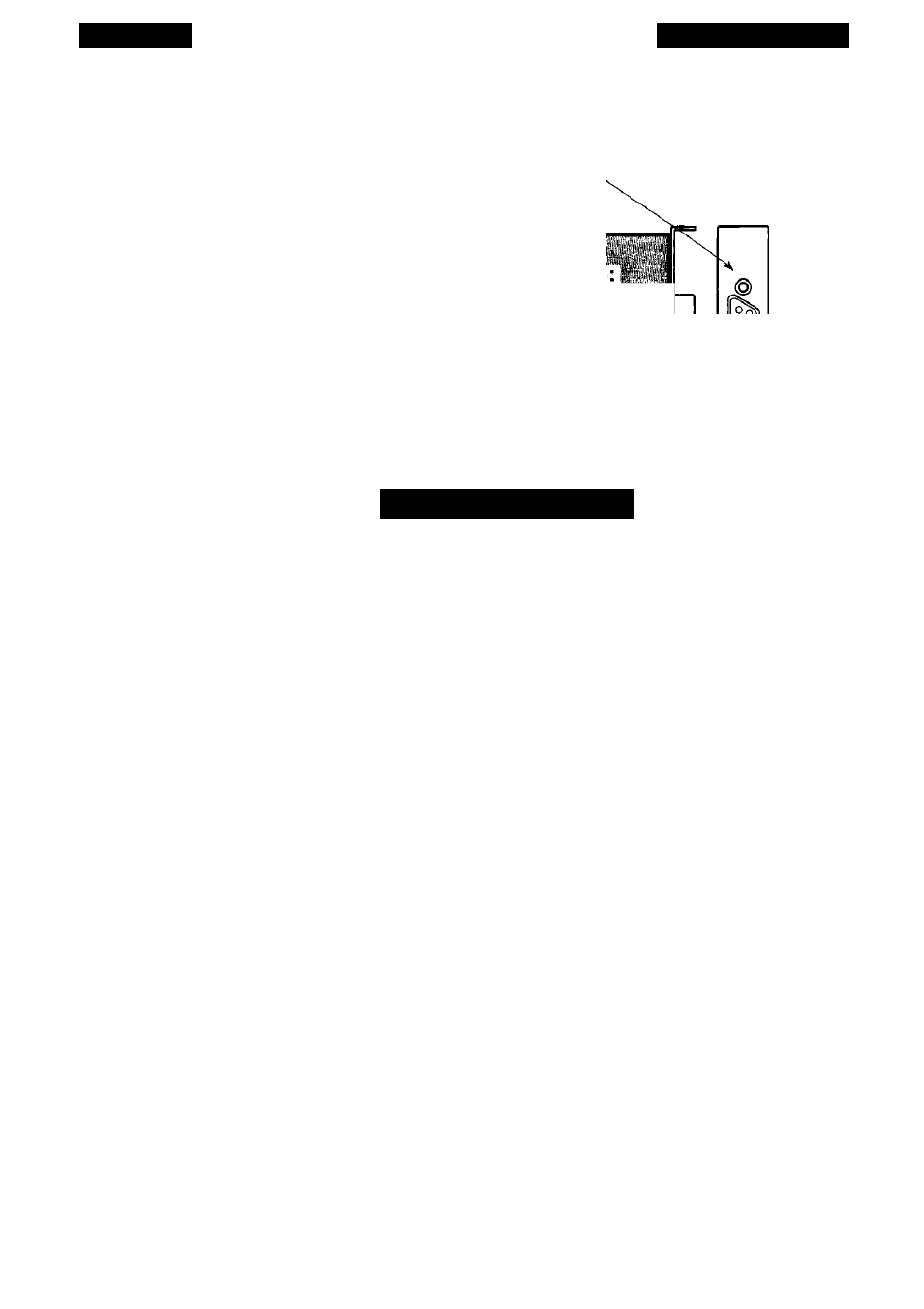

Figure 3.11 The installation-relevant components of the SCSI controller card
provided with Coolscan.
ns Do not attempt to insert this card into a microchannel bus slot. If you need a
microchannel bus card, the T-228 is the equivalent to the T-130.
The card provided is completely compatible with Coolscan and should be easy to
install. If however, you are uncomfortable handling computer components, we recom­
mend enlisting the services of a qualified computer service technician.
For most installations, the factory default settings will not have to be changed,
therefore requiring no changing of the card’s DIP switches.
The card has two SCSI connectors, as shown in Figure 3.11. The dual in-line
connector, labeled “Jl,” is used to connect the LS-10, while the 25-pin DB25 connector
on the rear panel of the card is used to connect the LS-IOE.
