Rear panel
Table 1-3. Rear panel component descriptions
Number Component Description
1 Power connector The library connects to a 110/220 volt ac power
supply.
2 Power switch The library is powered ON when the power supply
switch on the rear panel is ON (|). The library has no
independent power switch on the front panel.
3 SAS host interface
connector
Serial-attached SCSI host interface cable connection.
The Ultrium 4, 5, and 6 SAS drives use the SFF-8088
connection at the drive end and SFF-8088 or SFF-8470
at the host adapter end.
4 Ethernet port This port is used to connect the library to a network.
5 Accessor locking screw The accessor locking screw is used to lock the
accessor in place during transportation.
Important:
Remove the accessor locking screw before
the library is powered ON.
6 Air vent These vents allow air to escape from the power
supply and tape drive sled.
4 5 1 2 6
3
a29z0003

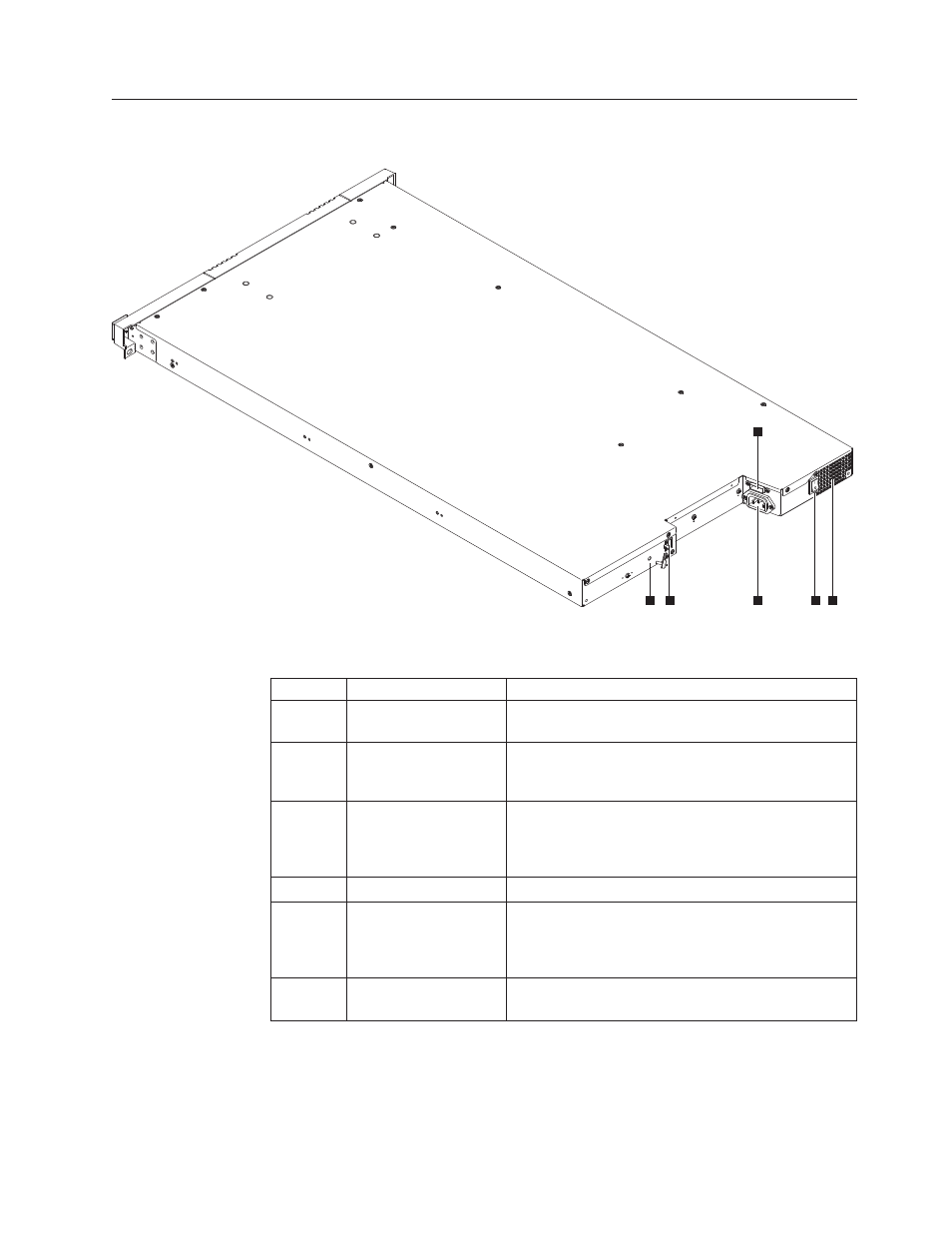

Figure 1-5. Rear panel components
Chapter 1. Product description 1-5
