3. Place the screws 11 into the left and right brackets.
4. Attach the left 3 and right 4 (Figure 3-2 on page 3-4) front brackets to the
front of the library chassis with 2 flat-head screws 8 on each side. Use the
top two screw holes on each side. The flange of each bracket with the inserted
screws ( 11 ) fits into the cutout on each side of the bezel.
a29z0015

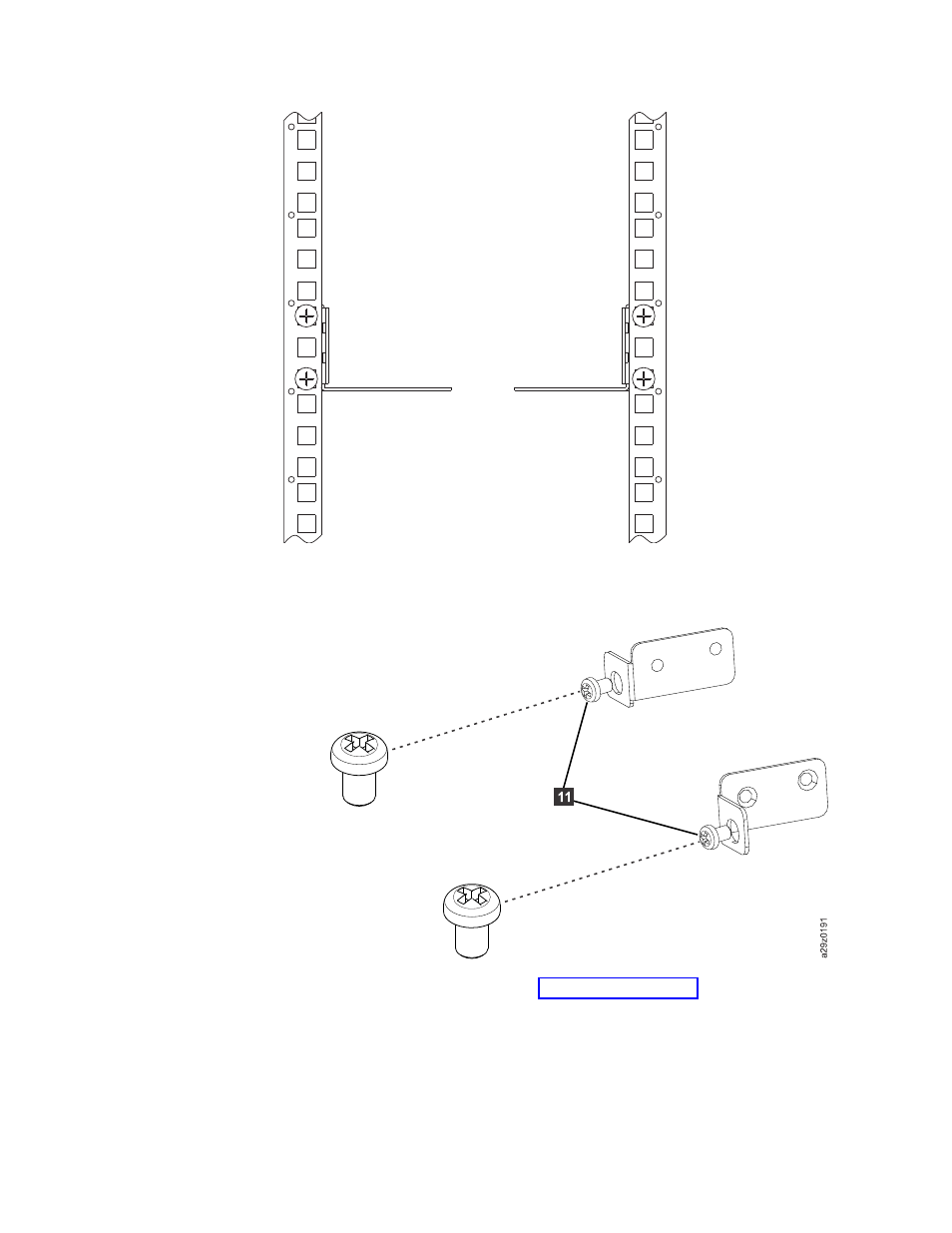

Figure 3-1. Rack mount screw locations for front and rear vertical rails
Chapter 3. Installation and configuration 3-3
|
|
|
|
|
|
|
