7. Install the rail assemblies into the rack (Figure 3-5 on page 3-6). Ensure the 3
holes in the front of the unit align with the 1U space marked on the vertical
rails in Step 2. Secure the rails to the rack with 4 flat-head screws 9 on each
side of the rack. Use the top and bottom screw locations on the front and rear
of the rack rail (Figure 3-1 on page 3-3)).
a29z0018
7

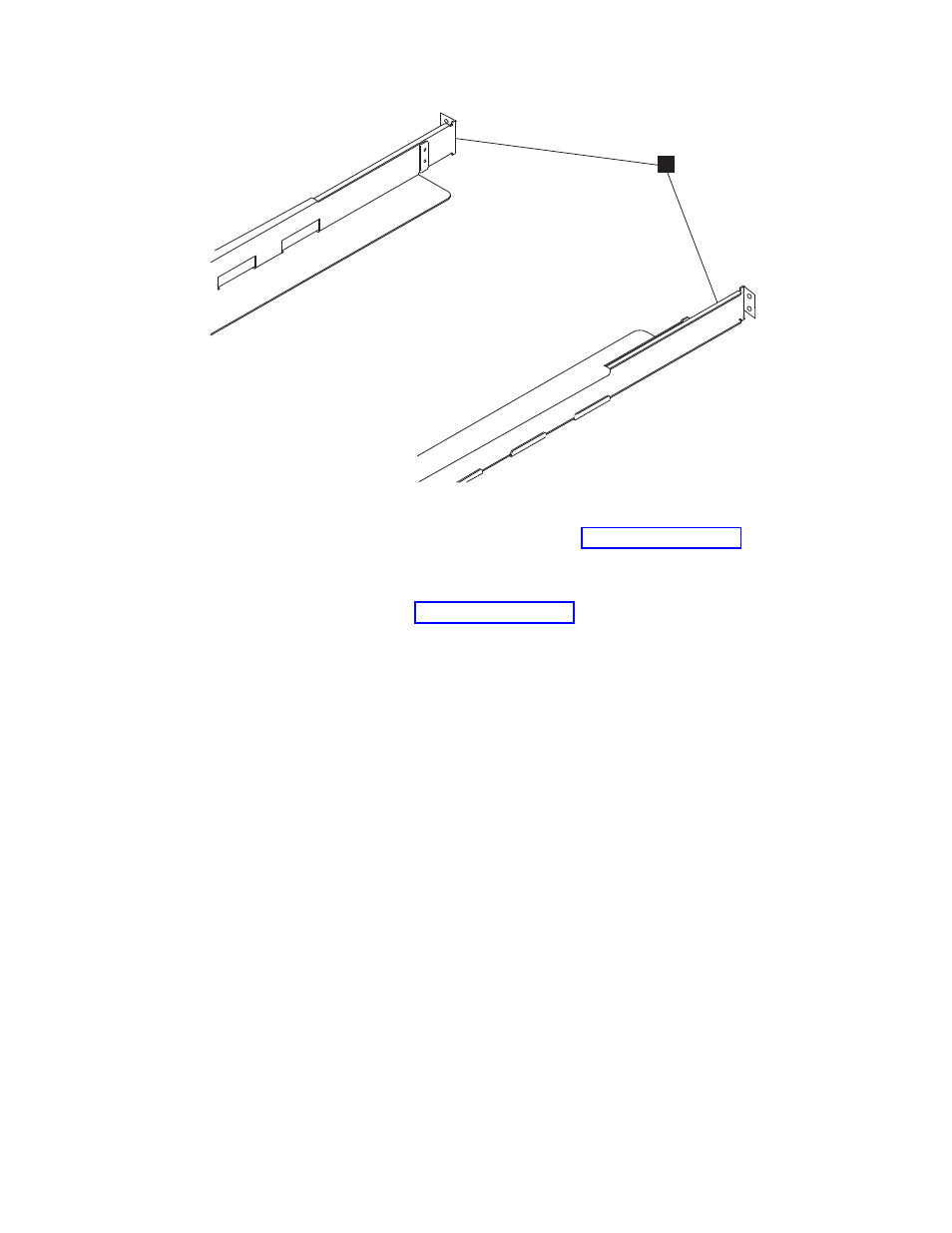

Figure 3-4. Creating the rail assemblies
Chapter 3. Installation and configuration 3-5
|
|
