5. Attach the left 1 and right 2 rear brackets to the left 5 and right 6
front rails with 2 round-head screws 10 on each side (Figure 3-3).
Important: Do NOT tighten these screws completely.
6. Slide in the rear rails 7 from back to front, to create the rail assemblies.
Ensure that the screw holes face outwards (Figure 3-4 on page 3-5).
a29z0185
3
8
4
8
11

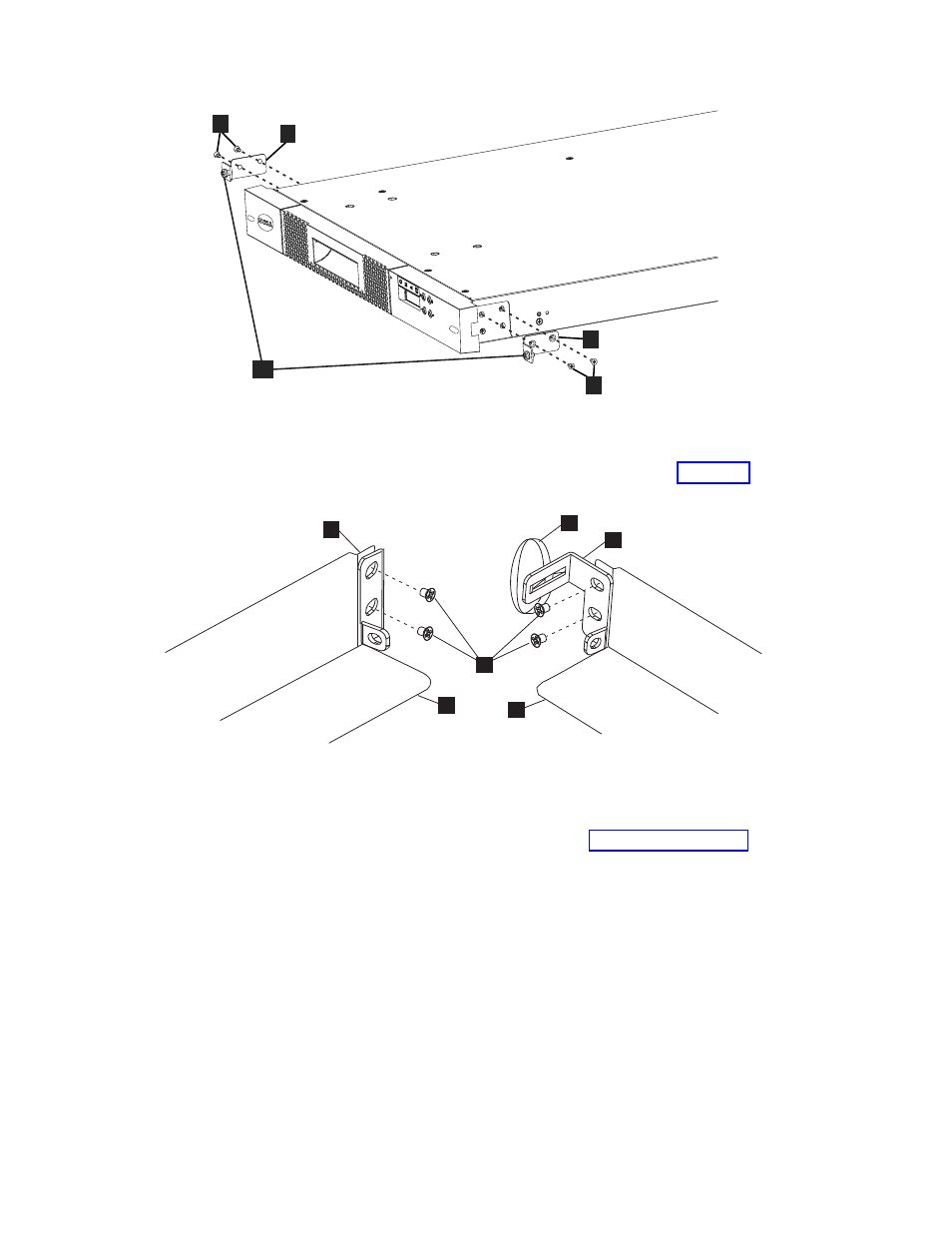

Figure 3-2. Attaching the front brackets to the library chassis
a29z0019
5
6
10
1
2
12
Figure 3-3. Attaching the rear brackets to the rails
3-4 Dell PowerVault TL1000 Tape Autoloader User's Guide
|
|
|
|
