Monitoring the library

The system summary

Select Monitor Library > System Summary to display a summary of the status of
the tape drive and the library, and the current configuration of the library,
comprising:

v

Library name

v

Library status (OK, Degraded, or Failed). It displays Not Ready while
initializing.

v

Drive status (OK, Degraded, or Failed). It displays Empty, Loading, or Ejected
when the drive is empty, loading media, or media is ejected or unloaded in the
drive. It displays Cleaning when the cleaning cartridge is in the drive, and
Initializing while initializing.

v

I/O Station status (Open/Closed, when I/O Station is enabled)

v

Operator Panel LED indicators

a29z019

3

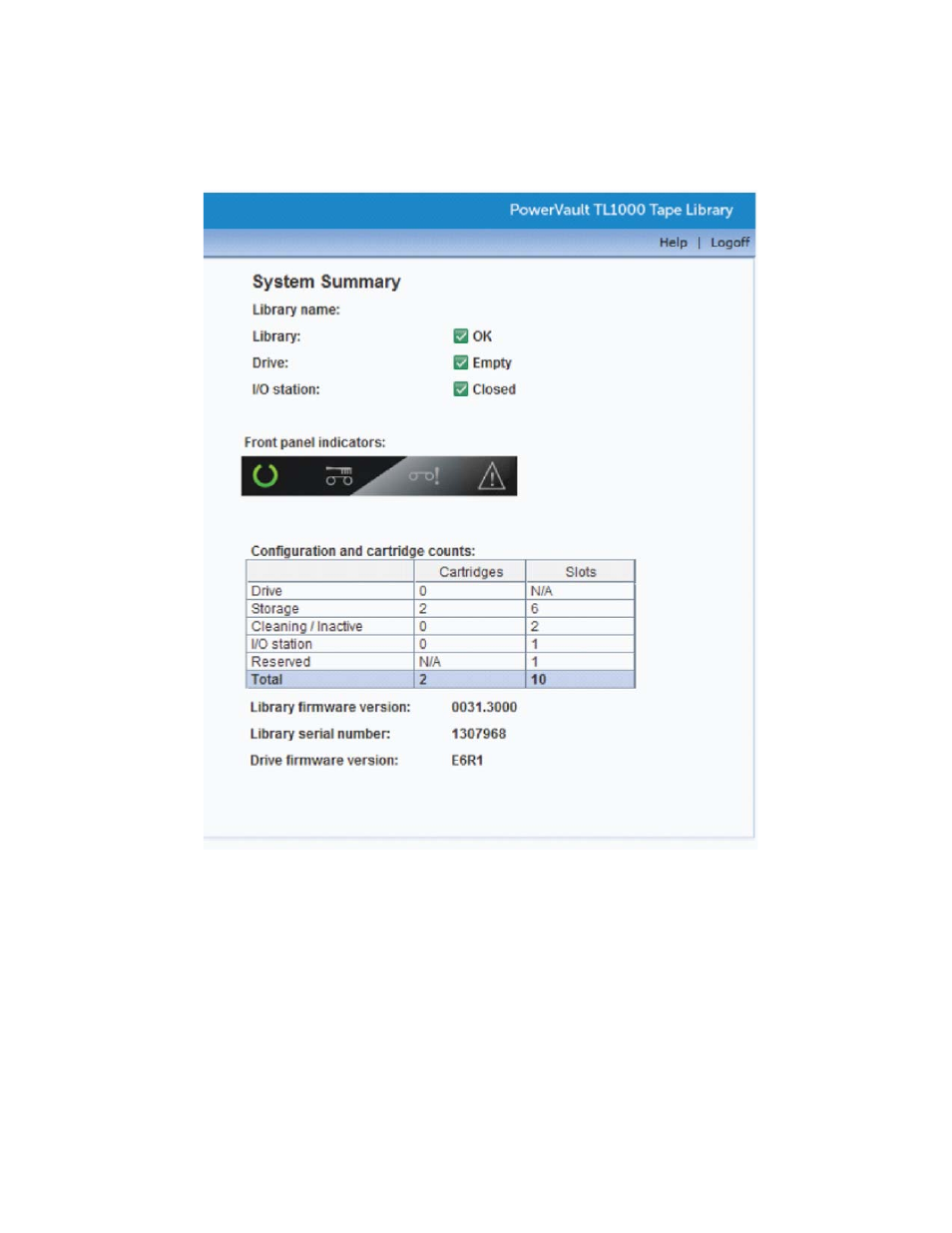

Figure 4-28. System Summary screen

Chapter 4. Operations

4-17
