– Prefix Length - Decimal value 0 - 128 indicating the number of contiguous,
high-order bits comprising the network portion of the address.
– Gateway - Allows access outside the local network.
v DNS setting - Select Use DNS to use a domain name server. The DNS server, if
entered, allows the encryption, date and time, and notifications IP addresses to
be specified with host names instead of numerical IP addresses.
– DNS IP address - Sets the IP address of the DNS server.
Click Submit to transfer the settings to the library. A dialog message is displayed
when the settings are updated successfully.
Click Refresh to read the current settings from the library.
Configuring encryption settings
Select Configure Library > Encryption to configure an encryption method for data
that is stored on tape cartridges.
Note: Application Managed Encryption (AME) does not require a key.
a29z0199

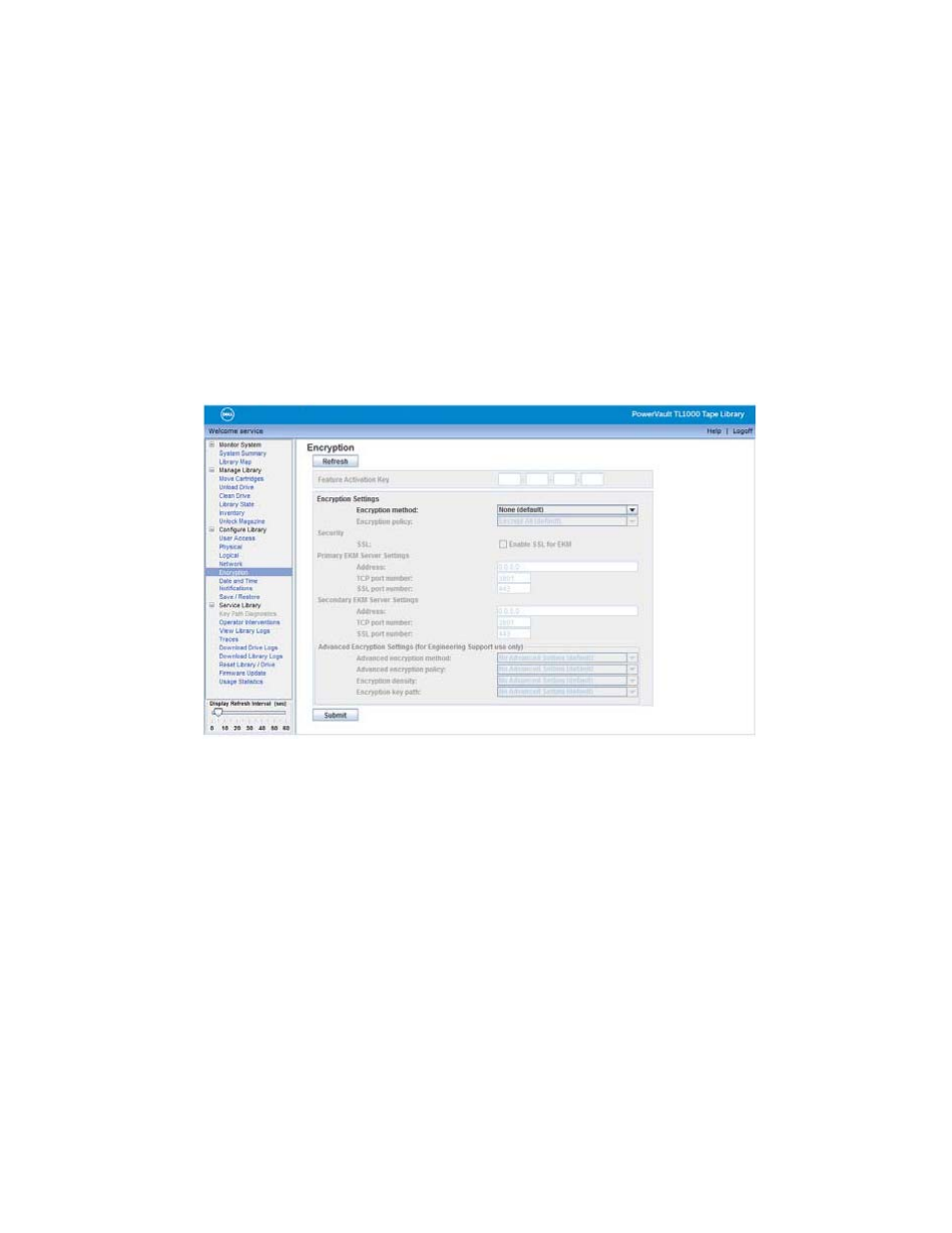

Figure 4-41. Encryption settings screen
Chapter 4. Operations 4-27
