Appendix B
DTAM Micro Cable Diagrams
B–4
Catalog No. 2707-NC10

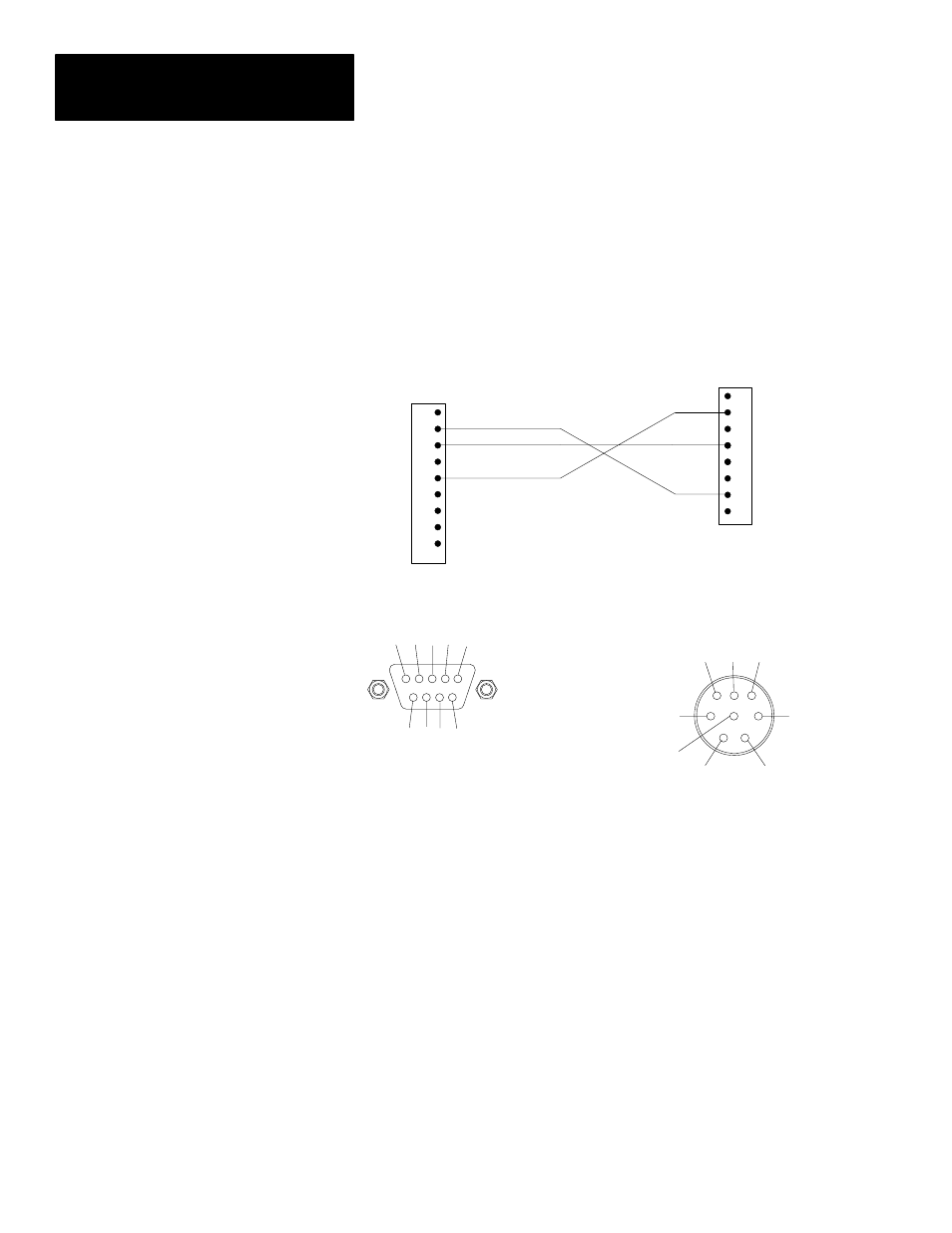

Use the RS-232 Communications cable (Catalog No. 2707-NC10) to connect
the DTAM Micro to the MicroLogix 1000 for run-time operation. The
length of this cable is 2 meters.
Data In
Data Out
Signal Ground
1
2
3
4
5
1
2
3
4
5
9-Pin Male D Connector
Connects to MicroLogix 1000
Communications Port
8-Pin Male C DIN Right Angle Connector
6
7
8
Data In (RXD)
Data Out (TXD)
5 4 3 2 1
9 8 7 6
7 8 6
1 2
5 3
4
DC Com
6
7
8
9
DTAM Micro RS-232
Communications Port
