Chapter 5
Running Applications
5–6

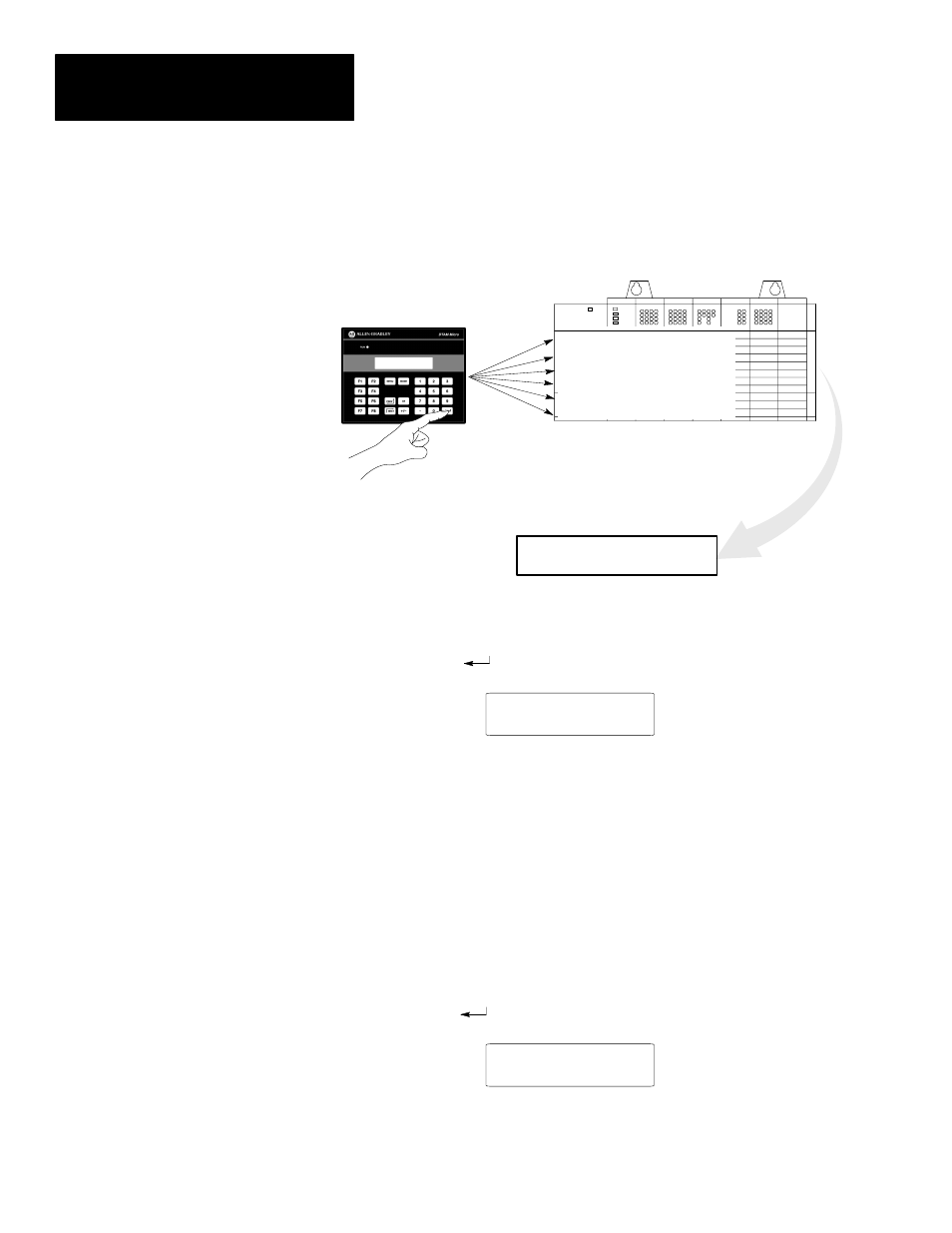

Recipe screens allow the DTAM Micro to write multiple controller addresses
at the same time. Recipe screens can also be linked so that more than one
recipe is downloaded.
T4:14.2 (Timer Value)
N7:30 = 0 (Integer Value)
N7:31 = 100 (Integer Value)
T4:15.1 (Timer Value)
N7:200 = 500 (Integer Value)
B3:10 = 10 (Binary Value)
Operator Inititates
Recipe Download
DTAM Micro Downloads
Data to Multiple Controller Addresses
Controller Modifies Process
Using New Recipe Data
Download Recipe 323?
Press ENTER to send
Depending upon the application designer, recipe screens will either
automatically download data or display a prompt allowing the download to
be initiated when [
] is pressed.
Download Recipe 323?
Press ENTER to send
Once the download is initiated, the DTAM Micro writes the recipe data to the
various controller addresses. You cannot modify the recipe data that is sent,
recipe data is specified by the application designer.
Alarm screens indicate conditions that are not expected during normal
operation. Alarm screens are triggered when the controller writes the alarm
screen number to the Advisor register. Refer to page 5–2 for additional
information on the Advisor register.
You must respond to an alarm screen before any other screens can be
displayed. The [MENU] key will not function while an alarm screen is
displayed. Press [
] to acknowledge the alarm.
Conveyor Overload
PRESS ENTER TO CLEAR
Recipe Screens
Alarm Screens
