Rockwell Automation 2707-M232P3_M485P3 DTAM Micro Operator Interface Module User Manual
Page 46
Chapter 4
Transferring Applications
4–10
8. Highlight Upload File from DTAM Micro and press [Return].

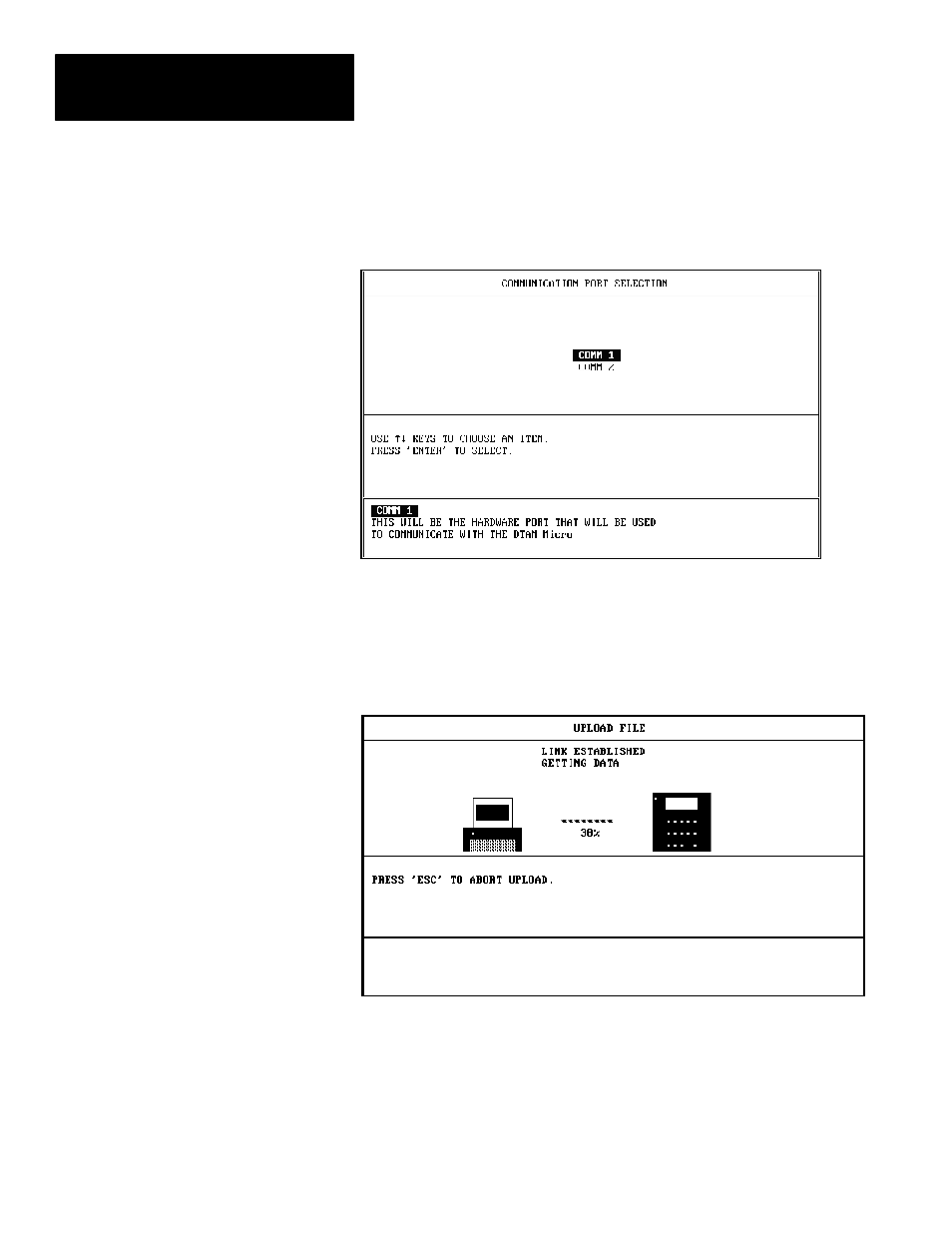

The Communication Port Selection screen appears.
. You will not see this screen if a
communication port was
specified during installation.
9. Highlight the serial port on your computer that is connected to the
DTAM Micro (COMM 1 or COMM 2) and press [Return].
10. The upload begins and the following screen shows the progress of the
upload operation.
