Transferring Applications
This chapter describes how to transfer applications between the offline
programing software (DPS) and the DTAM Micro. It contains the
following sections:
Section Page
Upload/Download DIP Switch Settings 4–1
Upload/Download Connections 4–2
Computer Setup 4–2
Downloading an Application 4–3
Uploading an Application 4–8

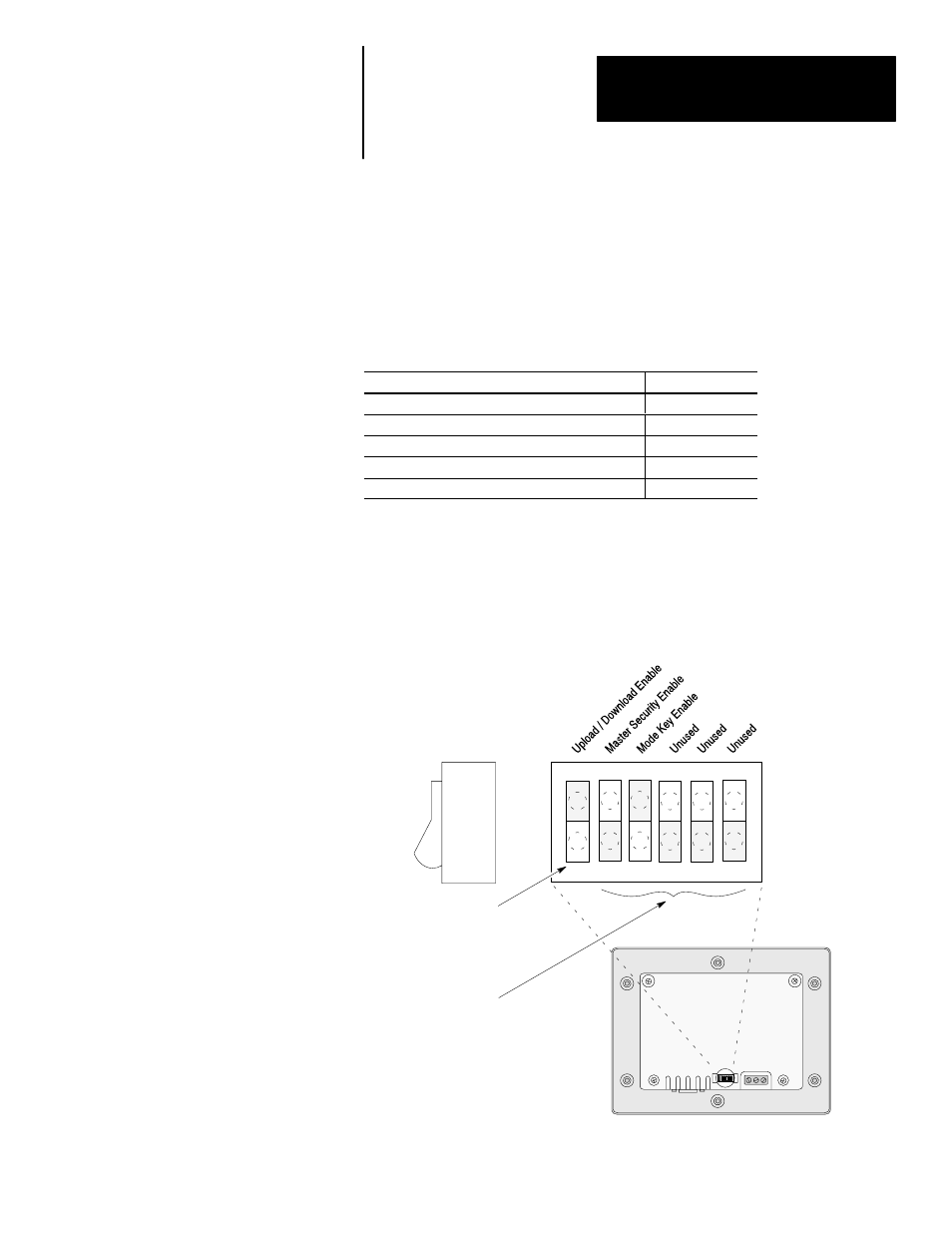

Before you can upload or download an application, you must verify that
DIP switch position #1 is On as shown. To access the DIP switch, remove
the cover from the access hole on the back of the DTAM Micro (align cover
tabs with notches in hole to remove). The DTAM Micro is shipped without
the cover installed, you can find it in the hardware bag.
1 2 3 4 5 6
Back of DTAM Micro
OPEN
ON =
Side View
DIP Switch Position #1
must be On as shown.
DIP Switch Positions #2
through #6 can be in any position.
