Downloading an application – Rockwell Automation 2707-M232P3_M485P3 DTAM Micro Operator Interface Module User Manual
Page 39
Chapter 4
Transferring Applications
4–3
This section shows how to download an application from a computer running
DPS software (Catalog No. 2707-NP, series H or later) to the DTAM Micro.
Refer to the DPS Programming Manual (Publication No. 2707-801) for
additional information.
1. Apply power to the DTAM Micro.
The following message appears in the window of the DTAM Micro.
Programming Mode
Waiting For Program
If you do not see this message, check the DIP switch settings.
DIP Switch position #1 must be in the Closed (ON) position.
2. On your computer, move to the /DPS subdirectory where the software
resides.
C:\DPS>
3. Type dps and press [Return] to start the program.
C:\DPS>dps [Return]
4. Specify whether you are using a color monitor. Enter Y or N.

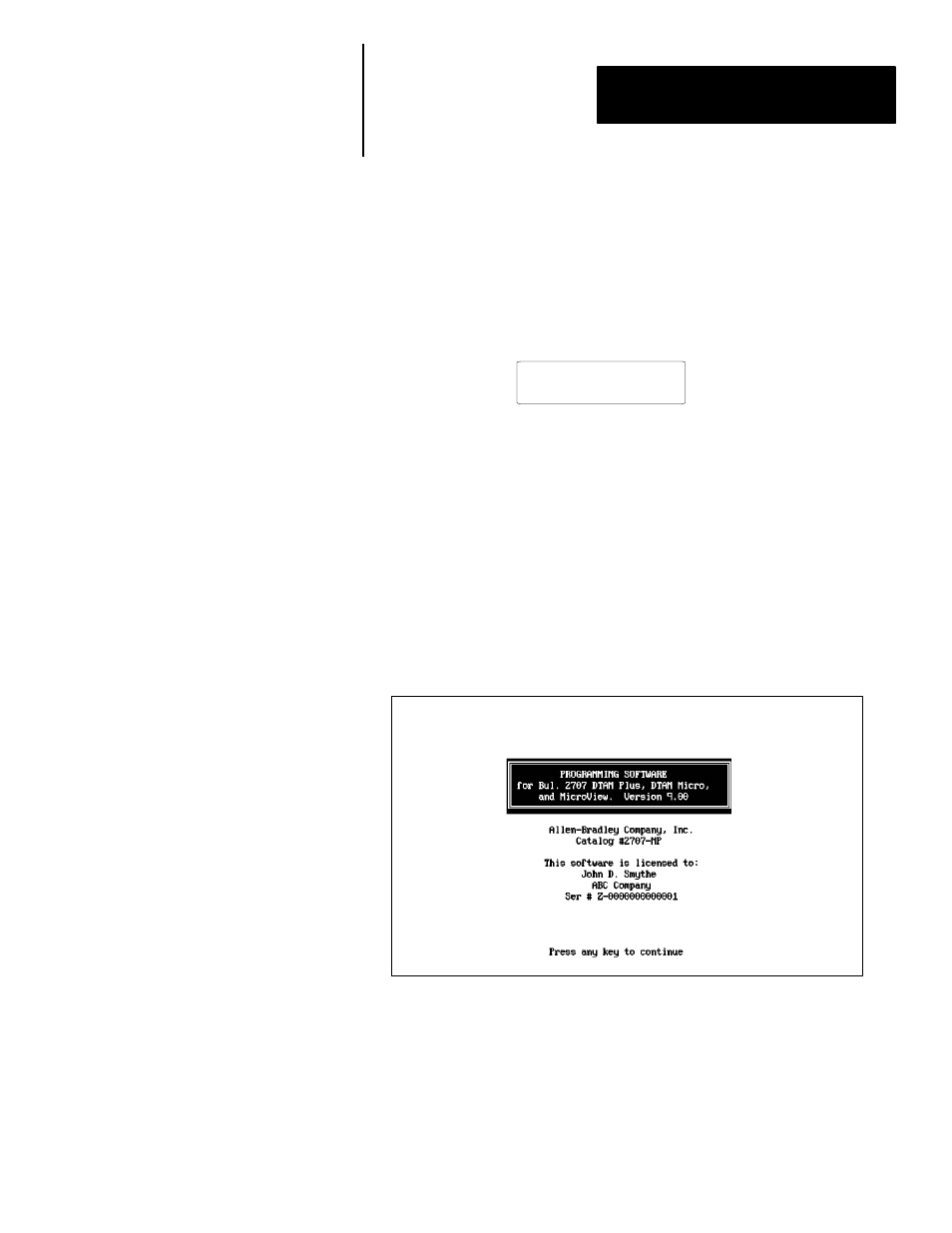

5. The startup screen displays:
Voice: 440–646–6800
FAX: 440–646–6850 or 6890
E–mail: [email protected]
Technical Support
. You will not see this prompt if
a monitor was specified during
installation.
Downloading an Application
