Page 38
Chapter 4
Transferring Applications
4–2
To download an application to the DTAM Plus, you must:
•
connect a power supply (refer to Chapter 3)
•
connect the (Catalog No. 2707-NC2) upload/download cable if you have
the RS-232 version
•
connect the (Catalog No. 2707-NC5) upload/download cable if you have
the RS-485 version. This cable converts the computer’s RS-232 output to
RS-422 which is compatible with the DTAM Micro RS-485 port.

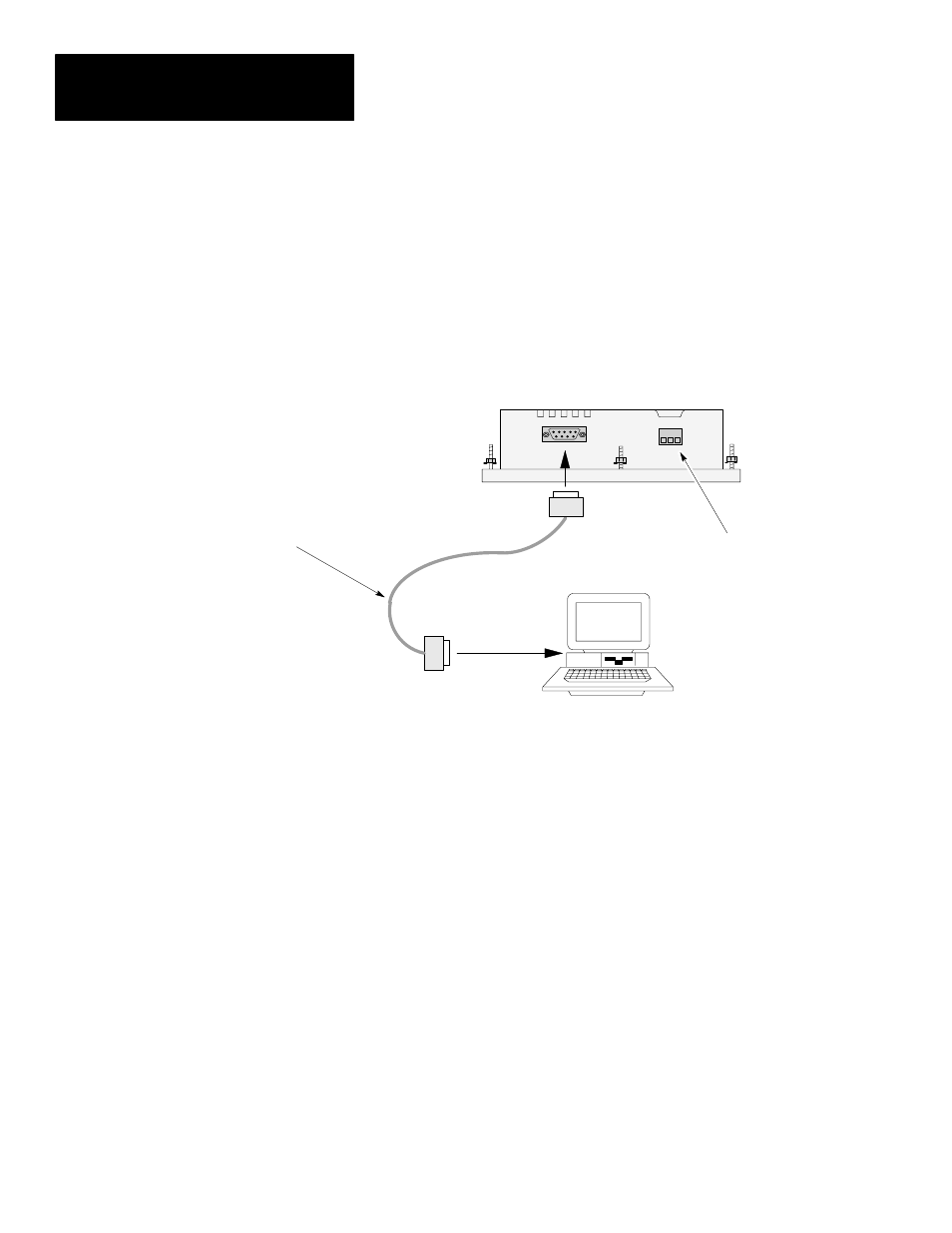

To Computer
RS-232 Port
Refer to Chapter 3
for power connections.
RS-485 Version (Catalog No. 2707-M485P3)
Use Upload/Download Cable (Catalog No. 2707-NC5)
RS-232 Version (Catalog No. 2707-M232P3)
Use Upload/Download Cable (Catalog No. 2707-NC2)
DTAM Micro
Upload and download functions are initiated from a personal computer
running the programming software DPS (Catalog No. 2707-NP, series H or
later). Transfer functions automatically occur at 9600 Baud.
After the transfer is complete, the DTAM Micro Baud rate is set to the
parameters defined by the application program residing in the DTAM Micro.
Upload / Download
Connections
Computer Setup
