Equipment required, Clearances, Equipment required clearances – Rockwell Automation 2707-M232P3_M485P3 DTAM Micro Operator Interface Module User Manual
Page 57
Chapter 6
Installation
6–3
Other than the tools required to make the panel cutout, the tools required for
installation are:
•
7mm (M4) deep well socket wrench or nut driver
•
small slotted screwdriver
•
torque wrench (in. / lbs).
The terminal is tightened against the panel with six self-locking nuts.
Make sure that you leave adequate room, as shown in Figure 6.1, for
mounting, air flow, cabling, and access to DIP switches.

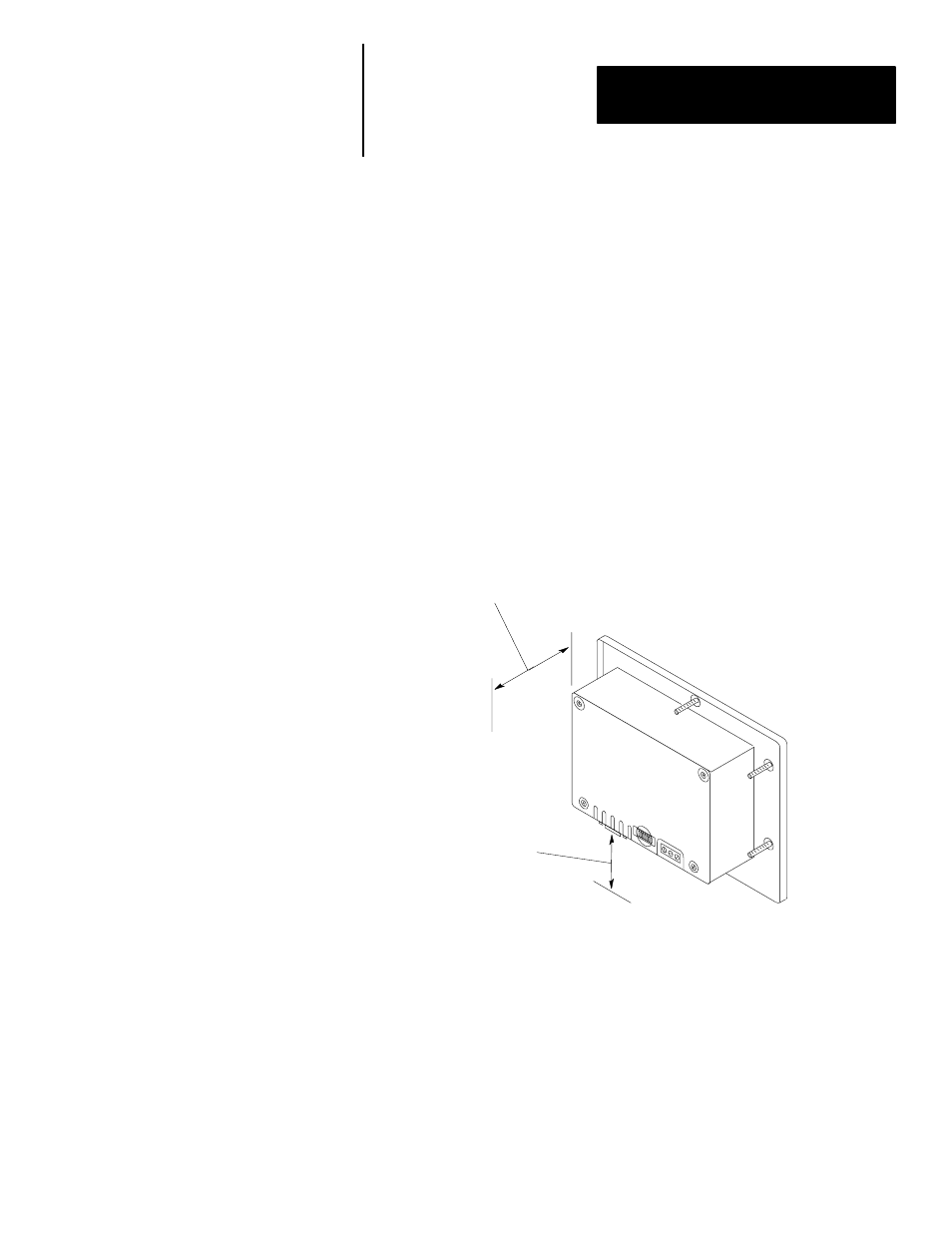

Figure 6.1
Recommended Clearances
Leave 3 inches (76.2 mm)
for Mounting, Air Flow, and
access to DIP Switches.
Leave 3 inches (76.2 mm) for
communications port connector.
Equipment Required
Clearances
