Publication 1794-UM063A-EN-P - March 2006

1-4 About the FLEX I/O HART Analog Modules

Data Format Alarm Example

In this example, the normal active data range is 4-20 mA. The alarms are
generated in three overlapping bands.

Overrange Alarm

The overrange alarm notifies you when module input is overrange. When the
input signal exceeds 100% (20 mA), an Overrange Alarm is generated.

This alarm stays active at any value above 100% of range and is always enabled
by the module.

Underrange Alarm

The underrange alarm works converse to the overrange. This feature notifies
you when the input signal falls underrange. If the input signal falls below 0% (4
mA), an Underrange Alarm is generated.

This alarm stays active at any value below 0% of range and is always enabled by
the module.

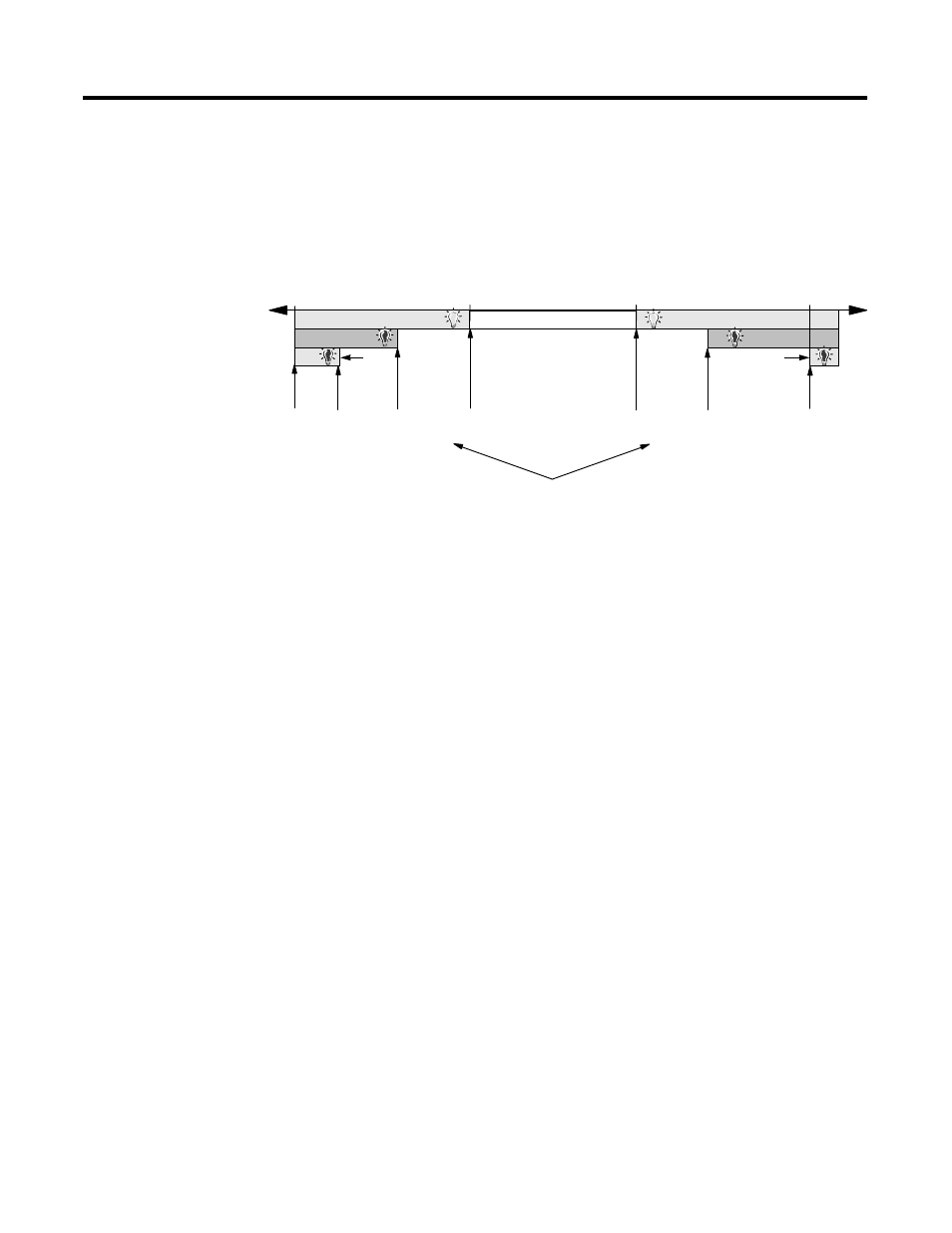

PHYSICAL INPUT SIGNAL RANGE

0 mA

4 mA

20 mA

22 mA

Remote Fault

Remote Fault

Local
Fault

Local
Fault

Underrange

Overrange

Programmable

in 20 0.1 mA

steps by Error

Level 0.1 mA

Steps

parameter

-12.50%

0.00%

-25.00%

Remote Transmitter Error

Up/Down parameter

determines which of these

is active

Programmable

in 20 0.1 mA

steps by Error

Level 0.1 mA

Steps

parameter

100.00%

112.50%

41666
