Rockwell Automation 1771-CFM,D17716.5.99 CONFIGURABLE FLOWMET User Manual
Page 23
2–5
Install the CFM Module
Publication 1771Ć6.5.99 - December 1995
FILTER
➀
HIGH SPEED

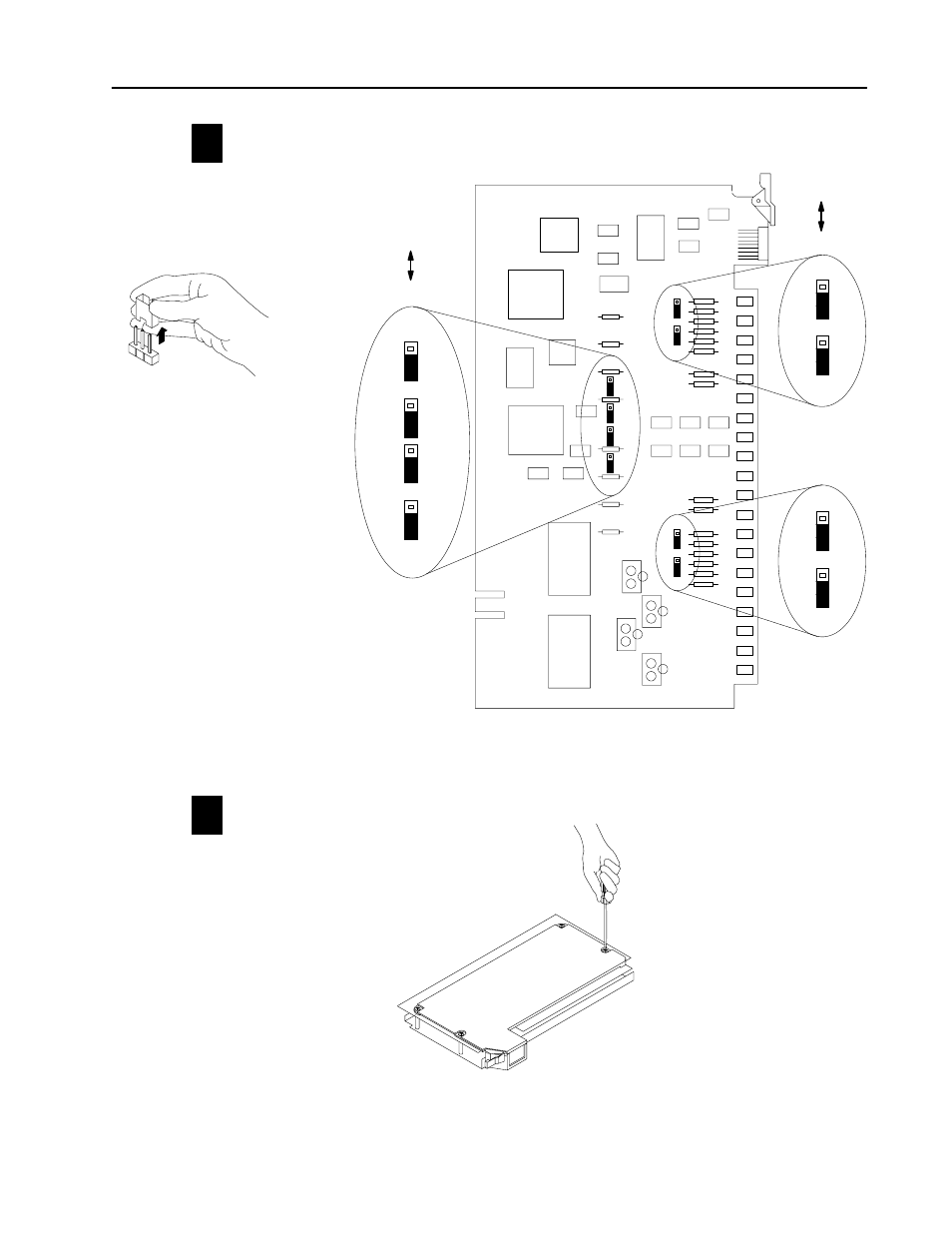

Reposition the flowmeter and gate jumpers associated
with each input channel according to your requirements.
The flowmeter and gate jumpers
➁
can be
set independent of each other (you can
select the filter action for each flowmeter
input and a voltage for each and gate
input independently).
5-12V
12-40V
G2
G3
G0
G1
19806
2
F1
F0
F3
F2
➀
In the filter position, the module will not read frequencies above 70Hz.
➁
Jumpers are shown in default settings.
flowmeter jumpers
gate jumpers
Reposition the cover and secure with
the fours screws removed in step 1.
19813
13
