Chapter 3 I/O Memory Mapping

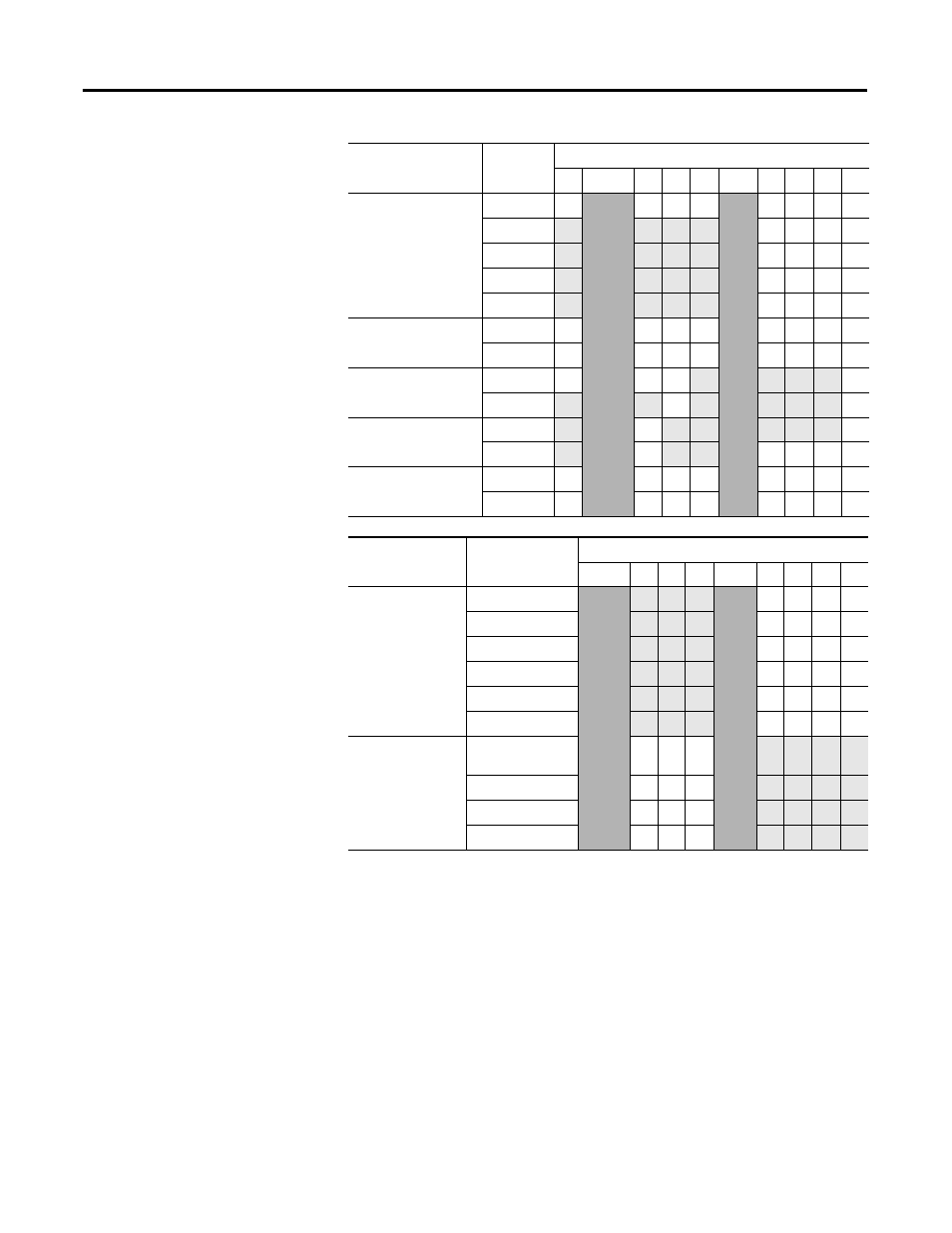

Define To Select Make these bit settings
15 14…11 10 9 8 7…4 3 2 1 0
Input Filter Selection 60 Hz 0 0 0 0
50 Hz 0 0 0 1
28.5 Hz 0 0 1 0
300 Hz 0 0 1 1
360 Hz 0 1 0 0
Enable Interrupt Enable 1
Disable 0
Enable Process
Alarm Latch Enable 1
Disable 0
Enable Process Alarms Enable 1
Disable 0
Enable Channel Enable 1
Disable 0
Define Indicate this These bit settings
15…11 10 9 8 7…4 3 2 1 0
Input Range Select -10…+10V dc 0 0 0 0
0…5V dc 0 0 0 1
0…10V dc 0 0 1 0
4…20 mA 0 0 1 1
1…5V dc 0 1 0 0
0…20 mA 0 1 0 1
Input Data Select Raw/Proportional
Counts 0 0 0
Engineering Units 0 0 1
Scaled for PID 0 1 0
Percent Range 0 1 1
