Connecting a programming terminal, 1ć16 – Rockwell Automation 1785-L20C_L40C, D17856.5.14 ControlNet PLC-5 Programmable Controllers User Manual User Manual
Page 24
Chapter 1
Installing Your ControlNet PLCĆ5 Processor
1-16
You can connect a programming terminal to a ControlNet PLC-5
processor via a:
DH+
connection
serial
channel
ControlNet
connection
DH+ Connection
To attach a programming terminal to a ControlNet PLCĆ5 processor using a DH+ connection:
If you use this card
to access a DH+ link:
Use cable:
1784ĆPCMK
G 1784ĆPCM6
G 1784ĆPCM5 with a 1784ĆCP7 adapter
1784ĆKT, ĆKT2
G 1784ĆCP6
G 1784ĆCP6 with a 1784ĆCP7 adapter
G 1784ĆCP8 adapter
1784ĆKTx, ĆKTxD
1784ĆCP13

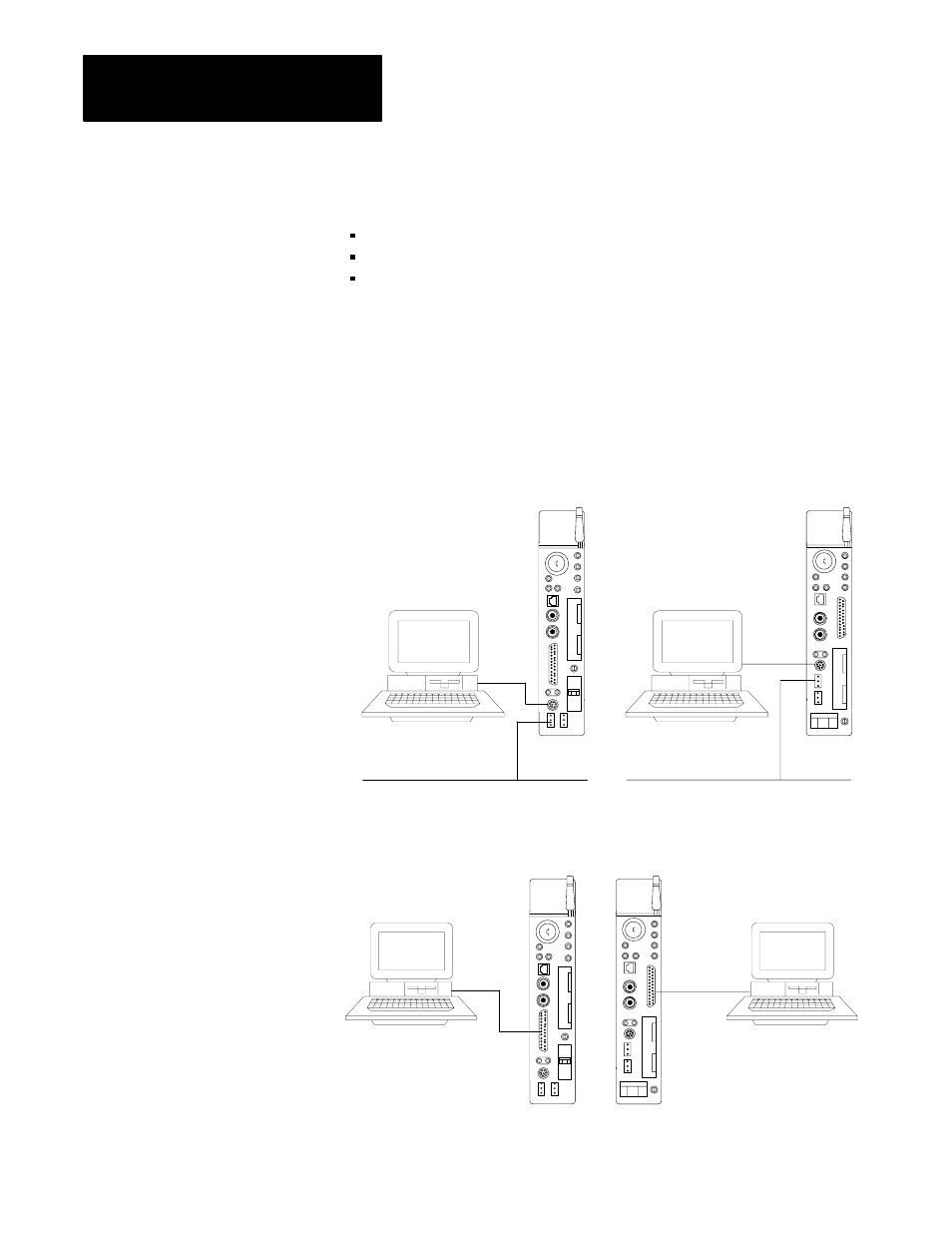

Programming Terminal
PLCĆ5/40C
Processor
BATT
CH 0
DH+ Link
Programming Terminal
PLCĆ5/20C
Processor
DH+ Link
Serial Channel
Programming Terminal
To program the processor using Channel 0, configure the channel for RSĆ232C using DF1
pointĆtoĆpoint protocol.
PLCĆ5/40C
Processor
BATT
CH 0
PLCĆ5/20C
Processor
Programming Terminal
If your programming
terminal has a:
Use cable:
9Ćpin serial port
1784ĆCP10
25Ćpin serial port
1784ĆCP11
Connecting a
Programming Terminal
