Chapter 1

Installing Your ControlNet PLCĆ5 Processor

1-12

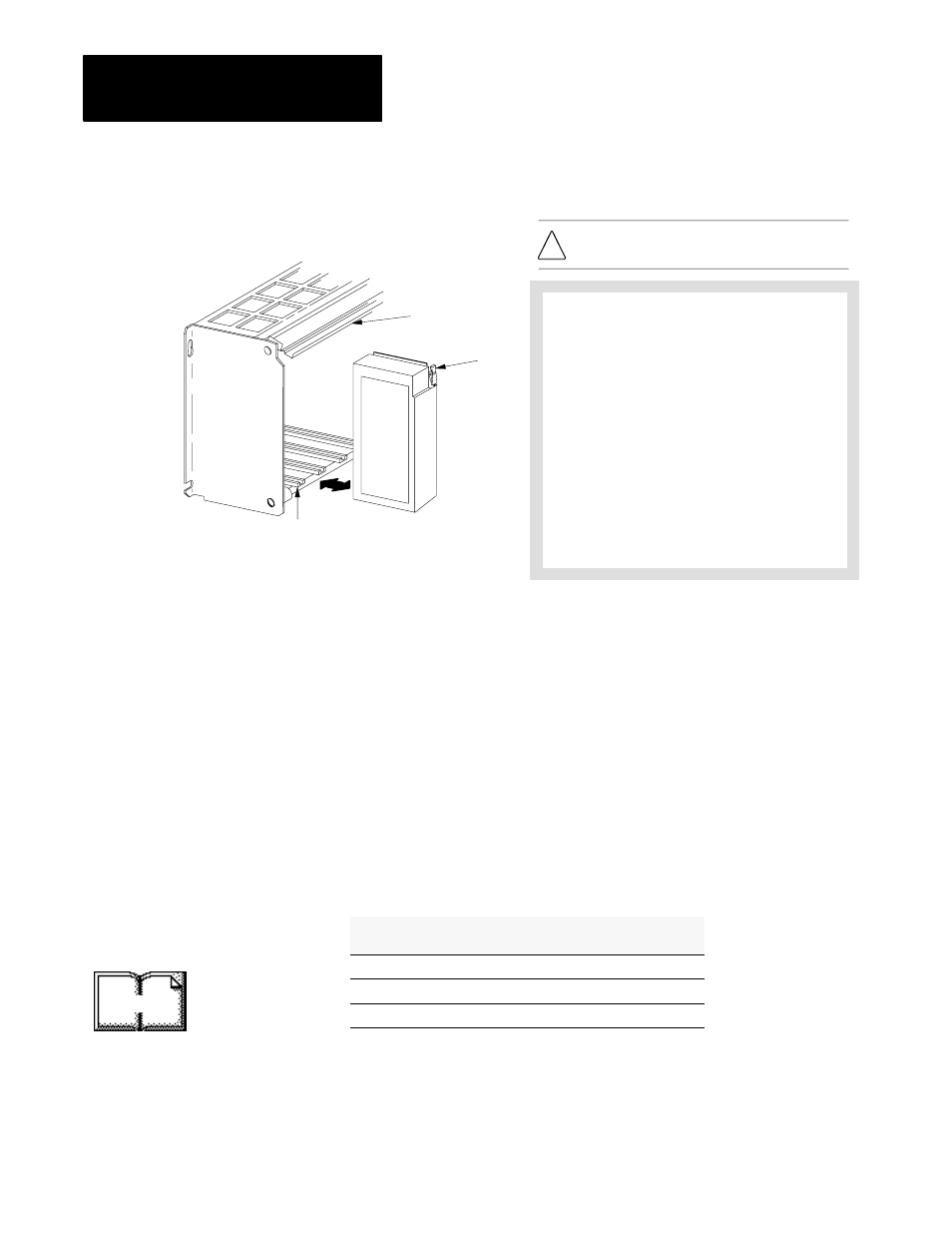

To insert/remove the processor into/from the chassis, do the following:

To insert a processor into the chassis:
1. Lift the locking bar and the ejector tab.
2. Slide the processor into the leftĆmost slot of the

I/O chassis.

3. Press down on the ejector tab, and then close the

locking bar over the processor.

To remove a processor from the chassis:
1. Save processor memory.
2. Remove power to the processorĆresident chassis.
3. Disconnect all cables from the processor's ports.
4. Lift the locking bar and the ejector tab, and then

slide the processor from the chassis.

19898

ATTENTION: Make certain that power to the chassis is

off before inserting or removing the processor.

!

Ejector

Tab

Locking

Bar

Card Guides

Install a remote I/O link using 1770-CD cable and either a daisy-chain or
trunk-cable/drop-cable configuration.

Verify that your system’s design plans specify cable lengths within
allowable measurements.

Important: The maximum cable length for remote I/O depends on the
transmission rate. Configure all devices on a remote I/O link to
communicate at the same rate.

Table 1.A

Correct Cable Length Based on Communication Rate

A remote I/O link using this

communication rate:

Cannot exceed this

cable length:

57.6K bit/s

3,048 m (approximately 10,000 ft)

115.2K bit/s

1,524 m (approximately 5,000 ft)

230.4K bit/s

762 m (approximately 2,500 ft)

For proper operation, terminate both ends of a remote I/O link by using the
external resistors shipped with the programmable controller. Use either a
150

W or 82W terminator.

Inserting/Removing the

Processor into/from the

I/O Chassis

TrunkĆcable/dropĆcable considerations:
When using a trunkĆcable/dropĆcable

configuration, use 1770ĆSC station

connectors and follow these cableĆ

length guidelines:

trunkĆcable lengthĊdepends on the

communication rate of the link; see

Table 1.A

dropĆcable lengthĊ30.4 m

(100 cableĆft) maximum

Important: When using a trunkĆcable/

dropĆcable configuration, set your

communication rate to 57.6kK bit/s.

More

For more information about designing

trunkĆcable/dropĆcable configurations,

see the Data Highway/Data Highway

Plus/Data Highway II/Data Highway

485 Cable Installation Manual,

publication 1770Ć6.2.2.

Installing a Remote I/O Link
