Setting the i/o chassis configuration plug, Installing keying bands for the processor, Chapter 1 – Rockwell Automation 1785-L20C_L40C, D17856.5.14 ControlNet PLC-5 Programmable Controllers User Manual User Manual

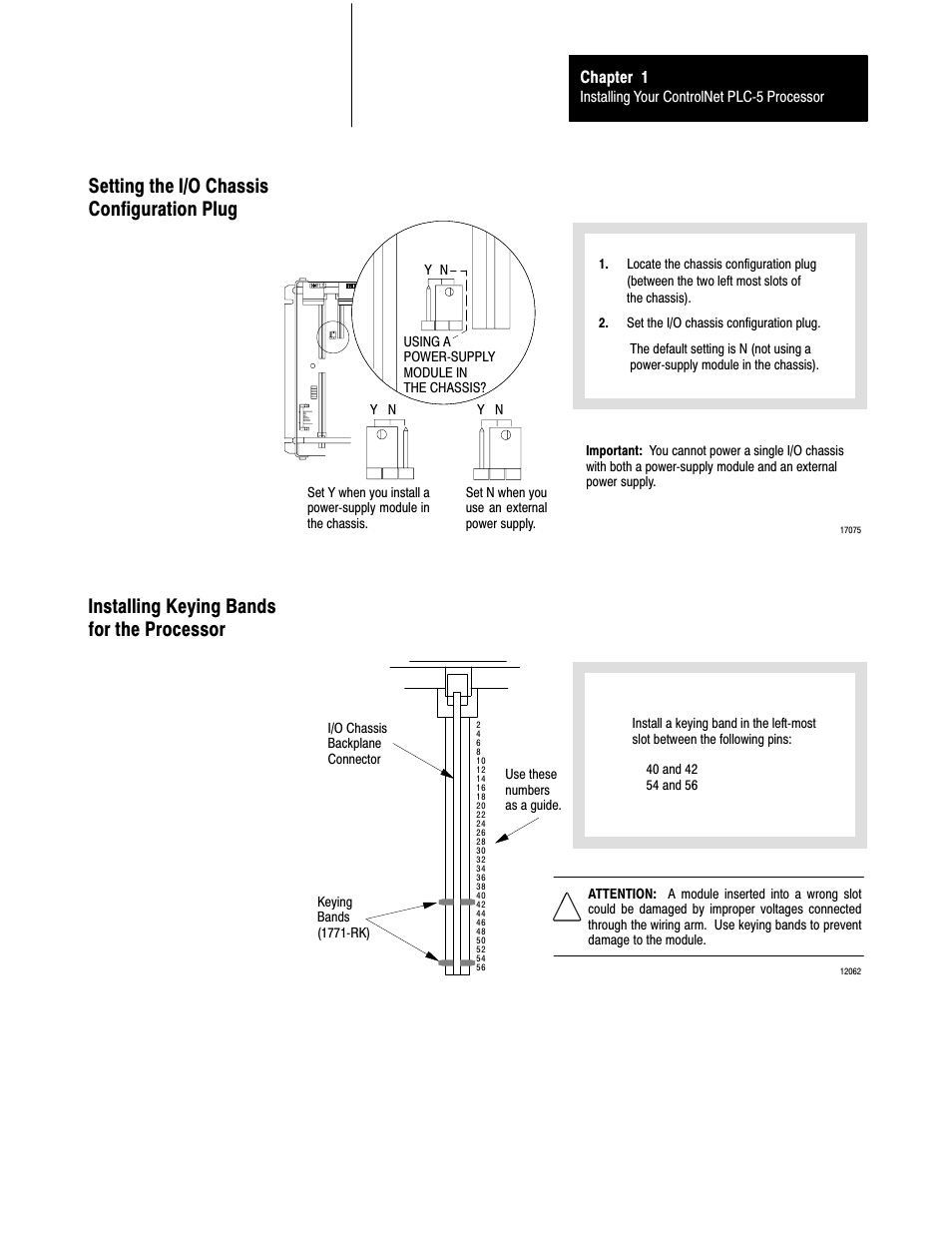

Page 15: Set the i/o chassis configuration plug as follows
