Chapter 5 Configuring
T H E P M 1 3 0 P L U S
Configuring
R E C O R D E R S
PM130 PLUS Powermeter Series
99
2. Select a partition type for your file.
3. Select the number of parameters you want to be recorded in
the file records.
4. Select the maximum number of records you want to be
recorded in the file.
5. Click OK, and then send your new setup to the meter, or save
to the device database.
To define the contents of the file:
1. Highlight the data log file row with the
left mouse button, and then click on
the Setup Recorder button, or click on
the Data Recorder tab and select the
corresponding log number.

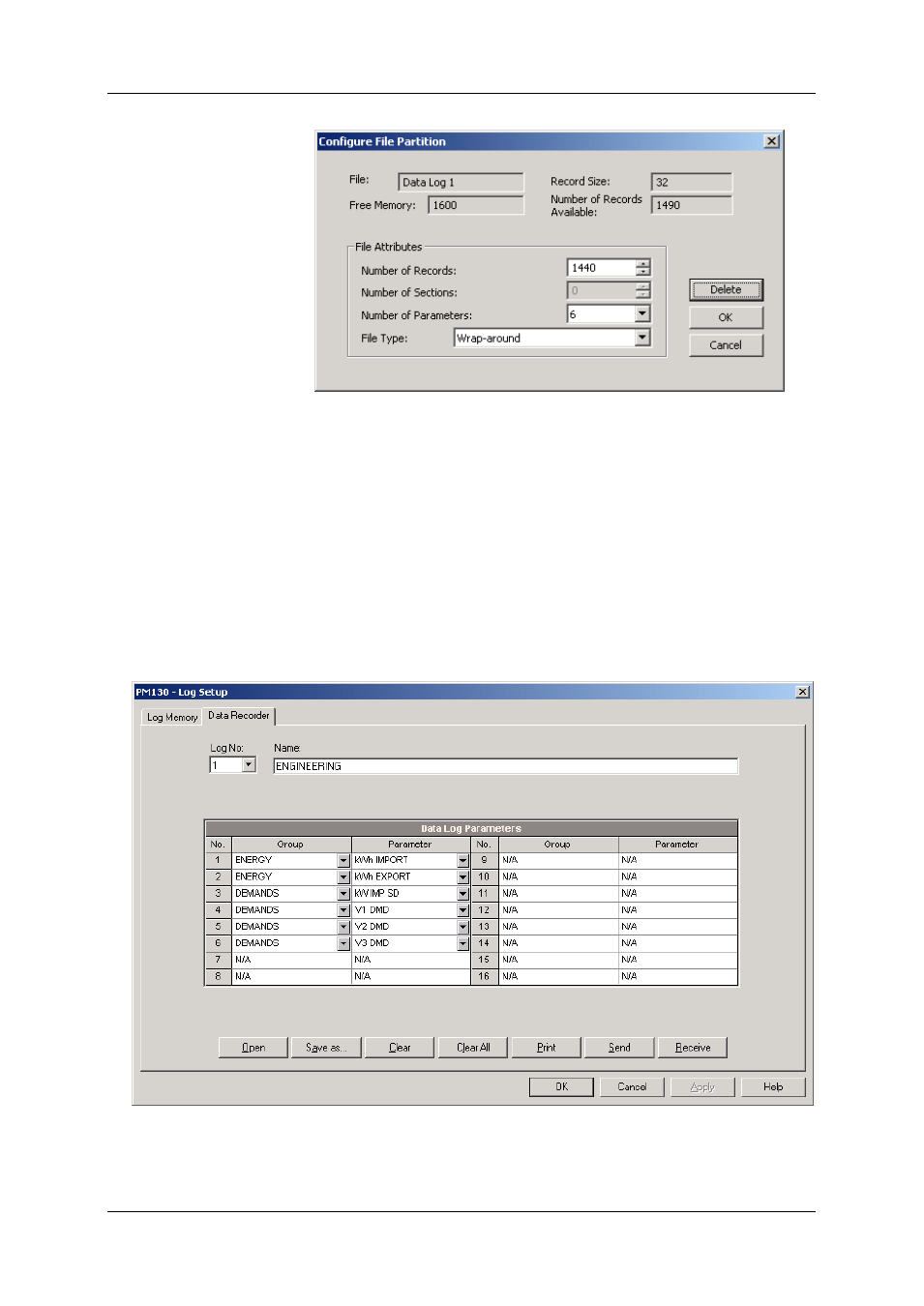

Figure 5-19: Log Setup Dialog Box – Data Recorder Tab
