‎Chapter 2 Installation Communications C O N N E C T I O N S
38 PM130 PLUS Powermeter Series
PRO module – COM2 PROFIBUS Connection

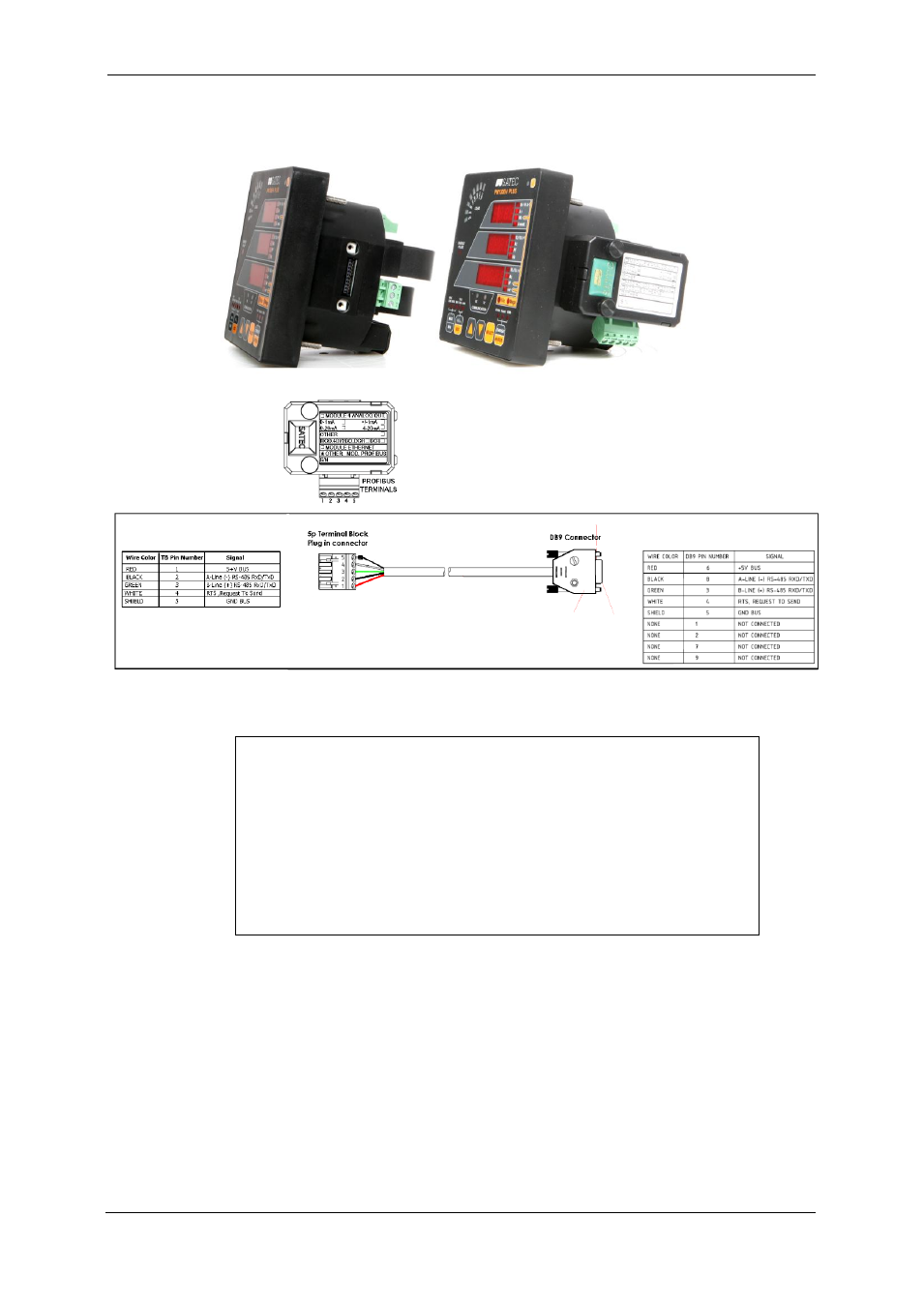

Figure ‎2-29 COM2 PROFIBUS Connection


The PRO module TERMINAL is for use only with equipment
which has no live parts which are ACCESSIBLE

The RATING of the insulation of the external equipment for
use with the PRO module, shall comply according to
Installation Category II for insulation to be suitable for
SINGLE FAULT CONDITION

The external equipment TERMINAL connection type is DB9

The type of equipment that might be connected to the
TERMINAL is:
 Programmable Logic Controller for automation – PLC
