‎Chapter 5 Configuring T H E P M 1 3 0 P L U S
Configuring R E C O R D E R S
PM130 PLUS Powermeter Series 97

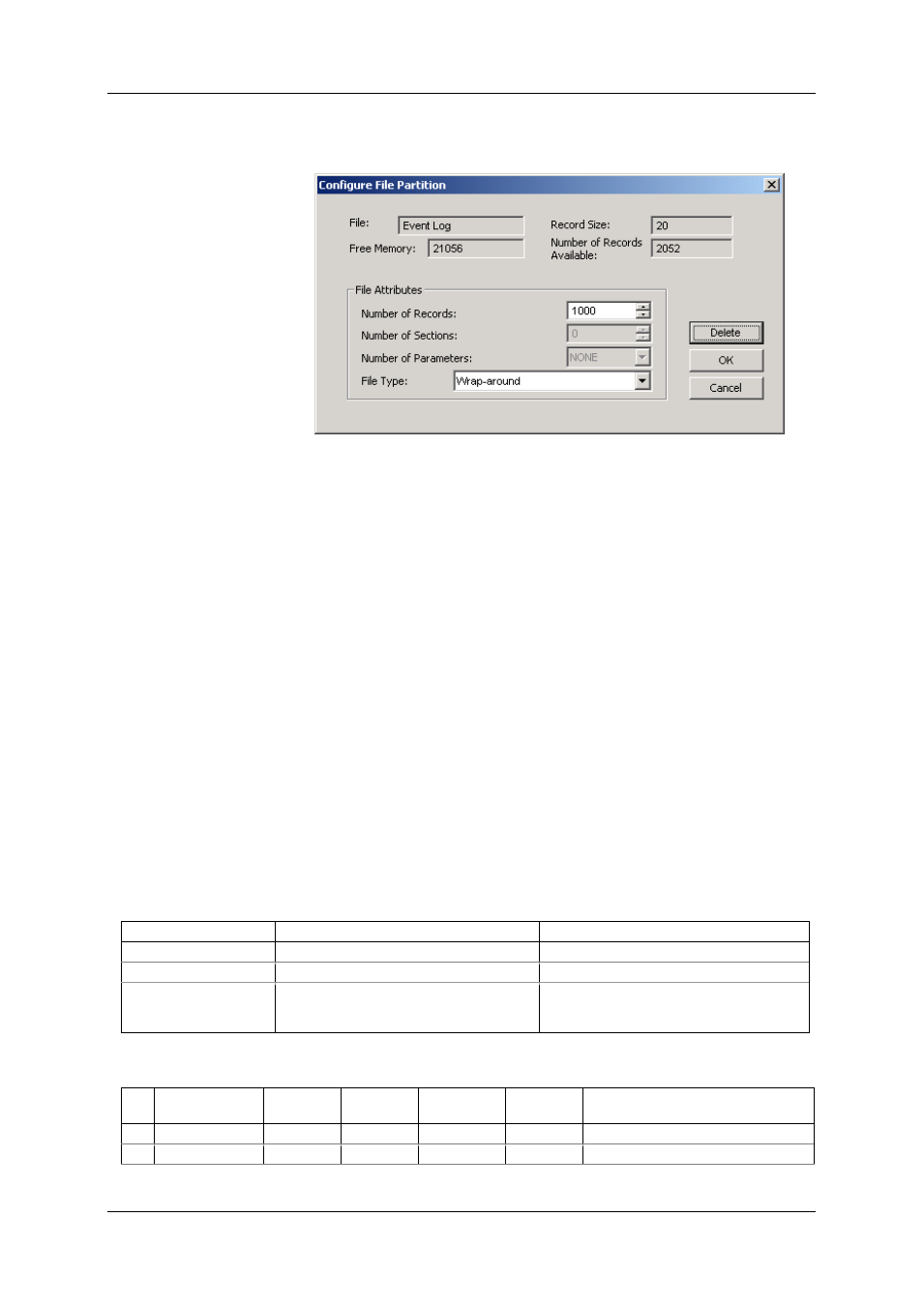

1. Double click on the file you want to
change.
2. Select desired parameters for your log.
3. Click OK.
For your reference, the record size and the number of records available for
your file are reported in the dialog box.
To delete an existing file partition:
1. Click on Delete.
2. Click OK.
NOTES
1. Memory is allocated for a file statically
when you set up your files and will not
change unless you re-organize files.
2. The meter automatically performs de-
fragmentation of the memory each
time you re-organize your files. This
prevents possible leakage of memory
caused by fragmentation. It may take a
couple of seconds.
For more information on configuring specific files, see the following
sections.
The following table can help you calculate an estimated file size when
planning your memory allocation.
File Record Size, Bytes File Size, Bytes
Event Log 16 Record size  Number of records
Conventional data Log 12 + 4  Number of parameters Record size  Number of records
Billing/TOU daily
profile log
12 + 4  (Number of season tariffs + 1
for the TOU summary/total register)
Record size  Number of billing registers
(  2 for the maximum demand profile) x
Number of records
The factory pre-set file configuration is shown in the following table.
No. File Size,
Bytes
Channels Number of
Records
Number
of Events
Factory-set Configuration
1 Event log 3200 200 200 200 last events
2 Data log #1 46080 5760 5760 15-min data profile for 15 days
