‎Chapter 5 Configuring T H E P M 1 3 0 P L U S
Configuring C O M M U N I C A T I O N P R O T O C O L S
PM130 PLUS Powermeter Series 103
Changing 32-bit Register Format
The PM130 PLUS allows you to read 32-bit Modbus analog registers,
energy counters and binary counters either in integer format, or in IEEE
single precision floating point format.
The 32-bit Modbus registers are factory-set to integer format. To change
the register format:
1. Select Protocol Setup from the Meter
Setup menu, and click on the Modbus
Registers tab.
2. Change the 32-bit register format in the Modbus Options
pane.
3. Click Send to download your setup to the meter.
Configuring DNP3
Refer to the PM130 DNP3 Reference guide for information on the DNP3
protocol implementation and a list of the available data points.
DNP Options
Select Protocol Setup from the Meter Setup menu and click on the DNP
Options tab.

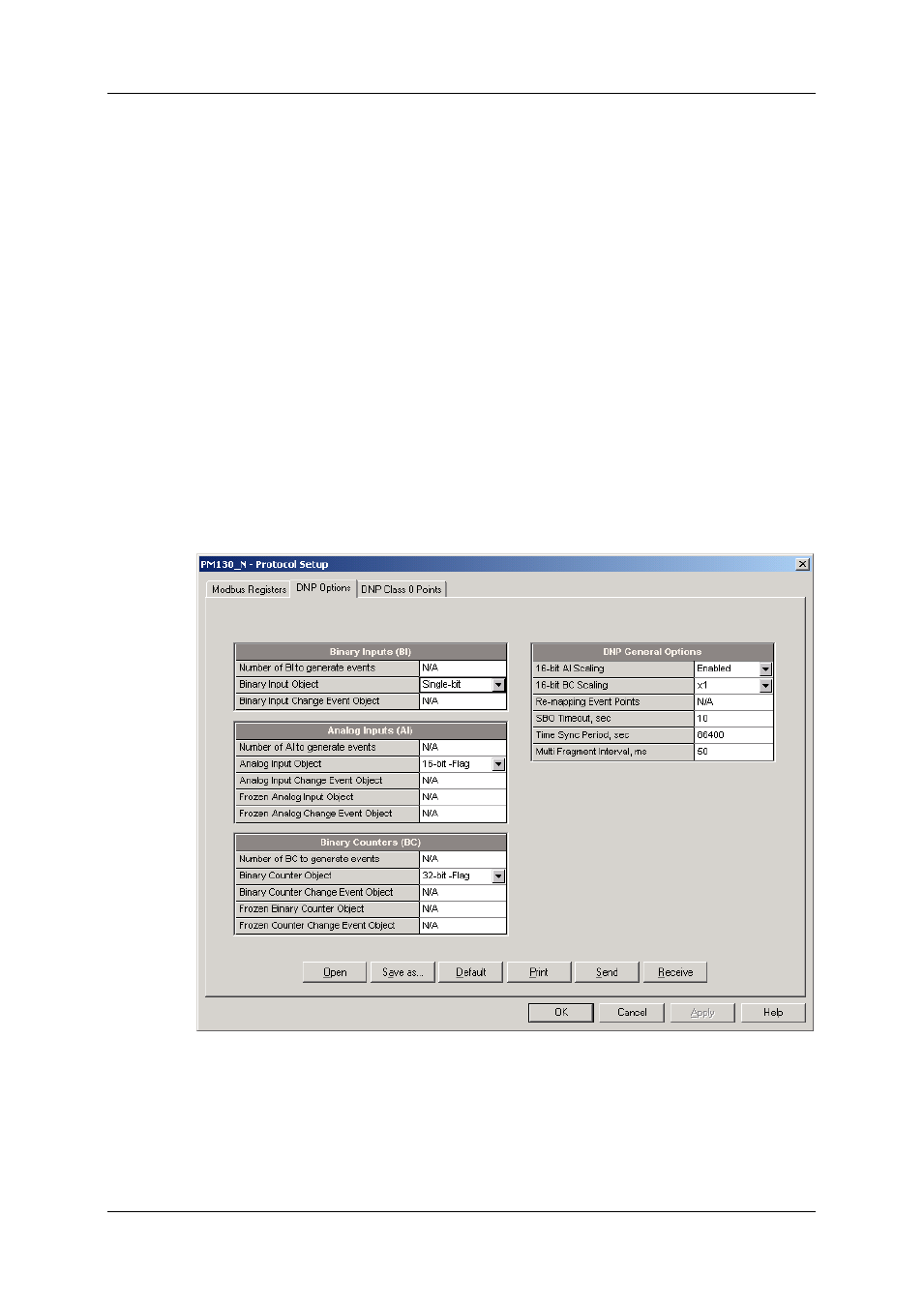

Figure ‎5-21: Protocol Setup Dialog Box – DNP Options Tab
The following table describes available options. Refer to the DNP3 Data
Object Library document available from the DNP User’s Group on the
DNP3 object types.
