‎Chapter 5 Configuring T H E P M 1 3 0 P L U S
General M E T E R S E T U P
74 PM130 PLUS Powermeter Series
Display
Label
Parameter Options Default Description
rESL Device Resolution Lo = Low
Hi = High
Low The voltage, current and power
resolution on the front display
(see Measurement Units in
Chapter 3) and in
communications (see
communication guides)
U.ScL Volts Scale, V 60-828 V 144 V The maximum voltage scale
allowed, in secondary volts. See
Data Scales in Appendix F
C.ScL Amps Scale, A 1.0-10.0 A 2  CT
secondary
The maximum current scale
allowed, in secondary amps.
See Data Scales in Appendix F

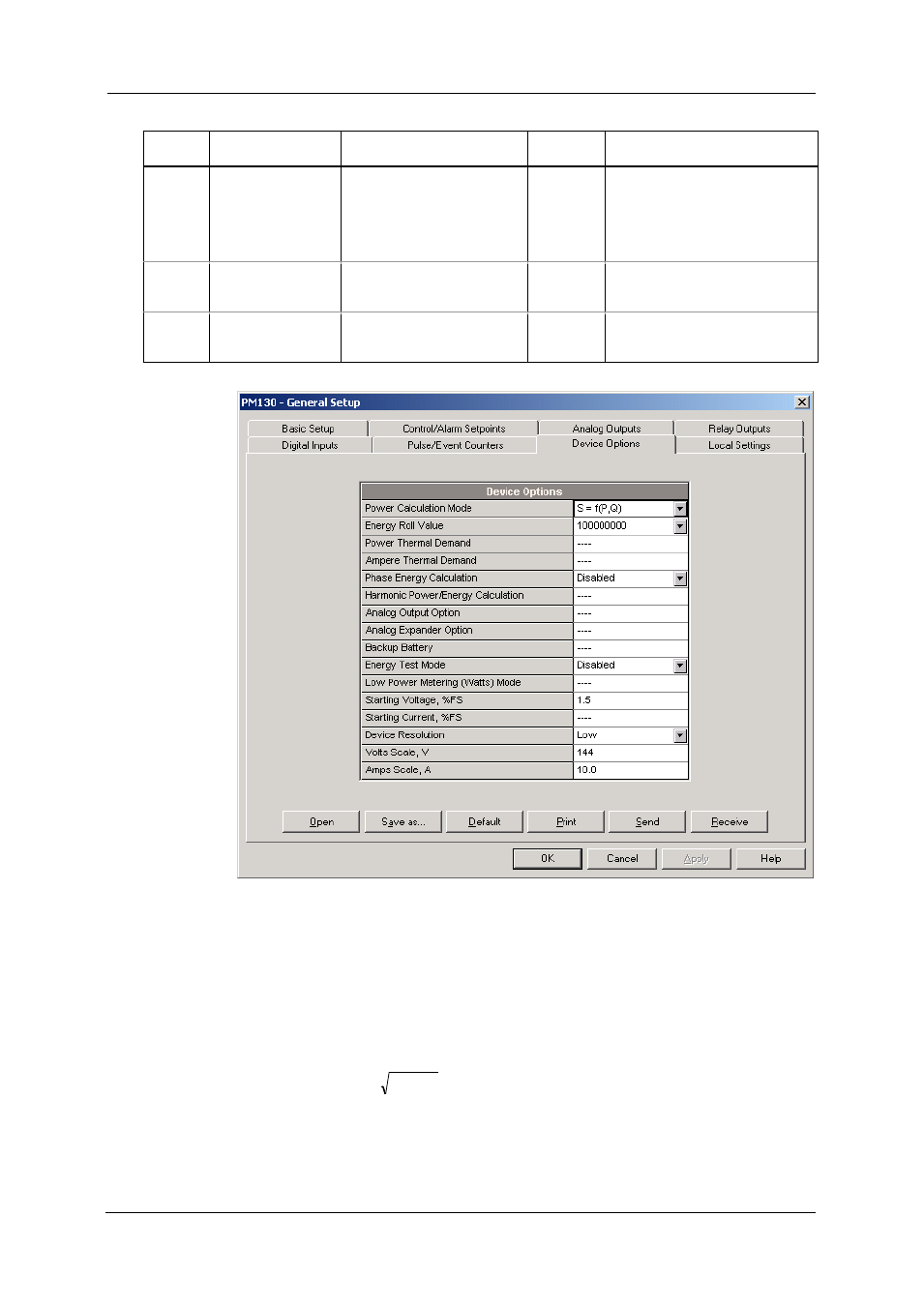

Figure ‎5-7: General Setup Dialog Box – Device Options Tab
Power Calculation Modes
The power calculation mode option allows you to change the method for
calculating reactive and apparent powers in presence of high harmonics.
The options work as follows:
 When the reactive power calculation mode is selected, active and
reactive powers are measured directly and apparent power is
calculated as:
2 2
Q P S  
This mode is recommended for
electrical networks with low harmonic
distortion, commonly with THD < 5%
