‎Chapter 3 Using F R O N T D I S P L A Y Status D I S P L A Y
PM130 PLUS Powermeter Series 51
3. Use the UP and DOWN arrow buttons to scroll through the
status pages.

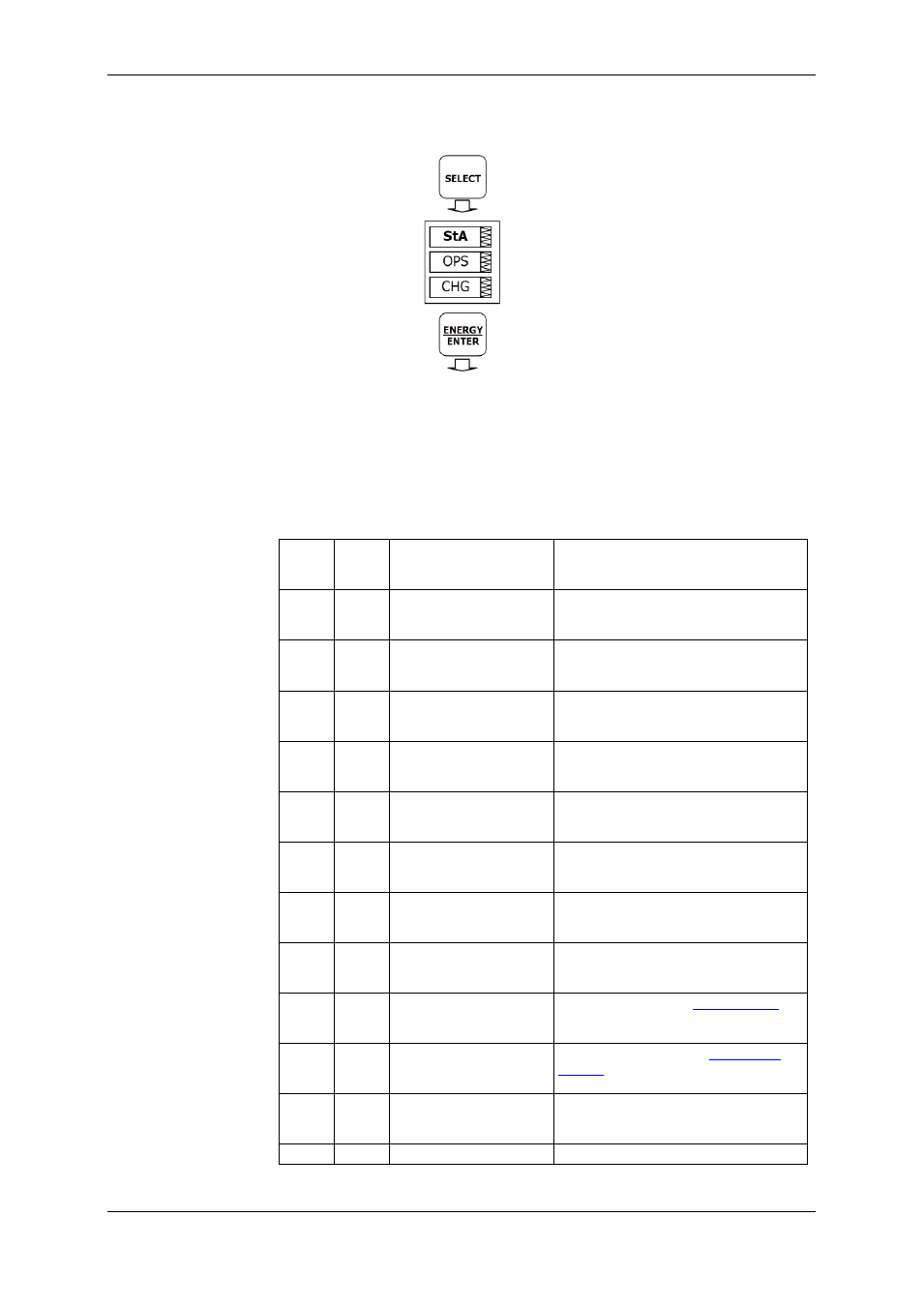

Figure ‎3-3: Status Display
To exit the Status Display:
1. Press ESC to return to the primary
device menu.
2. Press ESC to return to the Data display.
Table 13: Status Display Parameters
1 PhS
rot
POS/nEG/Err
Phase rotation order
2
A.
V1 angle
V2 angle
V3 angle
Voltage angles (±180°, referenced to
V1)
3
A.
I1 angle
I2 angle
I3 angle
Current angles (±180°, referenced to
V1)
4 rEL
1.2
00
Relay status (with a digital I/O
module)
5 St.In
1.2.3.4
0000
Status inputs (with a digital I/O
module)
6 Cnt.1
12345
Counter #1 value (a time counter – in
0.1 hour units)
7 Cnt.2
12345
Counter #2 value (a time counter – in
0.1 hour units)
8 Cnt.3
12345
Counter #3 value (a time counter – in
0.1 hour units)
9 Cnt.4
12345
Counter #4 value (a time counter – in
0.1 hour units)
10 Alar
SP.<Setpoint Number>
<Alarm Trigger >
Setpoint alarms (see Alarm Display
below)
11 diAG
<Diagnostic Code>
<Diagnostic Message>
Device diagnostics (see Diagnostics
Display below)
12 SEr.n
1
23456
Device serial number
13 SoFt Firmware version number
