‎Chapter 5 Configuring T H E P M 1 3 0 P L U S
Configuring R E C O R D E R S
100 PM130 PLUS Powermeter Series
2. Configure the list of parameters to be recorded in a log file.
You are not allowed to select more parameters than you
defined when configuring your file. Refer to Appendix D for a
list of available parameters.
3. For your convenience, PAS follows your selection and helps you
configure a series of the neighboring parameters: when you
open the Group box for the next parameter, PAS highlights the
same group as in your previous selection; if you select this
group again, PAS automatically updates the Parameter box
with the following parameter in the group.
4. Add the name for your data log file in the Name box. It will
appear in the data log reports.
5. Save your new setup to the device database, and send it to the
meter.
Billing/TOU Daily Profile Log File
Data log #16 is configurable to store TOU daily profile log records on a
daily basis.
The file is organized as a multi-section file that has a separate section of
the same structure for each billing energy and maximum demand register.
The number of sections is taken automatically from the Billing/TOU Registers
setup (see
Configuring Billing/Tariff Registers ). If the maximum demand
profiling is used, then the number of sections in the file will be twice the
number of the allocated billing registers.
To configure a daily profile log file:
1. Configure your Billing/TOU registers and tariff schedule in
the meter (see Configuring Billing/Tariff Registers ) first.

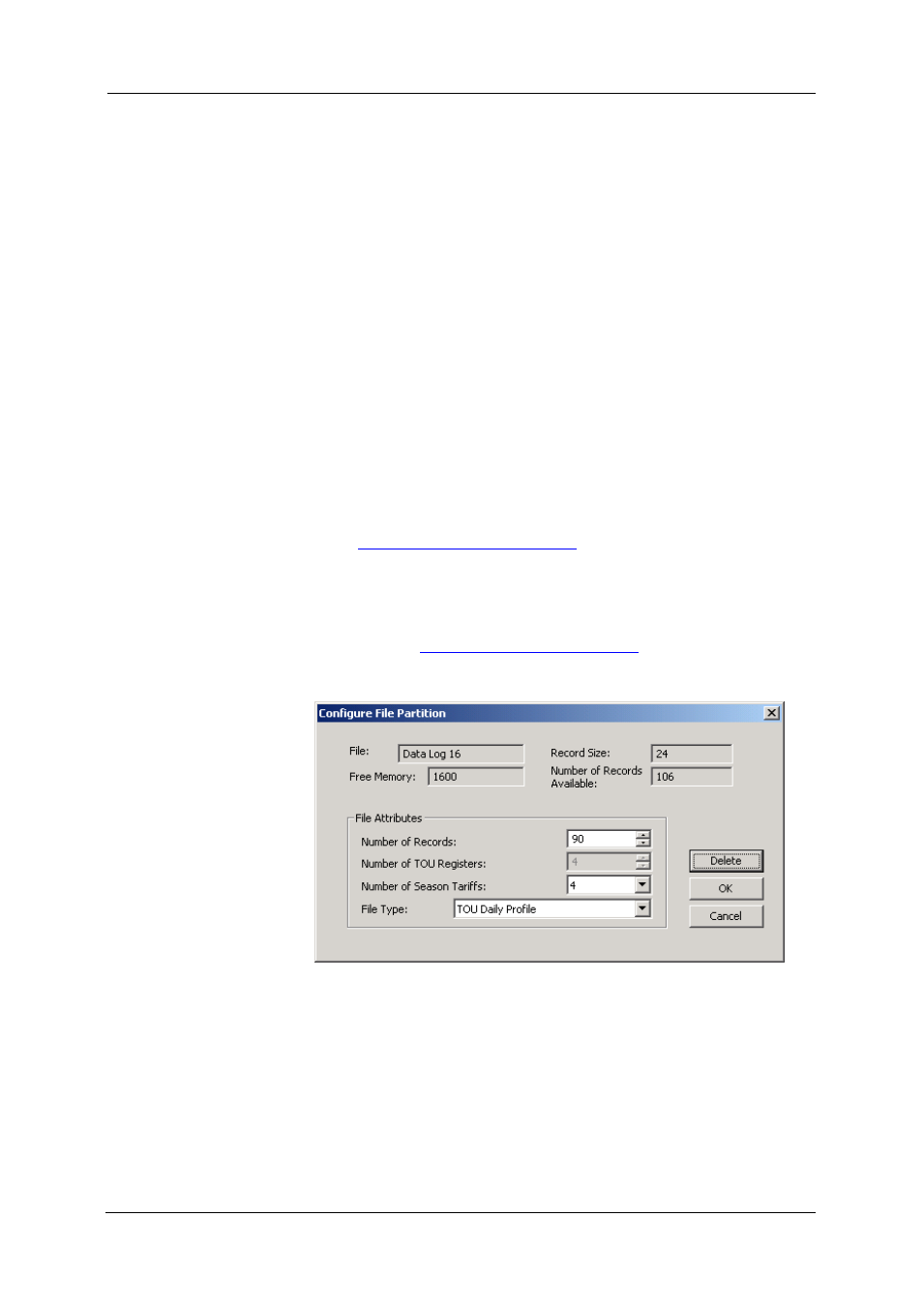

2. Double click on the Data Log#16 partition with the left
mouse button.
3. Select the TOU Daily Profile file type.
4. Select the number of season tariffs in your TOU schedule.
Add one additional parameter if you selected to record the
Summary (TOU total) registers as well.
5. Select the maximum number of records you want to be
recorded in the file assuming that a new record will be
added once a day.
6. Click OK and send your setup to the meter or save to the
meter database.
