‎Chapter 6 Device C O N T R O L A N D U P G R A D I N G
Updating T H E M E T E R C L O C K
PM130 PLUS Powermeter Series 107

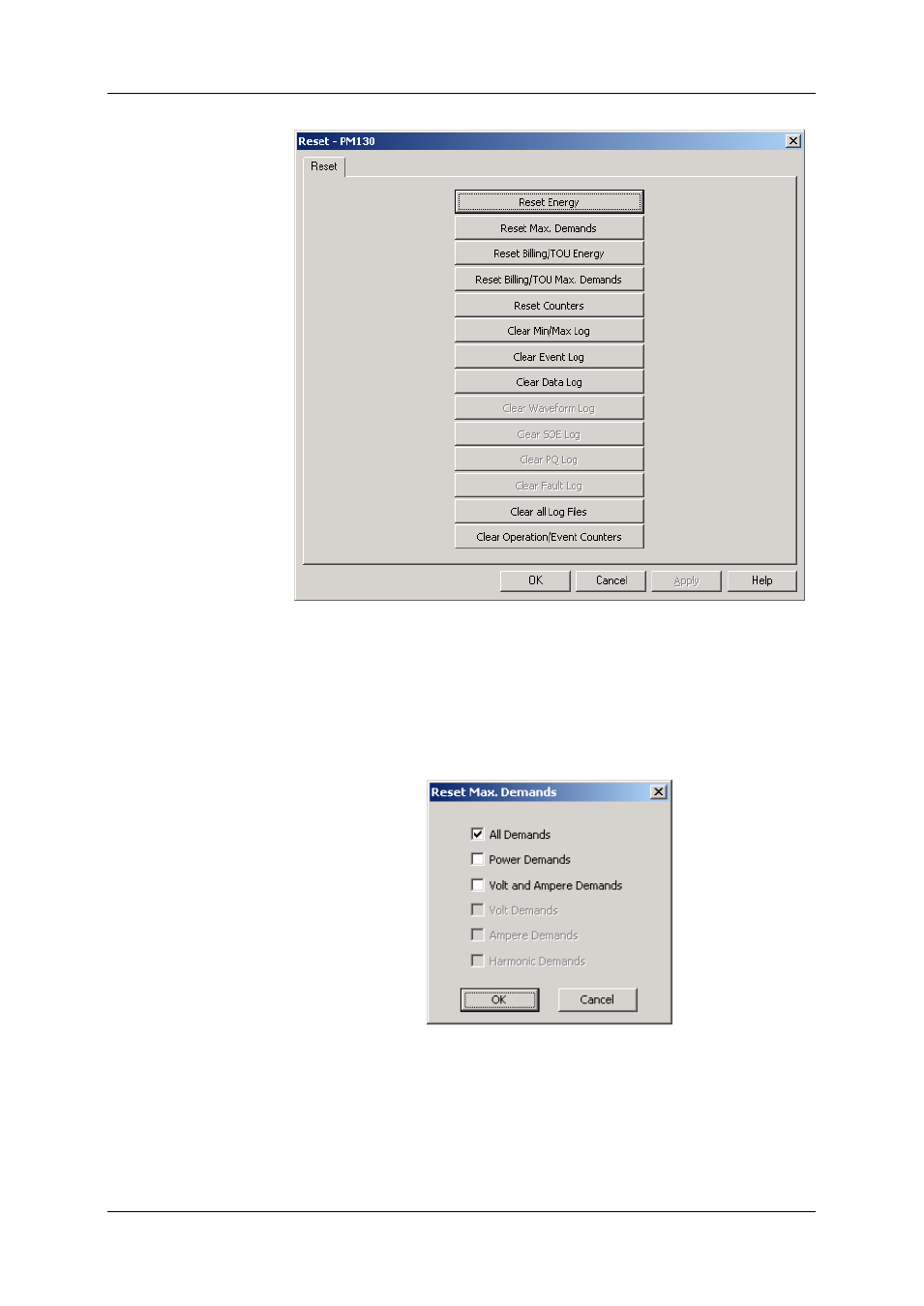

Figure ‎6-1: Reset Dialog
To reset the desired values or files:
1. Click on the corresponding button, and
then confirm your command.
2. If an entry has more than one target, you are allowed to select
targets to reset.
3. Check the corresponding boxes, and then click OK.
Figure ‎6-2: Reset Maximum Demands Dialog Box
6.2 Updating the Meter Clock
Using the Front Display
Select the rtc entry from the main menu.
