‎Chapter 5 Configuring T H E P M 1 3 0 P L U S
Configuring C O M M U N I C A T I O N P R O T O C O L S
PM130 PLUS Powermeter Series 105
Configuring DNP Class 0 Responses
The most common method of getting static object information from the
meter via DNP is to issue a read Class 0 request. The PM130 allows you to
configure the Class 0 response by assigning ranges of points to be polled
via Class 0 requests.
To view or build a DNP Class 0 response message:
1. Select Protocol Setup from the Meter
Setup menu and click on the DNP
Class 0 Points tab.
2. Select the object and variation type for a point range.
3. Specify the start point index and the number of points in the
range. Refer to the PM130 DNP3 Reference Guide for available
data points.
4. Repeat these steps for all point ranges you want to be included
into the Class 0 response.
5. Click Send to download your setup to the meter.

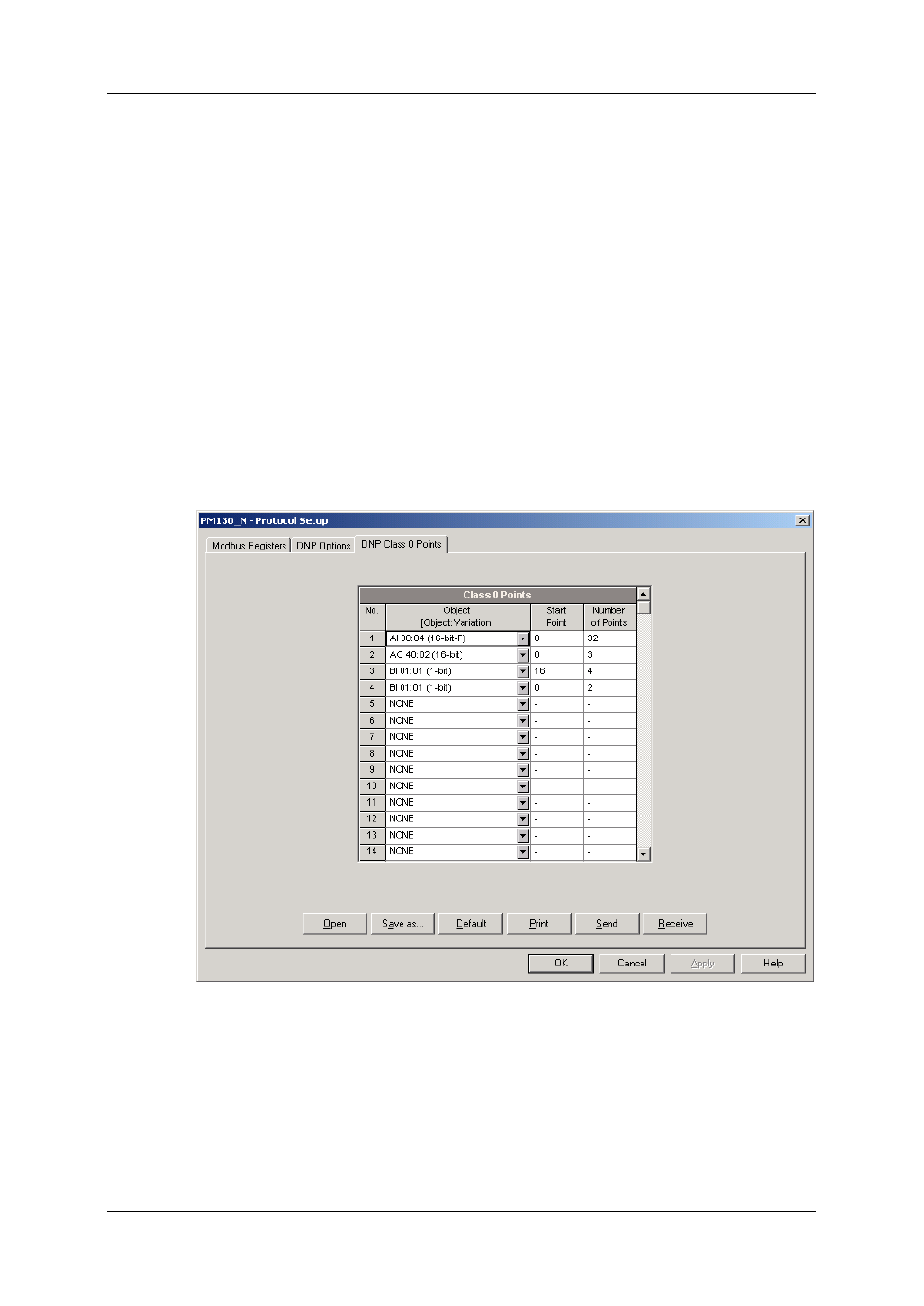

The factory-set Class 0 point ranges are shown in the picture below.
Figure ‎5-22: Protocol Setup Dialog Box – DNP Class 0 Points Tab
