‎Chapter 5 Configuring T H E P M 1 3 0 P L U S
General M E T E R S E T U P
PM130 PLUS Powermeter Series 79
Display
Label
Parameter Options Default Description
PuLS Pulse width 20-1000 ms 100 ms The actual pulse width is a multiple of the
1-cycle time rounded to the nearest bigger
value.
The pause time between pulses is equal to
the pulse width.
Src Pulse source NONE
Ac.Ei = kWh IMP
Ac.EE = kWh EXP
rE.Ei = kvarh IMP
rE.EE = kvarh EXP
rE.Et = kvarh TOT
AP.Et = kVAh TOT
NONE Links a pulse relay to the internal energy
pulse source. The relay must be set into
either pulse, or KYZ mode.
Unit Pulse rate,
kWh/Pulse
0.1-1000.0 1.0
kWh/Pulse
Defines the pulse weight in kWh units per
pulse
Generating Energy Pulses through Relay Outputs
To generate energy pulses through a relay output:
1. Set a relay to either pulse, or KYZ
mode, and then select a polarity (active
pulse edge) for energy pulses and a
pulse width.
2. Select a source energy accumulator and the pulse rate for your
output.
3. Send your new setup to the meter.
Configuring Analog Outputs
The meter can be ordered with two optional analog outputs with options
for 0-1mA, ±1mA, 0-20mA and 4-20mA current outputs.

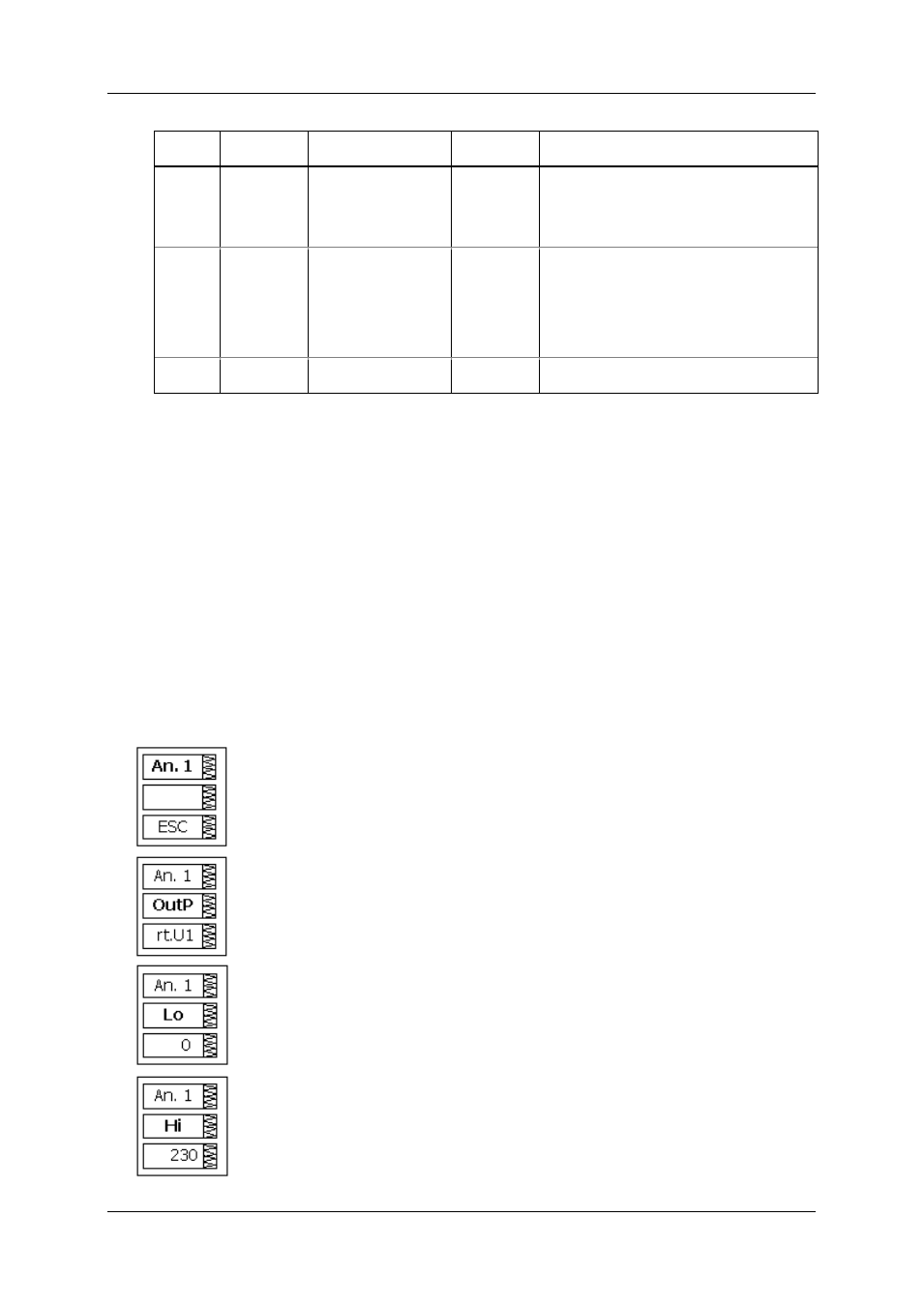

Using the Front Display
Select Aout from the main menu. This menu entry appears only if the
optional analog output module is plugged into the meter.
Use the UP and DOWN arrow buttons to scroll to the required analog
output.
To select the analog output option:
1. Press the SELECT button to activate
the middle window.
2. Use the UP and DOWN arrow buttons to scroll to the required
parameter.
To change the parameter value:
1. Press the SELECT button to activate
the lower window.
2. Use the UP and DOWN arrow buttons to select the required
value.
3. Press ENTER to confirm the new parameter setting or press
ESC to discard changes.
You are returned to the middle window
and can configure other parameters.
To store your new settings:
