‎Chapter 6 Device C O N T R O L A N D U P G R A D I N G
Upgrading D E V I C E F I R M W A R E
PM130 PLUS Powermeter Series 111

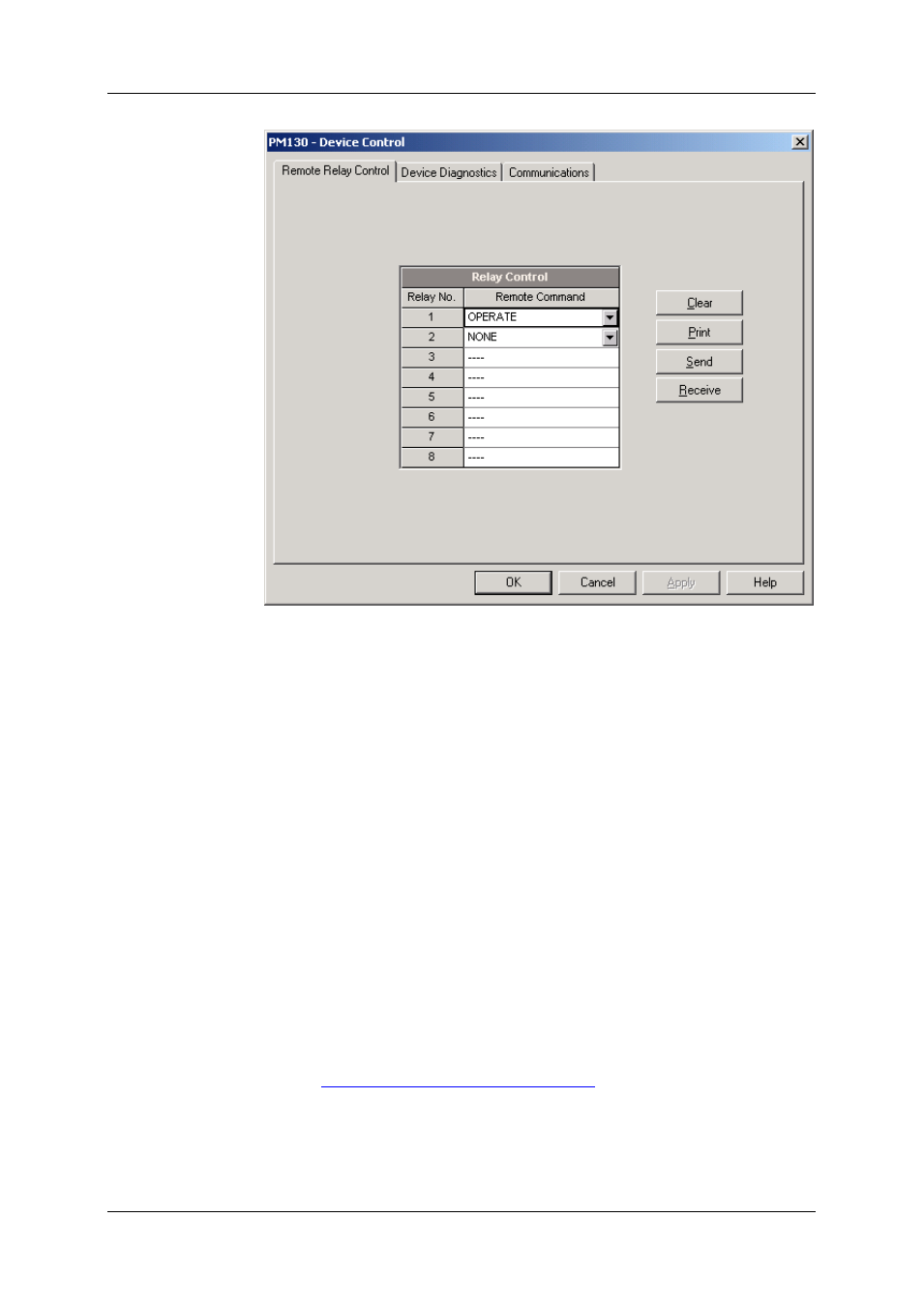

Figure ‎6-6: Device Control Dialog Box – Remote Relay Control Tab
To send a remote command to a relay:
1. Select a desired command in the Relay
Command box for a relay:
OPERATE – to operate a relay
RELEASE – to remove your remote
command, or to release a latched
relay
2. Click Send.
6.6 Upgrading Device Firmware
Your meter has upgradeable firmware. If you need to upgrade your
device, download a new firmware file to the meter through PAS.
Firmware can be downloaded via the Modbus RTU or Modbus/TCP protocol
through any communication port.
To download a new firmware file to your device:
1. Ensure that the communication port
you are connected through to the
meter operates in Modbus mode.
2. If you are connected to the meter through a serial interface, it
is recommended to set the port baud rate to 115,200 bps. See
Setting Up Serial Communication Ports on how to remotely
change the protocol and baud rate in your meter.
3. Ensure that the On-line button on the PAS toolbar is checked,
and then select Flash Downloader from the Monitor menu
and confirm downloading.
