‎Chapter 9 Viewing F I L E S Viewing T H E D A T A L O G
132 PM130 PLUS Powermeter Series

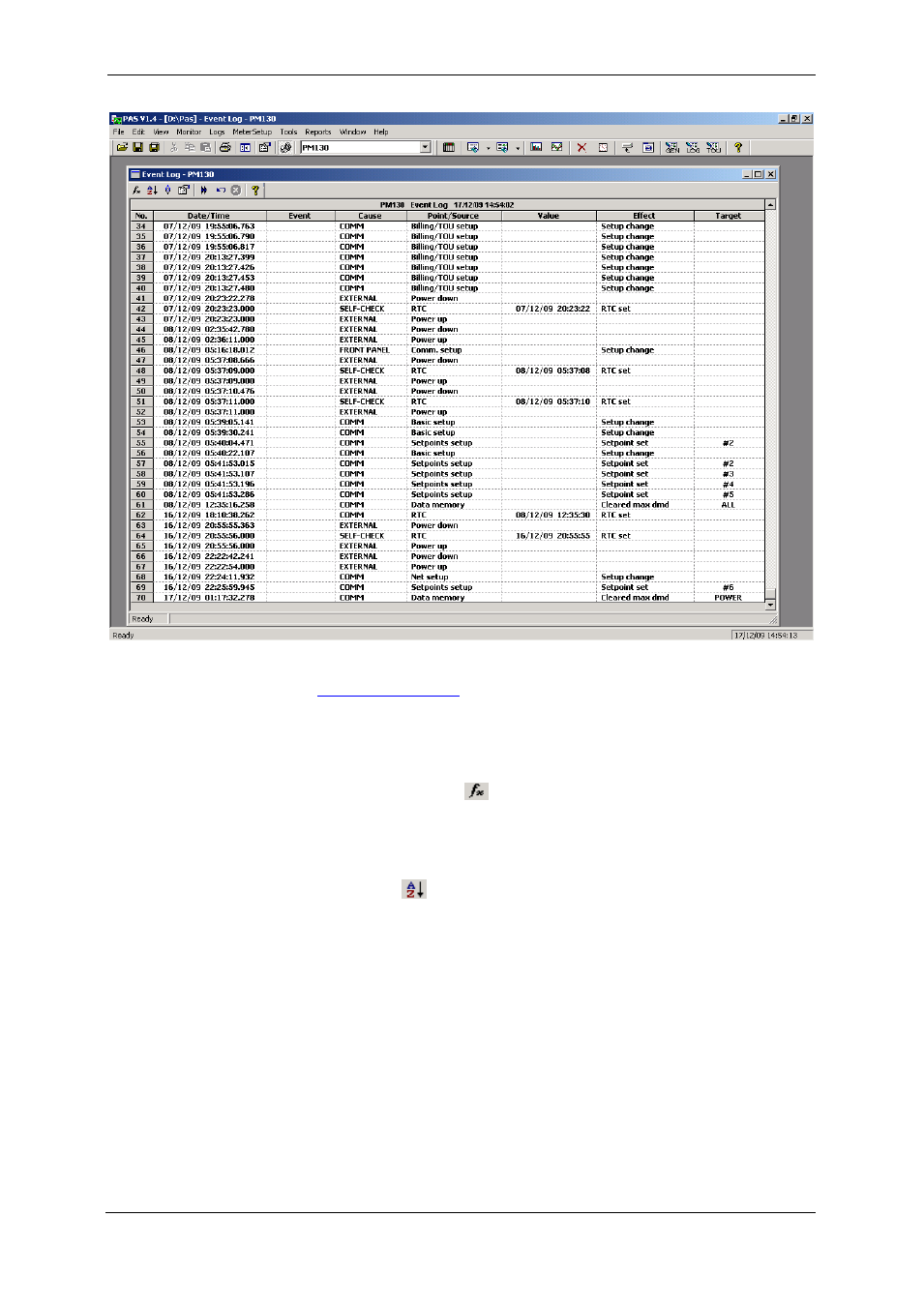

Figure ‎9-1: Event Log Window
See Working with Tables for more information on viewing options.
Filtering and Sorting Events
You can use filtering to find and work with a subset of events that meet
the criteria you specify.
Click on the Filter button , or click on the report window with the right
mouse button and select Filter.... Check the causes of events you want to
display, and then click OK. PAS temporary hides rows you do not want
displayed.
To change the default sorting order based on the date and time, click on
the Sort button
, or click on the report window with the right mouse
button and select Sort..., check the desired sort order, and then click
OK.
9.4 Viewing the Data Log
Data log files can be displayed in a tabular view, one data record per row,
or in a graphical view as a data trend graph.
