‎Chapter 3 Using F R O N T D I S P L A Y Using T H E M E N U S
PM130 PLUS Powermeter Series 53
Frequent hardware failures may be the result of excessive electrical noise
in the region of the device. If the meter continuously resets itself, contact
your local distributor.
A configuration reset may also be a result of the legal changes in the
meter configuration when other configuration data is affected by the
changes.
The diagnostics codes are stored in a non-volatile register, which is not
affected by loss of power and may be cleared via communications (see
Viewing and Clearing Device Diagnostics in Chapter 6) or from the meter
display.
To clear the meter diagnostics:
1. Select a diagnostics page.
2. While holding the SELECT button, press and hold the ENTER
button for about 5 seconds until the diagnostic message is
reset to none.
3.4 Using the Menus

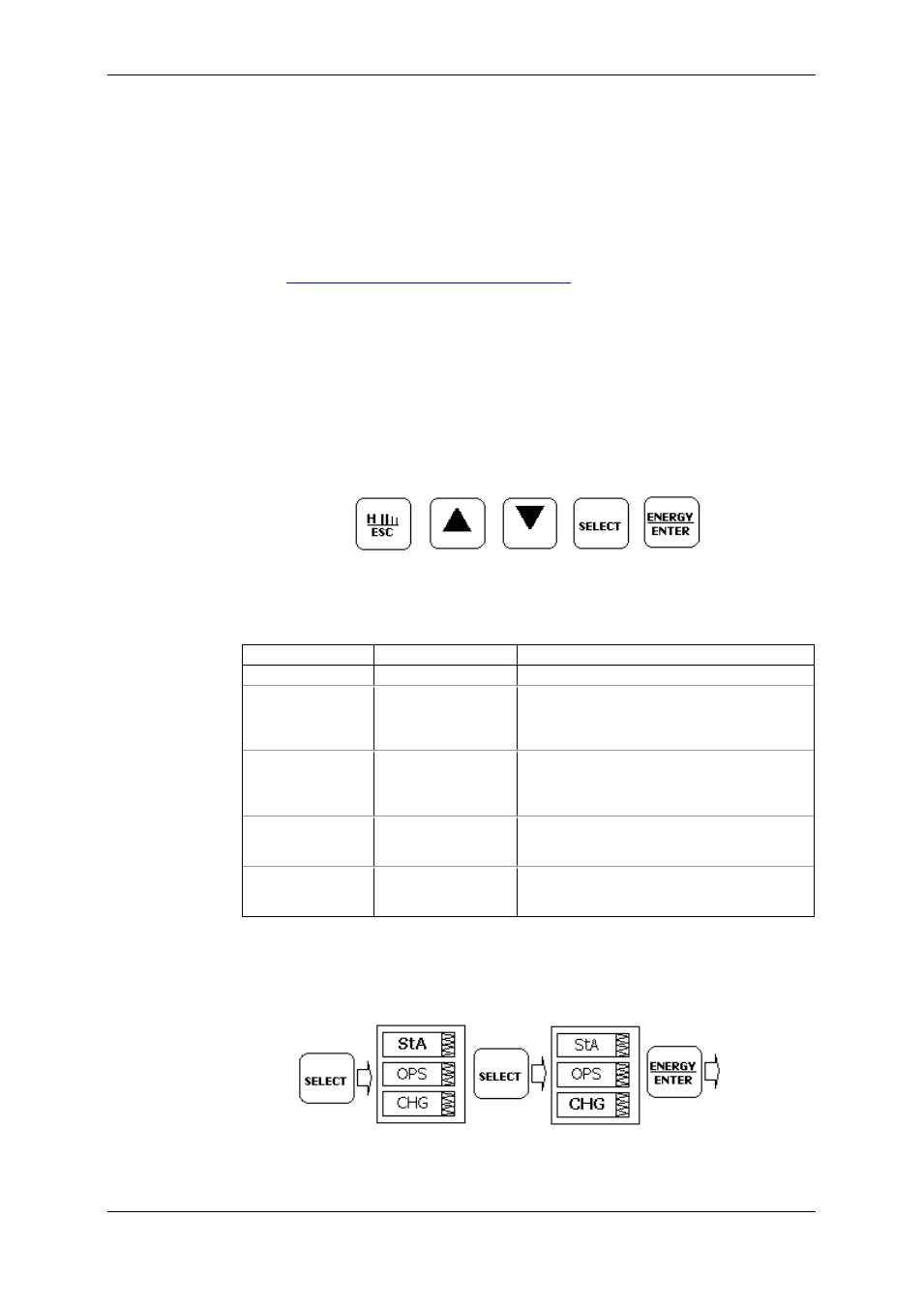

Navigation Buttons
The PM130 PLUS has a menu-driven setup. Press and release the SELECT
button to access the meter menus.
See the following table for button operations in menus.
Button Action Operations
SELECT Press and release Highlight (activate) a menu window.
UP Press and release Scroll through menu items forwards or
increment a number in the highlighted
window. Hold down the button for continuous
scrolling.
DOWN Press and release Scroll through menu items backwards or
decrement a number in the highlighted
window. Hold down the button for continuous
scrolling.
ENERGY/ENTER Press and release Confirm the selection and store the changed
item or perform an action indicated in a
highlighted window.
H/ESC Press and release Quit the highlighted window without saving a
selected item or return to the upper level
menu.
Selecting Menus
To access the menus, press and release the SELECT button. The primary
meter menu is displayed as shown in the picture below.
