Product description
Connections and interfaces
3
l
15 EDSMF2133IB EN 5.0
3.4 Connections and interfaces
12
345
6
7
8 2131
64
32
16
8
2
4
1
PROFIBUS DP
L
24V DC
+ _
ON OFF
Adresse
2133
01
5
2
4
3
7
6
EMF2133IB
2133PFB003 2102LEC007

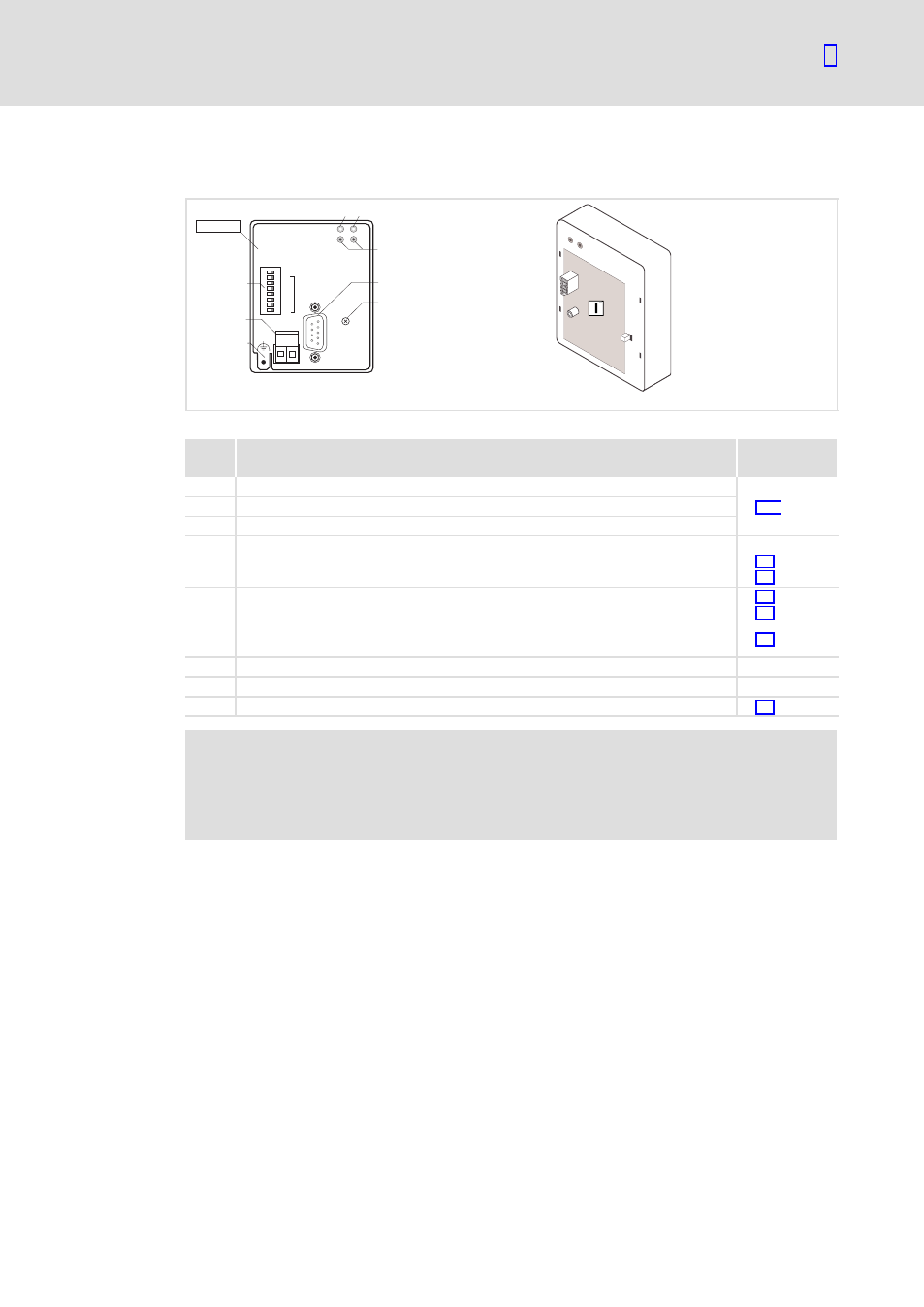

Fig. 3−1 EMF2133IB communication module (PROFIBUS−DP)
Pos. Description Detailed
information
0 Status of the voltage supply (green LED)
^ 112 1 Status of the PROFIBUS communication (yellow LED)
2 Operating status of the standard device (red/green LED)
3 DIP switches for setting the ...
l Compatibility with the PROFIBUS communication module EMF2131IB
l Station address
^ 37
^ 42
4 PROFIBUS connection (Sub−D socket, 9−pole) ^ 24
^ 27
5 Connection for external voltage supply
(Plug connector with screw connection, 2−pole)
^ 29
7 PE connection (only with 82XX)
6 Fixing screw
8 Nameplate ^ 13
)
Note!
Only for 820X and 821X:
If required, use an additional PE shield cable which avoids EMC−related
communication interference in surroundings with extreme disturbances.
