Diagnostics
LED status displays
9
l
112 EDSMF2133IB EN 5.0
9 Diagnostics

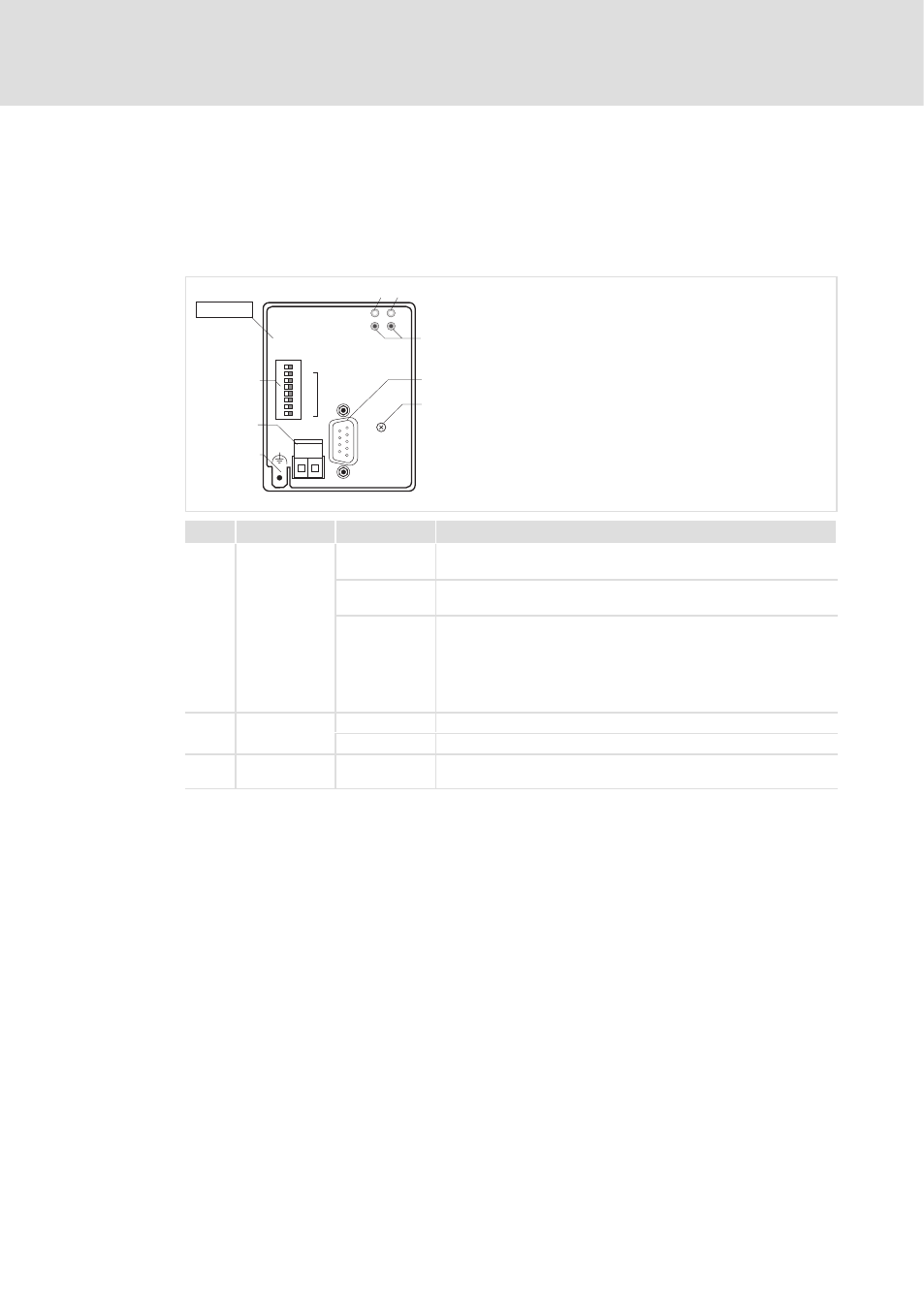

9.1 LED status displays
12
345
6
7
8 2131
64
32
16
8
2
4
1
PROFIBUS DP
L
24V DC
+ _
ON OFF
Adresse
2133
01
2
EMF2133IB
5
4 3
7
6
2133PFB003
Pos. Colour Status Description
0 green on The communication module is supplied with voltage and has a
connection to the drive controller.
off The communication module is not supplied with voltage. The
controller or the external voltage supply is switched off.
blinking The communication module is supplied with voltage, but is not (yet)
connected to the controller because ...
l the communication module has not been correctly attached to
the controller;
l data transfer to/from the controller is not yet possible (e.g.
controller is in initialisation mode).
1 yellow off The communication module is not yet initialised.
blinking Communication via the communication module has been set up.
2 Red / green The red and green drive LED indicates the operating status of the
standard device (see documentation of the standard device).
