32 Instructions for Use V 3.0 RevE – 04/2013
4. Instrument Setup
4.9 Connecting the power supply
The unit is dimensioned for:
100 to 240 V AC voltage at 50/60 Hz.
Connecting to power supply
• Make sure that the cov-
erslipping machine is
switched off:
The power switch (84) on
the front side must be in
the "0"= OFF position.

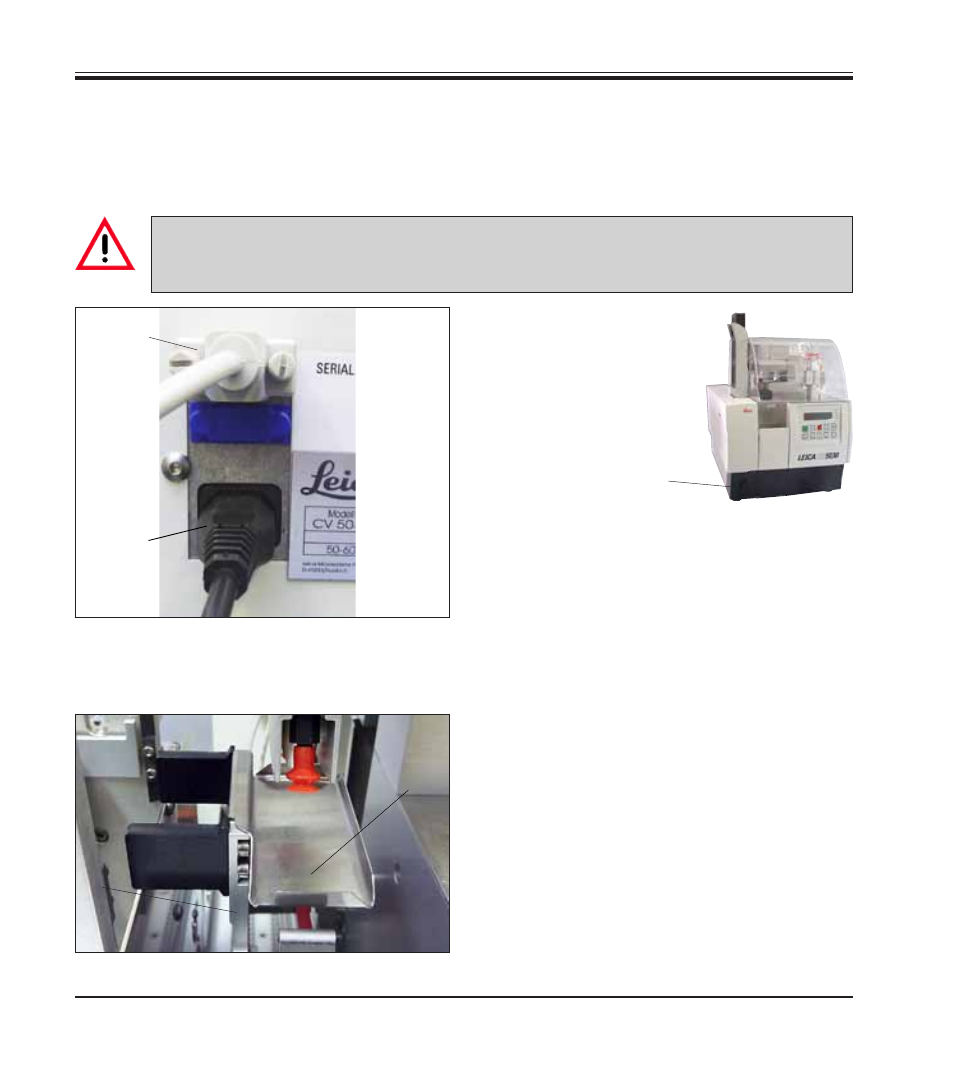

The electrical connection is on the left rear side
of the instrument ( Fig. 23 ).
• Insert a suitable power cable into the power
input socket (58).
• The serial interface (59) is intended for con-
necting to a Leica ST5020 (multistainer) if both
instruments are being operated together as a
workstation ( refer to Chapter 6 ).
58
59
Fig. 23
Cover slip catch tray
The cover slip catch tray (60) is used to hold
cover slips broken by the cover slip mount.
• Hook the cover slip catch tray into the slide
holder outfeed, inserting it towards the right
as shown in Fig. 24 (52); always ensure that it
is securely in place.
Fig. 24
4.10 Installing the accessories
60
52
84
The instrument MUST be connected to a grounded power socket.
Only use a suitable cable that is appropriate for the local power supply (plug must fit on-site
wall outlet).
