4. Instrument Setup
11
9
4
12
①

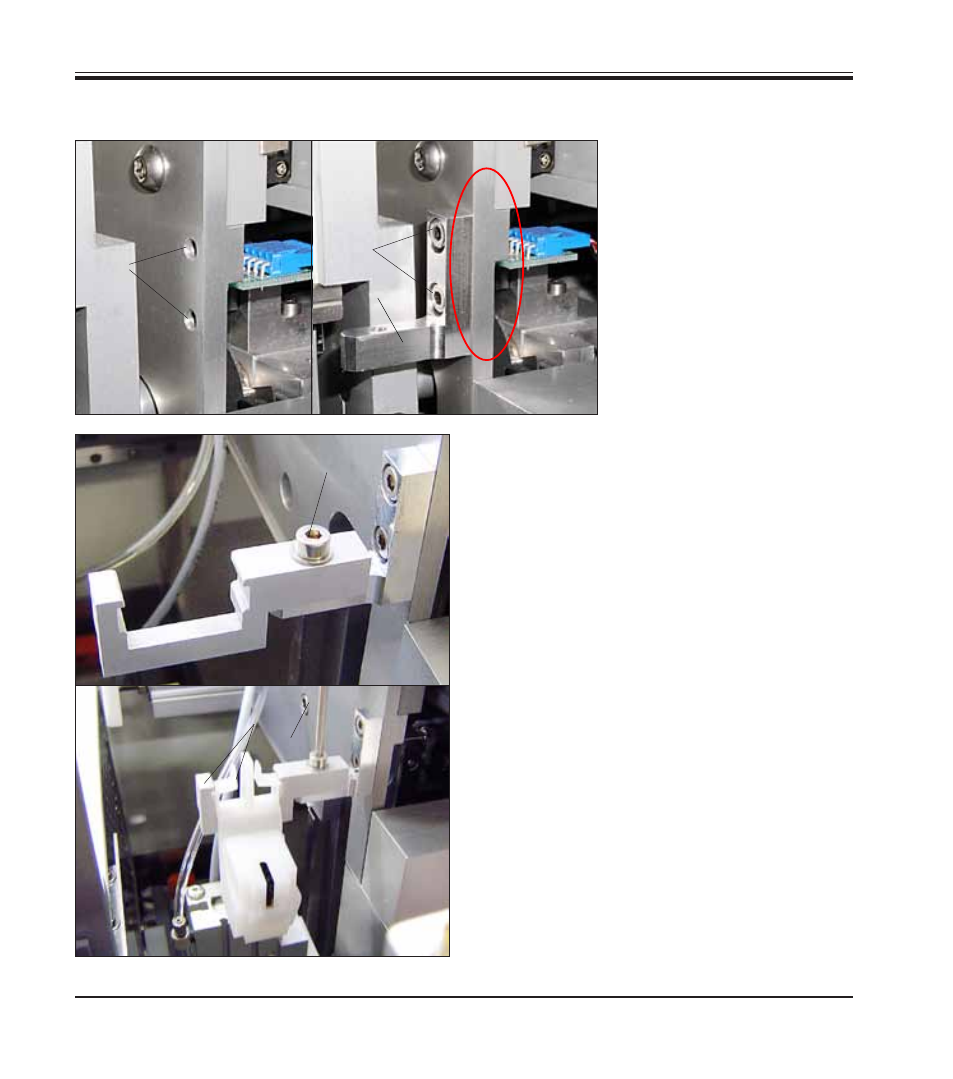

Assembly
To install the holder for the
dispenser needle cleaner, you
must first remove the transport
anchors for the Pick & Place
module (see Chap. 4.3.1, Fig. 5 ).
For installation, use the thread-
ed holes (11) of the transport
anchor ( see Fig. 19/1 ).
• First, fasten the mounting bracket (4) in the
bores (11) in the housing wall (12) using the
two screws (9) ( Fig. 19/2 ). Make sure that the
mounting bracket is parallel to the edge of the
housing wall ( ellipse, in Fig. 19/2 ).
• Then, fasten the holder (3) on the mounting
bracket using the screw (7) and shim (8).
• Insert the completely assembled dispenser
needle cleaner (1) into the holder as shown
in Fig. 20/2 . Press down to ensure that the two
lateral mounting clips (17) audibly engage in
the notches of the bracket.
3
7, 8
➁
1
6
➁
Fig. 19
①
17
Fig. 20
4.8 Dispenser needle cleaner (nozzle cleaner) (continued)
