24 Instructions for Use V 3.0 RevE – 04/2013
4. Instrument Setup

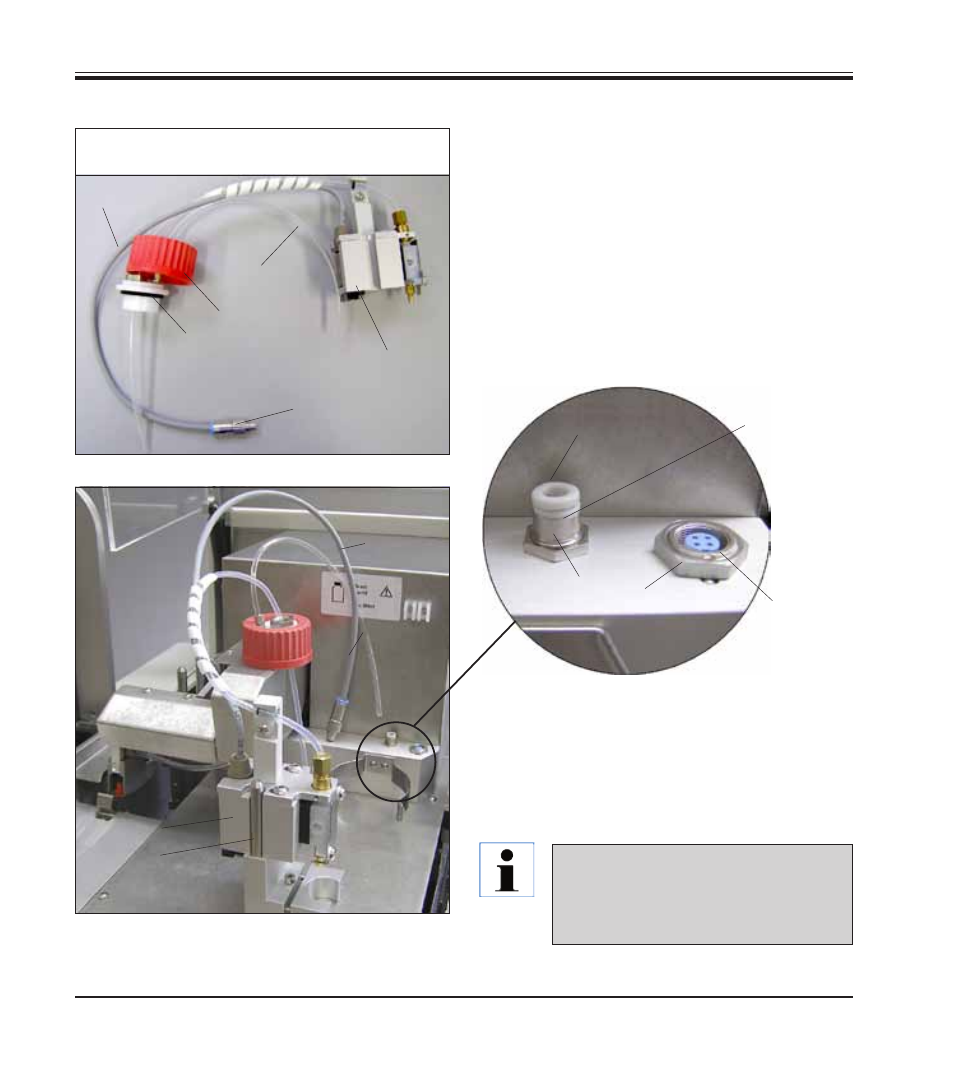

4.6 Installing the dispenser group
• Plug the cable (37) from the dispenser valve
into the socket (43) and screw it in place using
the knurled screw (38) ( see detail ).
• Screw the cover (40) onto the mountant bottle
( Fig. 10, 44) and place the mountant bottle into
the holder ( Fig. 10 ).
Fig. 8
43
42
41
36
37
38
35
Fig. 9
• Take the dispenser group ( Fig. 8 ) out of the
packaging.
• Insert the dispenser (35) into the holder (39)
for the prime position ( refer to Fig. 9 ).
• Insert the pressure hose (36) from the cover of
the mountant bottle (40) into the compressed
air output (41) up to the stop inside.
• To take the pressure hose back out, press the
white ring (42) down and pull out the pressure
hose.
40
34
37
39
Dispenser group
35
Detail: Com-
pressed
air output
and
Socket for
dispenser
control
47
Make sure that the blue shutter ring
is on the bottle neck and the O-ring
( Fig. 8 , 47) is attached to the dispensing
group ( Fig. 8, 40) correctly.
