25 Leica CV5030 – Robotic Coverslipper
4. Instrument Setup
• Select the dispenser needle to be used for cov-
erslipping from the scope of delivery ( Fig. 12 ).
• Insert the dispenser needle (46) into the dis-
penser needle holder (48) from below and turn
the dispenser needle by 45° until one corner
(47 in Fig. 12 ) is over the retaining plate (49)
( Fig. 11 ).
44

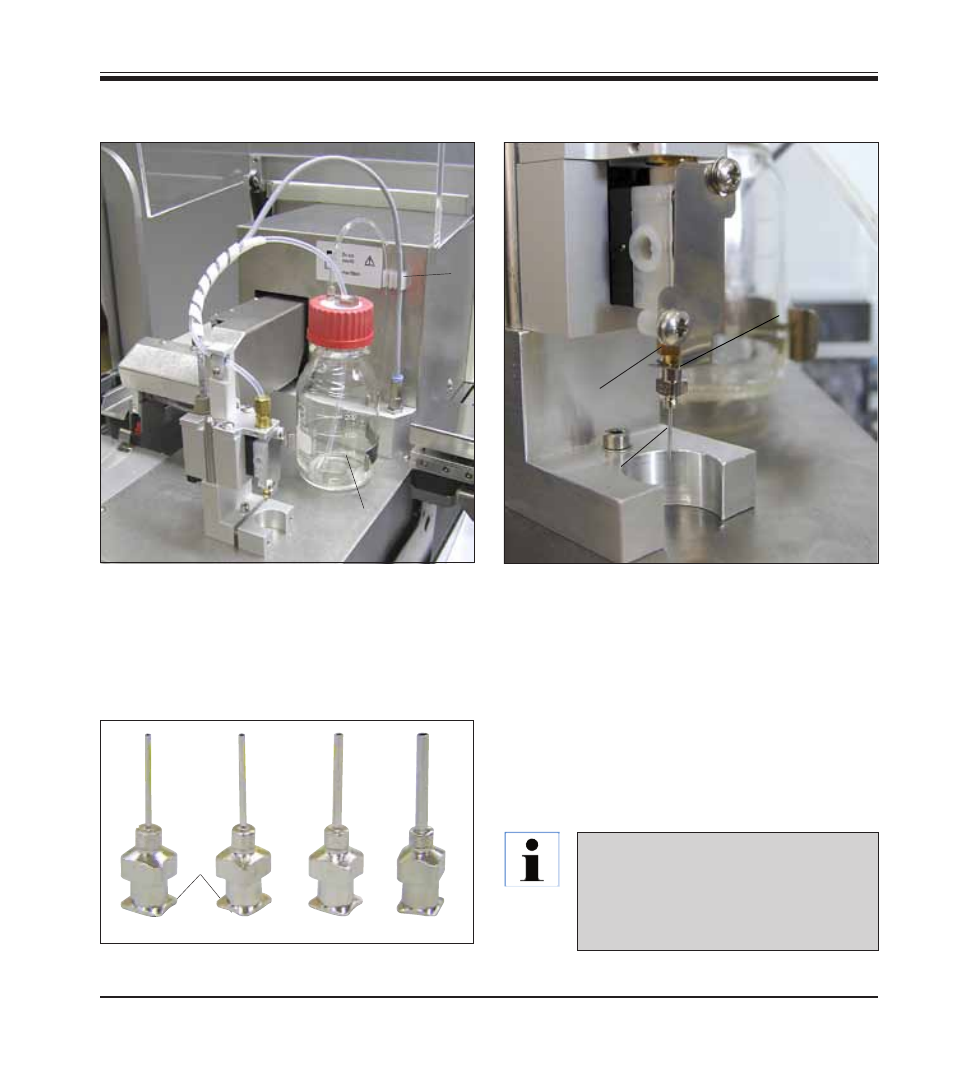

Inserting the dispenser needle ( Fig. 11 )
Fig. 11
4.6 Installing the dispenser group (continued)
Fig. 10
Fig. 12
47
Dispenser needles
• Finally, insert the cable and the air hose into
the holder (45) provided ( Fig. 10 )
45
48
46
49
21 G 16 G 18 G 20 G
Ensure correct positioning for the dis-
penser needle, since the dispenser
needle can loosen during the cover-
slipping operation. Leaks can create
bubbles during coverslipping.
