4. Instrument Setup
4.8 Dispenser needle cleaner (nozzle cleaner)
5
6 2
1 3
4
7
8
9
Parts
Remove the individual components from the
packaging and check them for completeness.
The following must be present:
• Container (1) with lid (10)
• Brush (2) (2x)
• Holder (3) with hexagon socket screw (7) and
shim (8)
• Mounting bracket (4) 2 hexagon socket screws
(9)
• Plastic pipette (5)
• No. 3 Allen key (6)
10

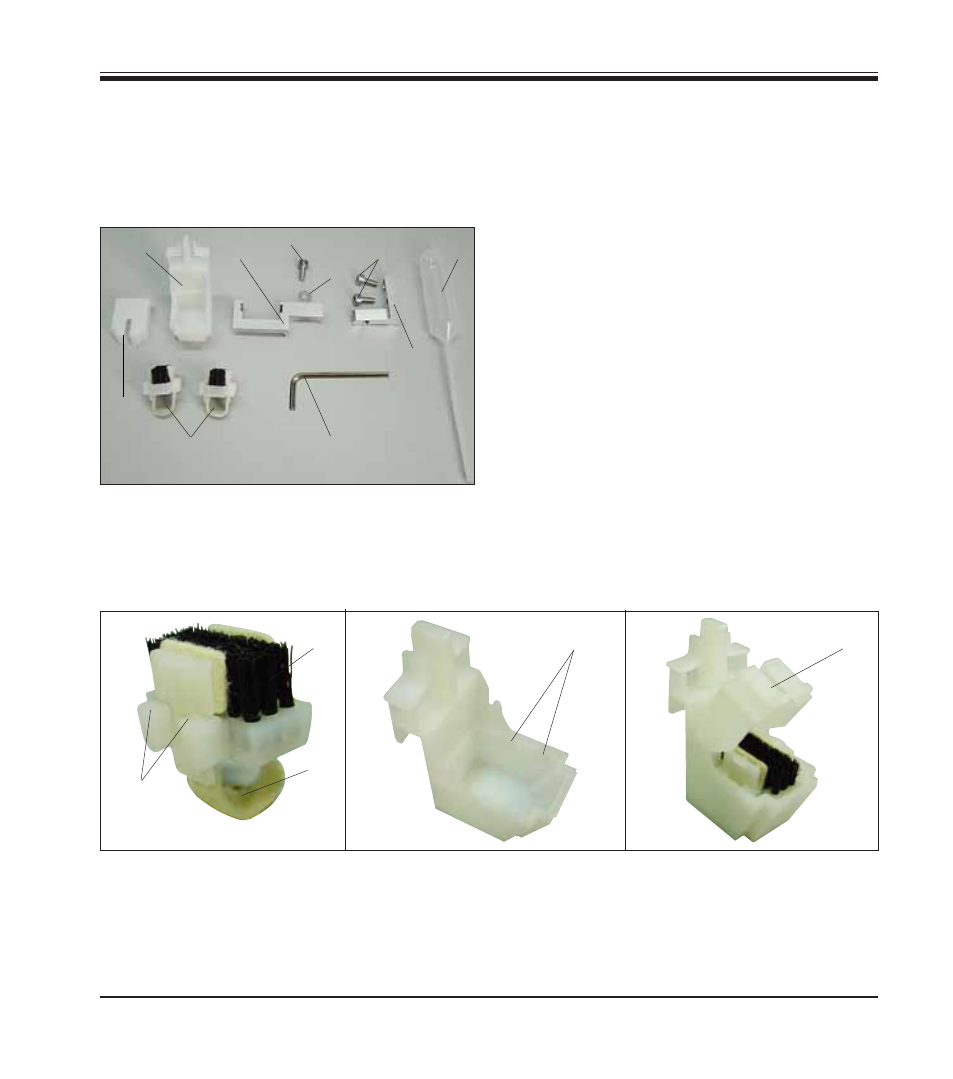

Fig. 17
Assembly
The dispenser needle cleaner consists of a container (for the cleaning fluid) into which a brush is
inserted. The brush is moistened with solvent using felt strips (19).
15
2
16 10
① ➁ ③
• Now, attach the lid (10) and push it down until
it clicks into place.
• Insert the brush (2) into the container so that
the lateral guides (15) (2 each on the left and
right) fit into the notches (16) provided.
Fig. 18
19
The dispenser needle cleaner is used to clean
excess coverslip mountant off of the dispenser
needle after each specimen slide processed.
