1-87
Circle definition
Code 1X11, ppp, row, column, C ppp bbbb, radius
Setting 1X11 1X11 fixed
ppp Dot pattern 000 – 011
row Circle center row address 0000 – 9999
column Circle center column address 0000 – 0398
C Specifies circle
ppp 001 fixed
bbbb 0001 fixed
radius Radius 0000 – 0398
Units 0.01 inch
Function Draws circle with specified center and radius and dots inside with
specified pattern.

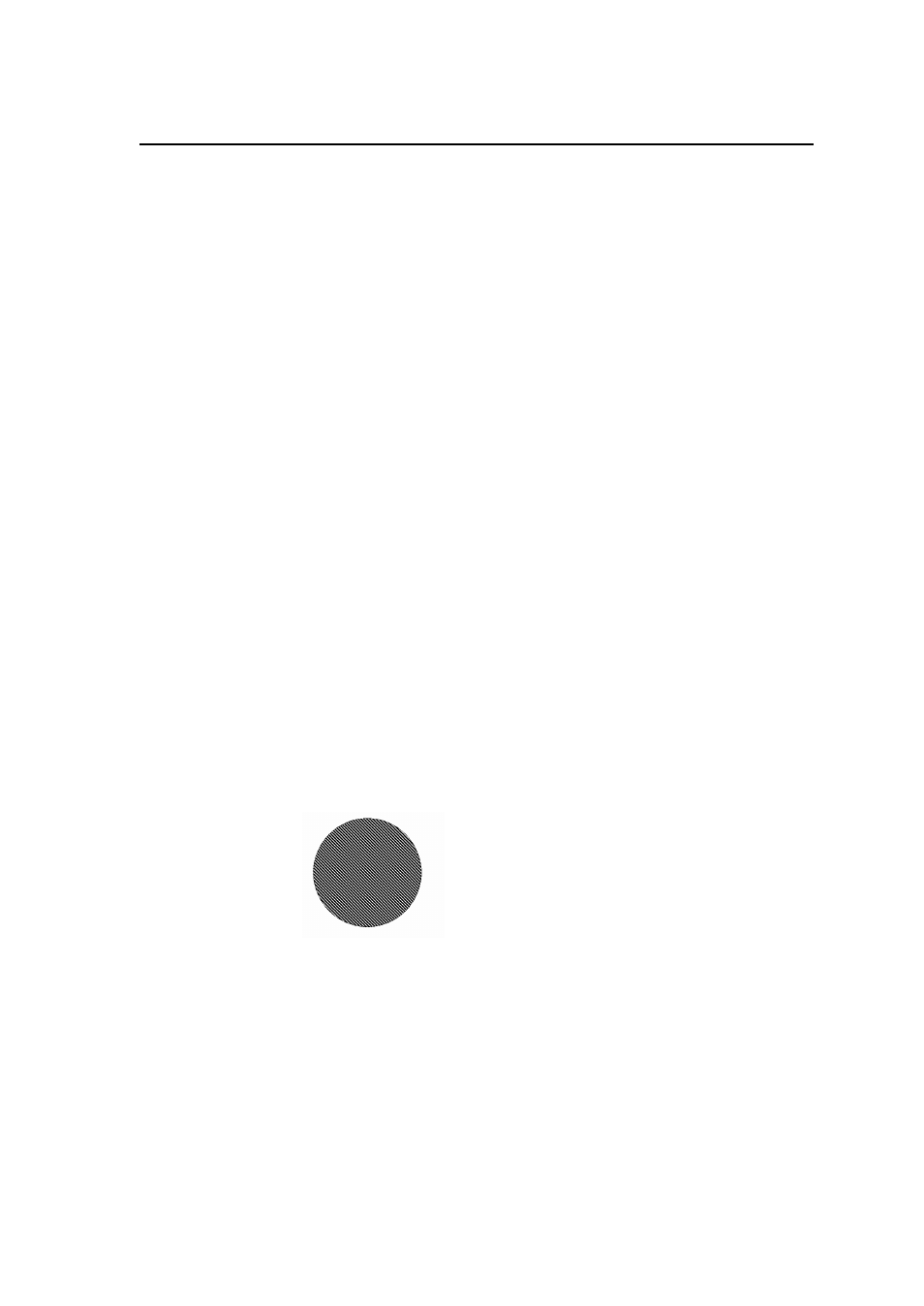

Example Input data below represents that circle with center of row 0.50
inch/column 0.50 inch and radius of 0.30 inch is drawn and inside is
dotted with pattern 10 (left diagonal lines).
Input data [02] n Sets units to inch
[02] L Starts label format mode
D11 Sets pixel size
1X11 010 0050 0050 C 001 0001 0030 Sets circle
E Ends label format mode and
prints
