Polygon definition

Code

1X11, ppp, row, column, P ppp bbbb row, column, row, column

Setting

1X11

1X11 fixed

ppp

Dot pattern 000 – 011

row

1st point row address 0000 – 9999

column

1st point column address 0000 – 0398

P

Specifies polygon

ppp

001 fixed

bbbb

0001 fixed

row

2nd point row address 0000 – 9999

column

2nd point column address 0000 – 0398

row

3rd point row address 0000 – 9999

column

3rd point column address 0000 – 0398

After this, repeats row and column

Units

0.01 inch (0.1 mm)

Function

Draws polygon with specified point and dots inside with specified
pattern.

Dot pattern

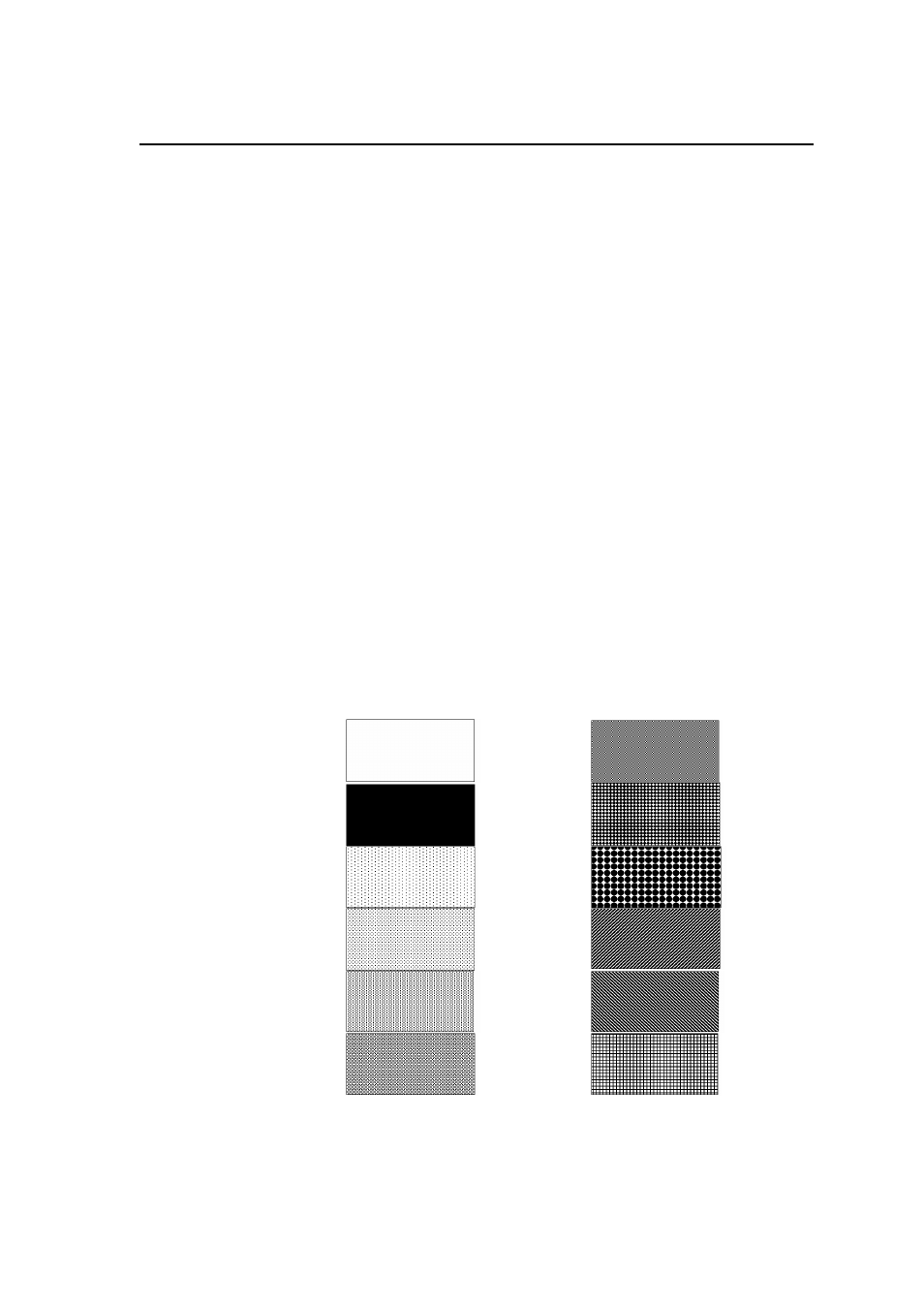

12 dot patterns from 0 – 11 are shown below.

000

(0%)

006

(50%)

001

(100%)

007

(62.5%)

002

(6.25%)

008

(69.14%)

003

(12.5%)

009

(62.5%)

004

(25%)

010

(62.5%)

005

(37.5%)

011

(43.75%)
