1-109

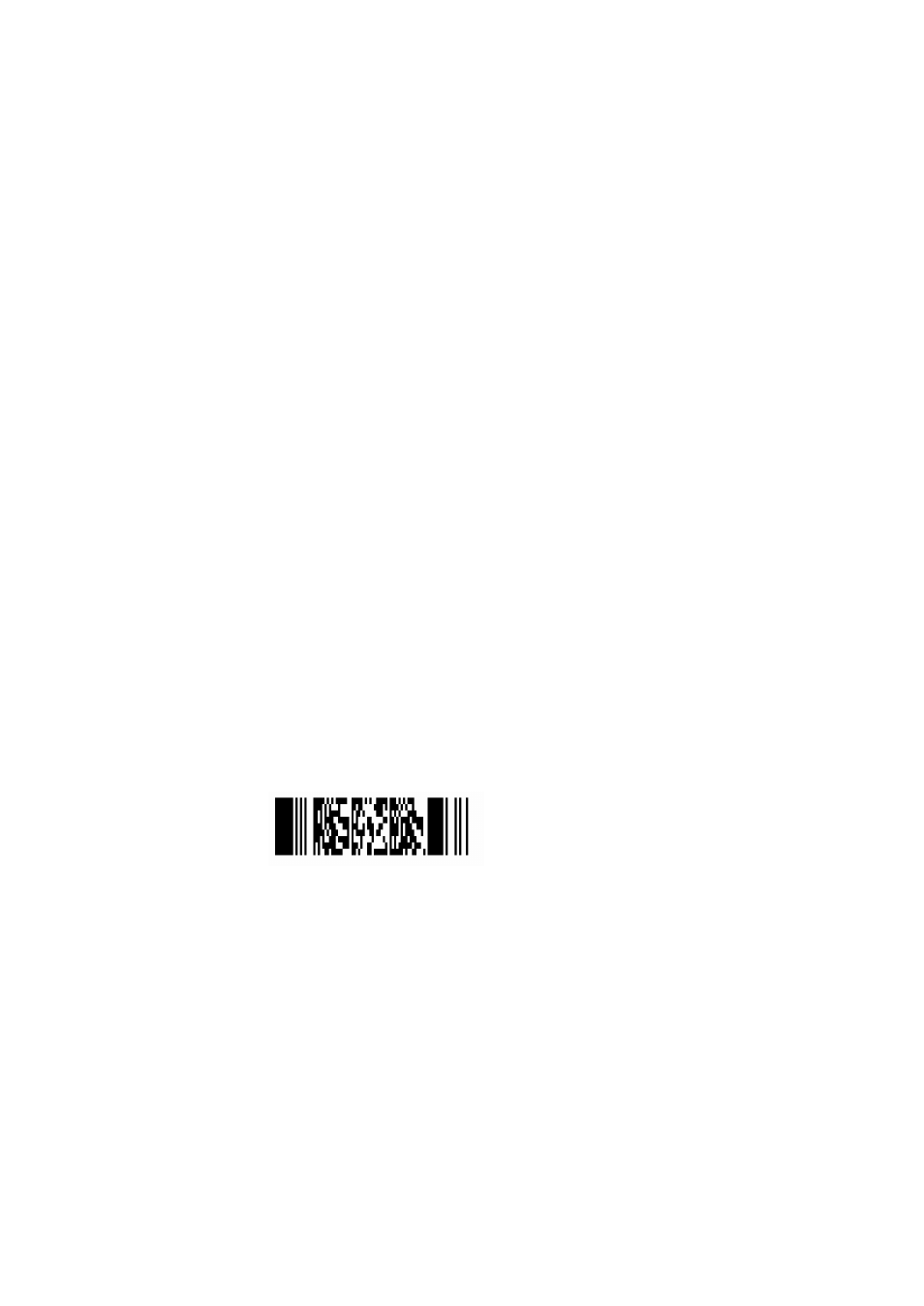

Bar code Z / z: PDF-417
This is a two-dimensional bar code and variable in length.
Barcode font type
Z :Data amount should be set by 4-digit bytes
z :Data amount is automatically set.
Input data consists of the following seven elements:
4-digit-- Amount of data to be used when U is Bytes
following this value should be specified.
(Including 8 bytes for Truncate flag and
Security level and Ratio and Height and
Width.)
When z is specified, the field is blank.
1-digit-- Truncate flag: T (omission type) or F
(standard type)
1-digit-- Security level: 0 - 8
2-digit-- Ratio (numerator 1st digit and denominator
2nd digit in fraction): 00 - 99
Default: 00 (ratio of 1: 3)
2-digit-- Height: 03 - 90
Default: 00
2-digit-- Width: 01 - 30
Default: 00
Variable in length Data character string
